Icom IC-7100 Advanced Instructions

6
FUNCTIONS FOR TRANSMIT
6-14

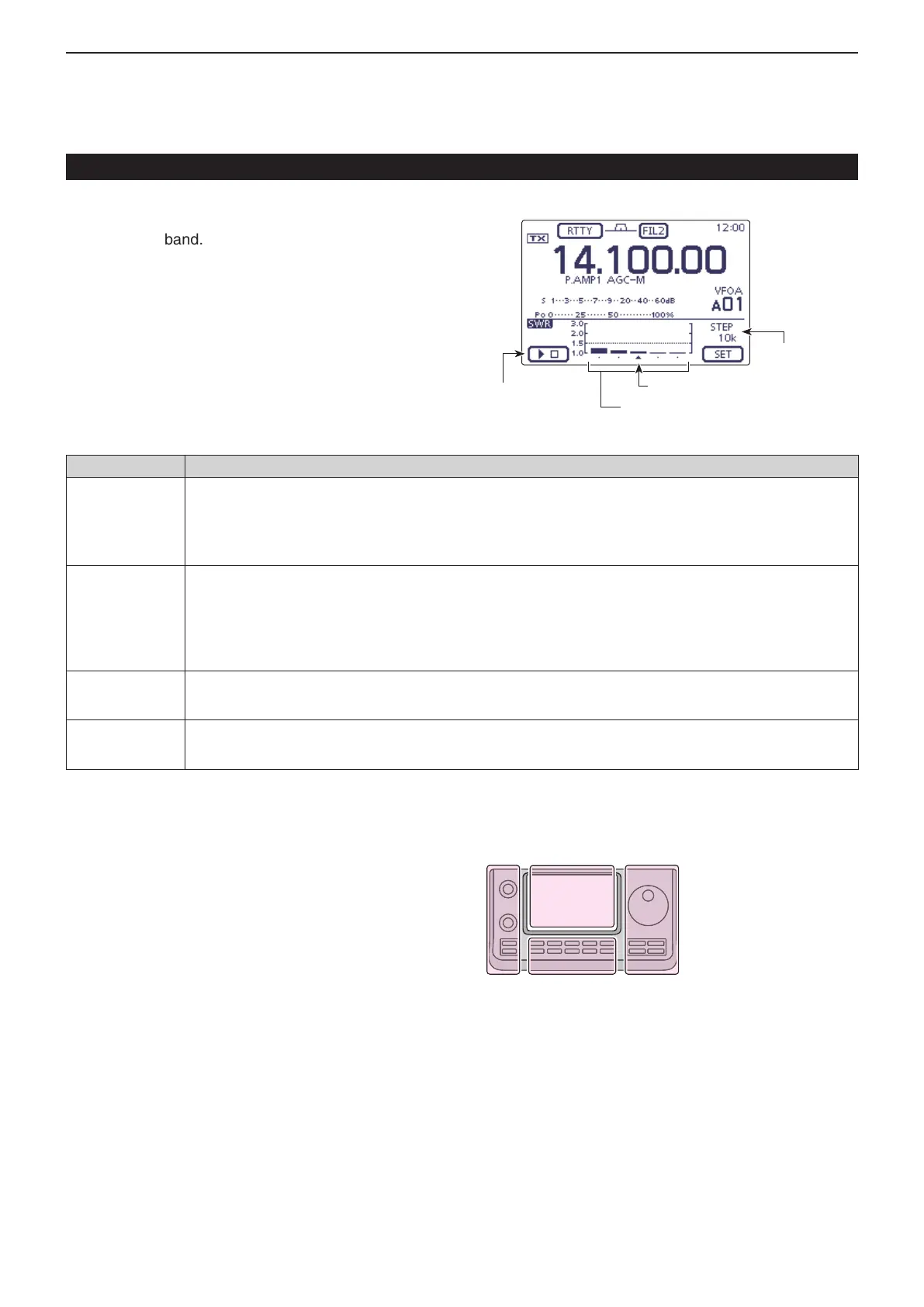

D Plot measurement
Plot measurement allows you to measure the SWR
over an entire band.
Measuring SWR (Continued)
INDICATOR DESCRIPTION
Measurement
start icon
Touch [](D) to start the measuring. While measuring, “u” is displayed. The measured fre-
quency is displayed by the frequency display mark, “∫,” below the graph bar. While measuring
SWR, the frequency cannot be changed. When quieting the SWR measurement, the frequency
returns to the previous frequency before starting the SWR measurement.
Graph bar
display
Each vertical dot indicates the SWR value, and horizontal bar indicates the number of measure-
ment steps. The measurement steps can be selected the “Number of Graph Bar” item of the
“SWR GRAPH SET” screen.
SWR graph displays SWR 1 to 3 vertically, and many dots indicates the worse SWR.
(SWR is displayed 1.0=1 dot, 1.5=10 dots, 2.0=19 dots and 3.0=28 dots.)
Frequency
display mark
Displays the relative position of the measurement frequency.
SWR measur-
ing step
Displays the selected SWR measuring step.
Set the “Measuring Step” item of the “SWR GRAPH SET” screen.
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
SWR measuring
step
Shows starting
measurement
Shows the graph bar
Frequency display mark
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
