D-STAR OPERATION <ADVANCED>
9-45
A Your (destination) call sign can be manually pro-
grammed.
The Your (destination) call sign is set to “TO,” you can
make a call to a station, even if you don’t know where
the station is currently located.
Up to 200 Your call signs can be programmed.
Push q
SET
(C) to enter the Set mode.
Touch the “Your Call Sign” item of the “DV Memory” w
Set mode.
DV Memory > Your Call Sign
• If the specied item is not displayed, touch [∫] or [√](D)
one or more times to select the page
.
• The your call sign list are displayed.
Touch the list for 1 second. e
Touch “Add” to enter the edit mode. r
Touch “NAME” to enter the name edit mode. t
• A cursor appears and blinks.
Touch the desired block one or more times to select y
the desired character or symbol.
(Example: T)
Selectable characters and symbols
A to Z, a to z, 0 to 9, ! # $ % & \ ? " ’ ` ^
+ – ✱⁄ . , : ; = < > ( ) [ ] { } ¦ _ ¯ @ (space)
• Touch “AB⇔12” to toggle between the Alphabet input
and Number input mode.
• Touch [CLR](D) to delete the selected character, symbol
or number.
• Touch [ [AB] ](D) to open the Input mode selection win-
dow.
• Touch “” to input a space.
Touch [ u f](D) to move the cursor backwards, or
touch [g](D) to move the cursor forwards.
Repeat steps i y and u to enter a name of up to 16
characters, including spaces.
(Example: First, T, then O, then M.)
After entering the name, touch [ENT]( o D).
• The programmed name are stored to the your call sign
list, and the display returns to the YOUR CALL SIGN
EDIT screen.
☞ Continued on the next page

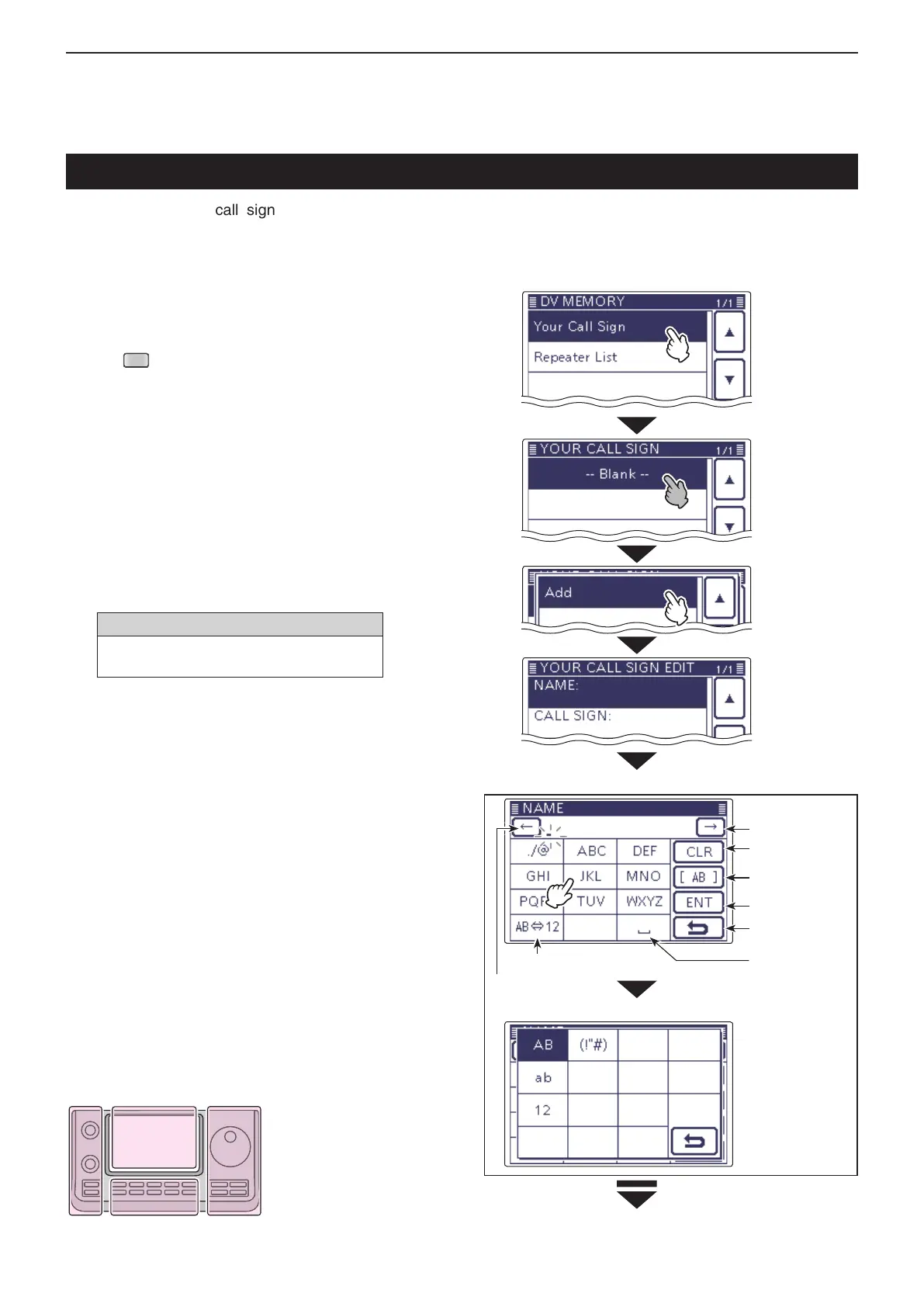

Example: Program “TOM/JM1ZLK” to the Your Call
Sign memory.
Your (destination) call sign programming
Touch the list
for 1 second.
Touch
“Your Call
Sign.”
Touch “Add.”
Touch
“NAME.”
Input mode selection screen
Name edit screen
Input a space
Move the cursor
Move the cursor
Delete a character
Select an input mode
Enter
Cancel edit
Open an input
mode window
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
L
eft
R
ight
C
enter
D
isplay
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
