Icom IC-7100

10
GPS/GPS-A OPERATION
10-16

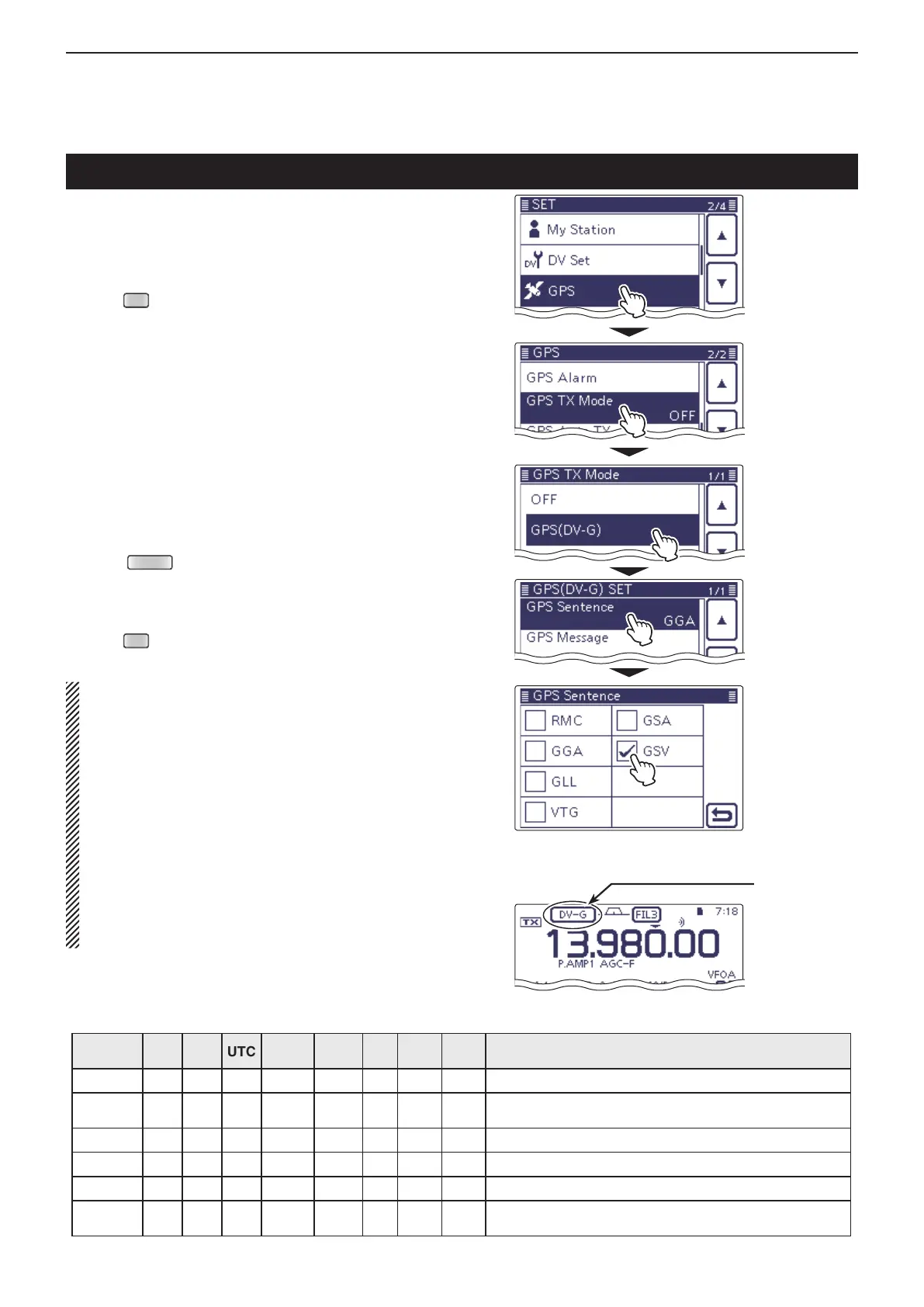

Transmitting GPS data
Set a GPS sentence to transmit GPS data in the DV
mode.
D GPS data sentence setting
Push q
SET
(C) to enter the Set mode.
Touch the “GPS TX Mode” item of the “GPS” Set w
mode.
GPS > GPS TX Mode
• If the specied item is not displayed, touch [∫] or [√](D)
one or more times to select the page.
Touch “GPS(DV-G).” e
Touch “GPS Sentence” to display the “GPS Sen- r
tence” screen.
Touch the desired GPS sentence. t
• Touching “  ” cancels the setting.
• The selectable GPS sentences are RMC, GGA, GLL,
VTG, GSA and GSV. The GGA sentence is set to ON as
the default GPS sentence.
• Push
QUICK
(C), and then touch [Default] to set the GPS
sentence as the default.
Repeat step y t to set the GPS sentence.
• A maximum of 4 GPS sentences can be set at a time.
Push u
SET
(C) to exit the Set mode.
NOTE:
• Set the GSV sentence to OFF when sending the GPS
message to conventional digital transceivers (IC-2820H,
IC-E2820, ID-800H, IC-91AD, IC-E91, IC-V82, IC-U82,
IC-2200H, ID-1).
The GSV sentence is incompatible with them.
• If “Manual” is selected in the GPS select, the GPS sen-
tence is artificially selected and transmitted, according to
the manually set position data in “Manual Position.”
GPS > GPS Set > Manual Position
• Please note that if “GPS Auto TX” is set to any other
setting than “OFF,” the data is automatically transmitted
according to the set time.
GPS > GPS Auto TX
Sentence
Lon
/Lat
Alt UTC
Date
(UTC)
Status
2D
/3D
COG
(True)
SOG
(knot)
Others
RMC
✔ ✔ ✔ ✔
Mode Indicator,
GGA
✔ ✔ ✔ ✔
Number of satellites in use, HDOP, Geoidal separation,
Age of Differential GPS data
GLL
✔ ✔ ✔
Mode Indicator
VTG
✔ ✔
COG (Magnetic north), SOG (km/h), Mode Indicator
GSA
✔ ✔
ID numbers of satellites used in solution, PDOP, HDOP, VDOP
GSV
Total number of sentences, Sentence number, Total number of sat-
ellites in view, Satellite information (ID, Elevation, Azimuth, S/N)
• Contents of GPS sentence
• The display while transmitting GPS (DV-G)
When transmitted, the set GPS sentence is transmitted.
“DV-G” appears
if "GPS (DV-G)"
is selected in the
DV Mode.
Touch [GPS].
Touch
“GPS TX Mode.”
Touch
“GPS(DV-G).”
Touch
“GPS Sentence.”
Touch the desired
sentence to set.
