FUNCTIONS FOR TRANSMIT
6-19
D Transmitting DTMF code (Direct Input)
Select the desired frequency band. (p. 3-6) q
On the Mode selection screen, select the FM or DV w
mode. (p. 3-17)
• The DTMF encoder can be used in the FM or DV mode.
Push e
MENU
(C) one or more times to select the
“M-3” screen (M-3 menu).
• If your are operating in the DR mode, push
MENU
(C)
once or twice to select the “D-2” screen (D-2 menu).
Touch [DTMF]( r D) to display the DTMF mode.
• The “DTMF” screen is displayed.
Touch [SEND]( t D) to open the DTMF send window.
Touch “Direct Input” to display the “DTMF DIRECT y
INPUT” screen.
Touch the u number or character to enter the desired
DTMF code.
When all digit are set, touch [TX]( i D) to transmit the
code.
• The transceiver automatically transmits the DTMF code.
• While transmitting, touch [SEND], [EDIT] or [SET](D)
or push
MENU
(C),
SET
(C) or
XFC
(R), cancels the
transmission.
• After transmitting, transceiver returns to the “DTMF”
screen.
DTMF memory encoder (Continued)
The DTMF code scrolls to the
left edge, and disappears every
one digit when the each digit is
sent.
Highlighted
while transmitting
• While transmitting
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)

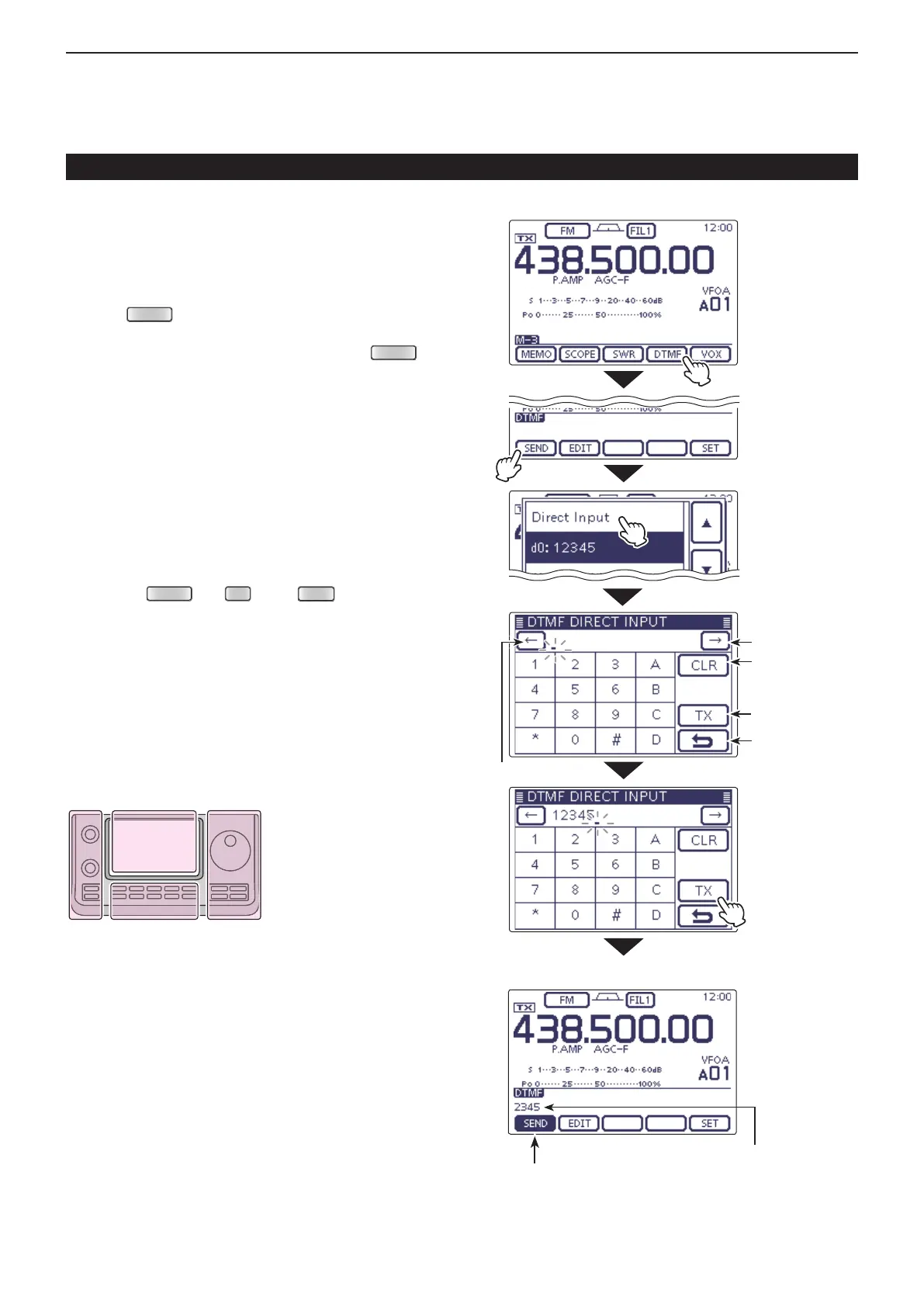

Move the cursor
Move the cursor
Delete a number
Transmit the code
Cancel edit
Touch [TX]
Touch [SEND]
Touch [DTMF]
Touch
“Direct Input”
Previous view
