Icom IC-7100 Advanced Instructions

6
FUNCTIONS FOR TRANSMIT
6-9
Split frequency operation (Continued)
D Direct frequency shift input
The frequency shift can directly be entered.

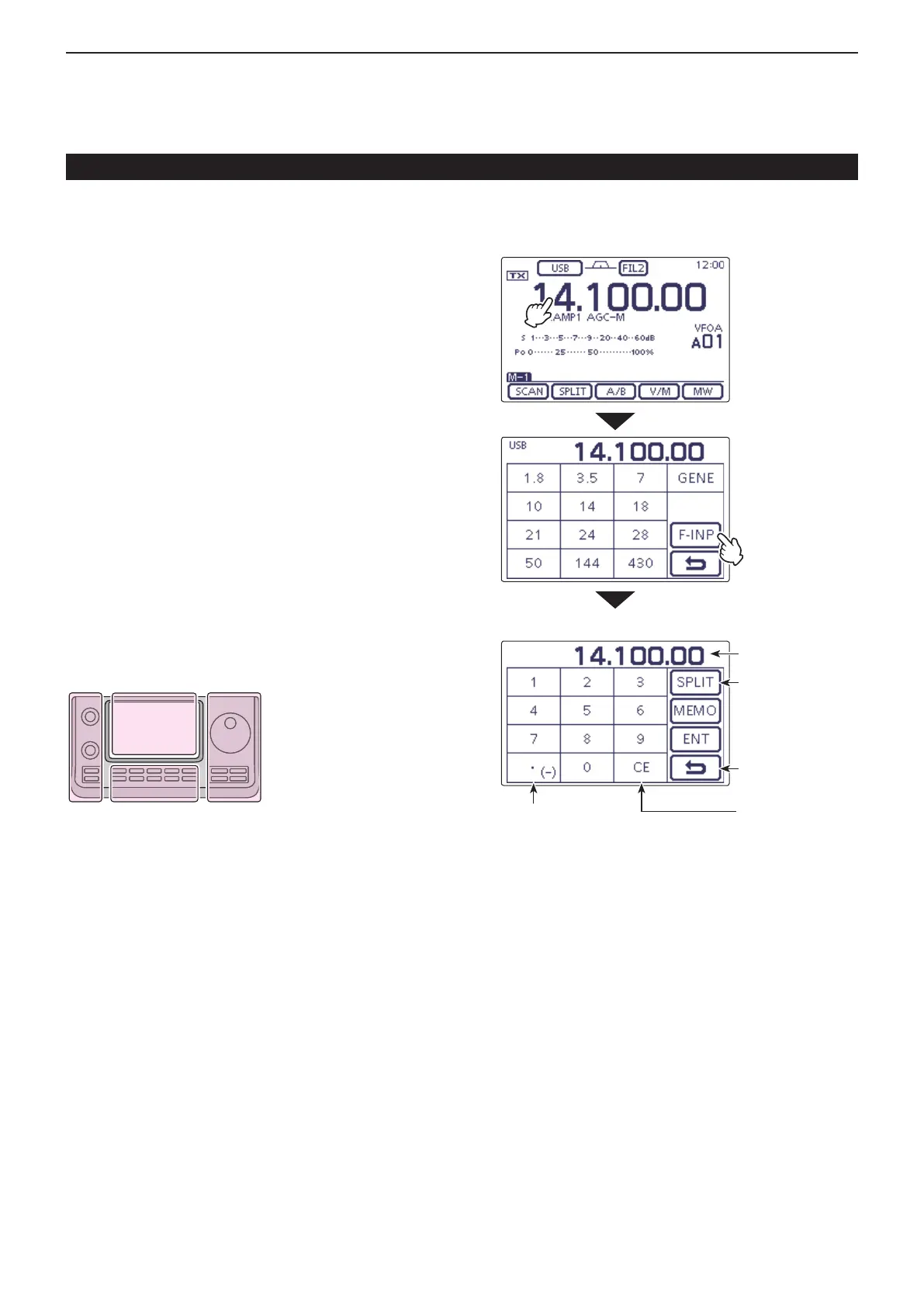

Touch the MHz digits to enter the Band selection dis- q
play.
Touch [F-INP]( w D) to enter the Direct input screen.
If the Shift direction is minus, touch “• (–).” e
• [SPLIT] changes to [–SPLIT], and displays the Minus set-
ting mode.
Touch the desired number to enter the desired fre- r
quency shift.
• –9.999 to +9.999 MHz can be set in 1 kHz steps.
Touch [SPLIT] or [–SPLIT]( t D) to input the frequency
shift to the transmit frequency, and the Split function
is turned ON.
[Example]
To transmit on a 10 kHz higher frequency:
Touch [1], [0] then [SPLIT]. ➥
To transmit on 1.025 MHz lower frequency:
Touch [• (–)], [1], [0], [2], [5] then [–SPLIT]. ➥
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
• Direct input screen
Minus (–) input Delete entering
Enter the Split off-
set
Cancel edit
Shows the input
digits
Touch the MHz
digits.
Touch [F-INP]
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
