Icom IC-7100 Advanced Instructions

9
D-STAR OPERATION <ADVANCED>
9-11
EMR communication (Continued)
D Adjusting the EMR AF level
The audio output level when an EMR signal is received
is adjustable between 0 and 100.
When an EMR signal is received, the audio will be
heard at the preset level, or the [AF] (L) control level,
whichever is higher.
To disable the setting, set it to “0.”
Push q
SET
(C) to enter the Set mode.

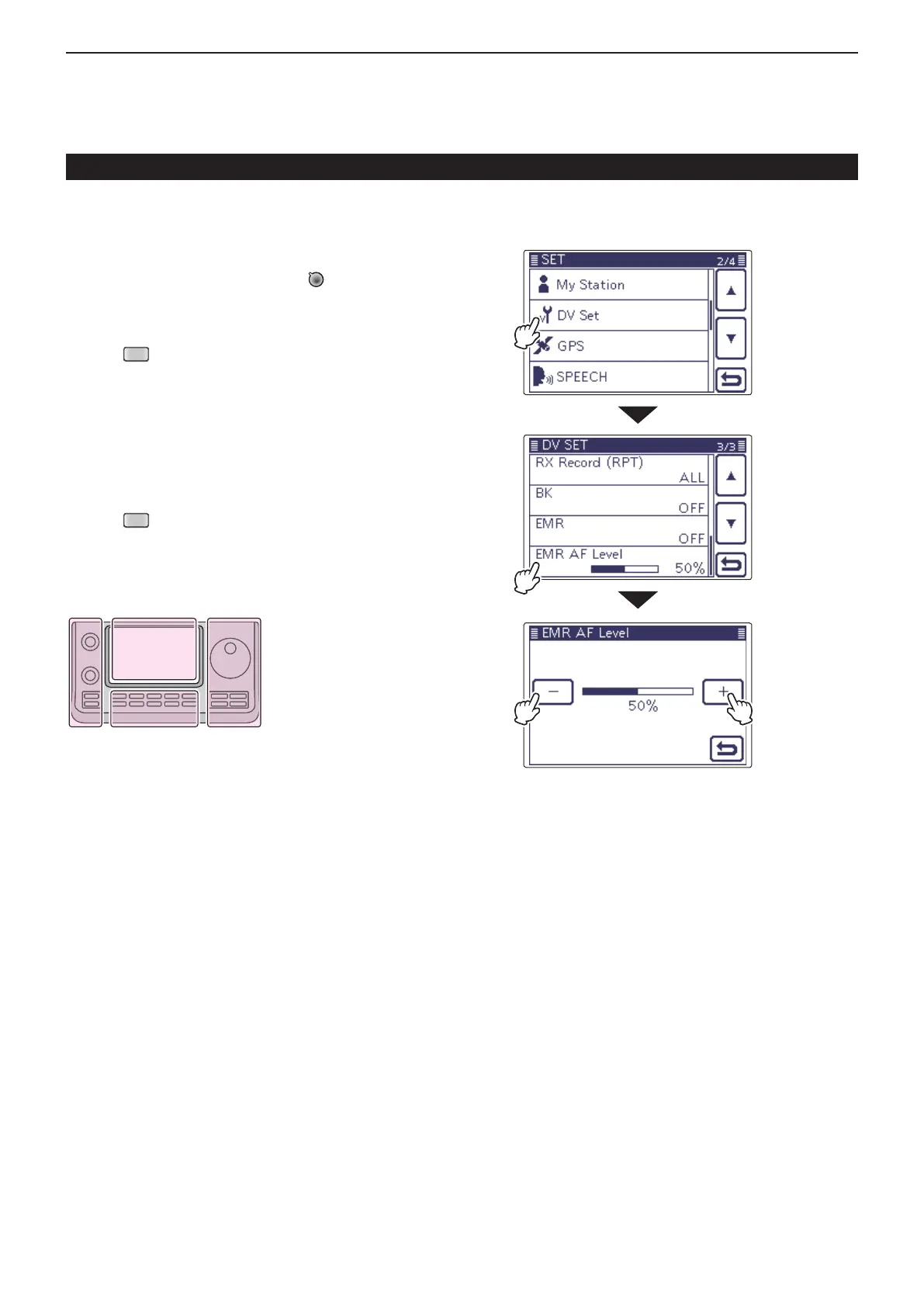

Touch the “EMR AF Level” item of the DV SET Set w
mode.
DV Set > EMR AF Level
• If the specied item is not displayed, touch [∫] or [√](D)
one or more times to select the page
.
Touch e [+] or [–](D) one or more times to adjust the
EMR audio output level between 0 (minimum) and
100 (maximum) in single digit steps. (Default: 50)
Push r
SET
(C) to exit the Set mode.
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
L
eft
R
ight
C
enter
D
isplay
Touch
“DV Set”
Touch
“EMR AF
Level”
Touch
[+] or [–]
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
