Icom IC-7100 Advanced Instructions

3
BASIC OPERATION
3-24
Basic transmit operation (Continued)
D Microphone gain adjustment
(Mode: SSB/AM/FM/DV)
Push q
MIC/RF PWR
(C) to open the MIC gain/RF power
adjustment display.
Push [PTT] to transmit. w
• Speak into the microphone at your normal voice level.
Rotate [M-CH] e (L) to adjust the MIC gain.
When the MIC gain is adjusted too high, your
transmitted voice may be distorted.
Release [PTT] to receive. r
Push t
MENU
(C) to close the display.
❍ In the SSB mode:
Touch the TX meter to select the ALC meter. Then,
while speaking into the microphone, rotate [M-CH]
(L) so that the ALC meter reading stays within
the ALC zone.
❍ In the AM, FM and DV modes:
While speaking into the microphone, rotate
[M-CH]
(L) with another station listening to your
voice for clarity.

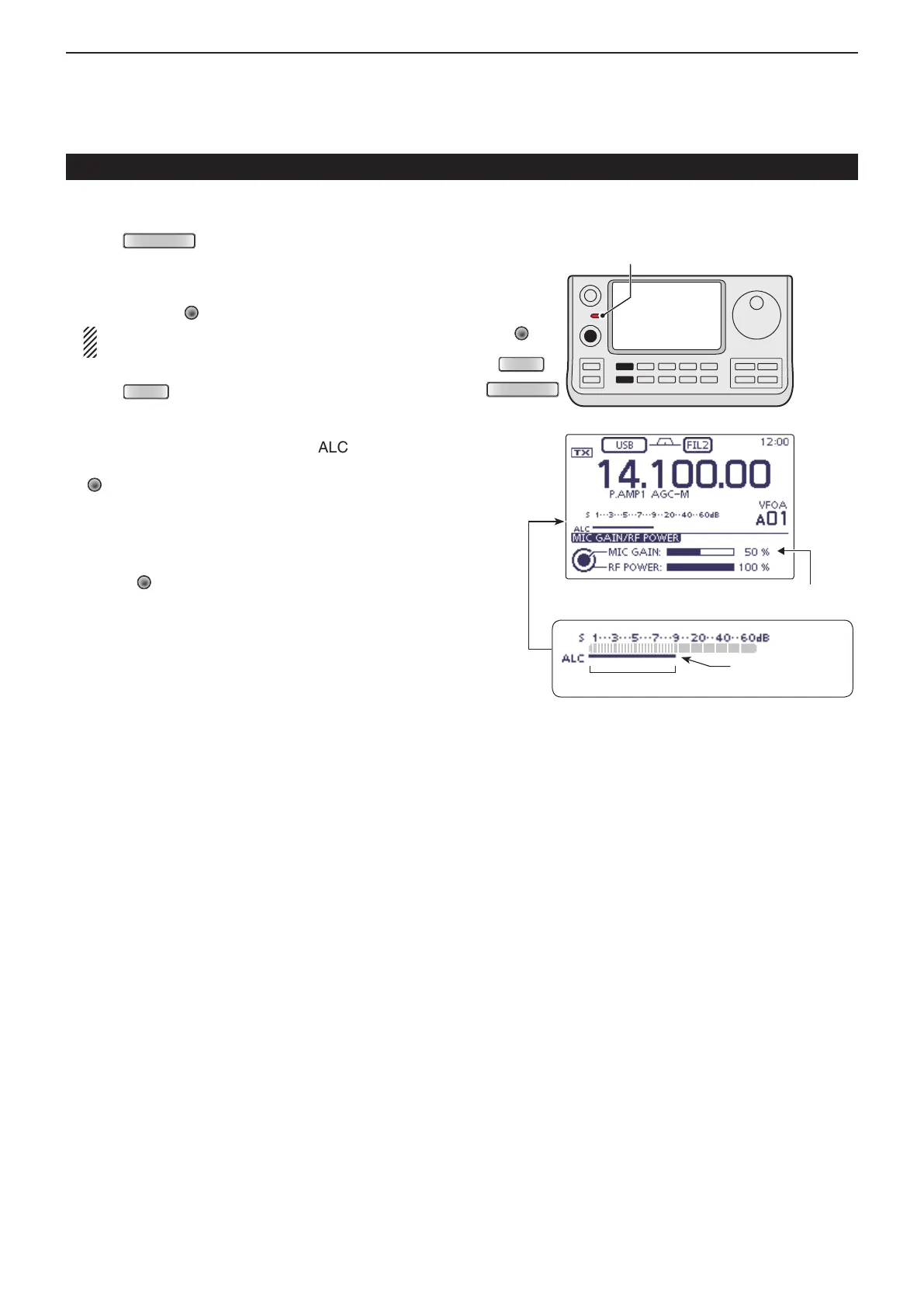

MIC/RF PWR
MENU
TX/RX LED
[M-CH]
MIC gain adjustment
ALC zone
When ALC meter
is selected.
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
