PANEL DESCRIPTION
1-24
u MODE KEY [MODE]
Push to cycle through the operating modes: ➥
USB/LSB ➧CW/CW-R ➧RTTY/RTTY-R ➧AM
➧ FM ➧ WFM ➧ DV
Hold down for 1 second to toggle the following ➥
operating modes:
USB ↔ LSB
CW ↔ CW-R
RTTY ↔ RTTY-R
i POWER LED
Lights green when transceiver’s power is ON.
o PROGRAMMABLE FUNCTION KEYS [F-1]/[F-2]
Program and perform a selected function.
• The functions can be assigned in the “RC MIC” item of
the “Function” Set mode (p. 17-22). The default settings
for [F-1] and [F-2] are “MPW” and “MPR.”
> Function > RC MIC
!0 MEMORY WRITE KEY [MW] (pp. 11-5, 11-6)
Hold down for 1 second to store VFO data into the
selected memory channel.
• This can be done in both the VFO and memory modes.
!1 VFO/MEMORY SELECTION KEY [V/M]
Push to switch between the VFO and memory ➥
modes. (p. 3-4)
Hold down for 1 second to copy the memory con- ➥
tents to the displayed VFO. (p. 11-9)
!2 TRANSMIT FREQUENCY CHECK KEY [XFC]
➥ During split frequency or repeater operation, hold
down to listen to the transmit frequency. (p. 4-28)
• While holding down this switch, the transmit frequen-
cy can be changed with the Dial or
.
• When the Split Lock function is turned ON in the Split
operation, hold down [XFC] to cancel the Dial lock
function. (p. 6-10)
➥ When operating simplex, hold down to monitor
the frequency.
• While holding down this key, the squelch is open and
the interference reject functions are temporarily turned
OFF.
➥ When operating simplex and the RIT function is
turned ON, hold down to listen to the transmit fre-
quency. The frequency is the same as when the
RIT is OFF.
➥ In the DV mode, hold down this key to select the
RX monitoring mode. (p. 17-13)
!3 TUNER/CALL KEY [TUNER/CALL]
❍ ANTENNA TUNER KEY Operation (p. 16-4)
(Frequency band: HF, 50/70* MHz)
➥ Push to turn an optional antenna tuner ON or
OFF (bypass).
➥ Hold down for 1 second to manually start the
antenna tuner.
• If the tuner cannot tune the antenna within 20 sec-
onds, the tuning circuit is automatically bypassed.
* 70 MHz band transmission is available, depending on
the transceiver version.
❍ CALL KEY Operation (p. 11-4)
(Frequency band: 144/430 MHz)
Push to select the Call channel.

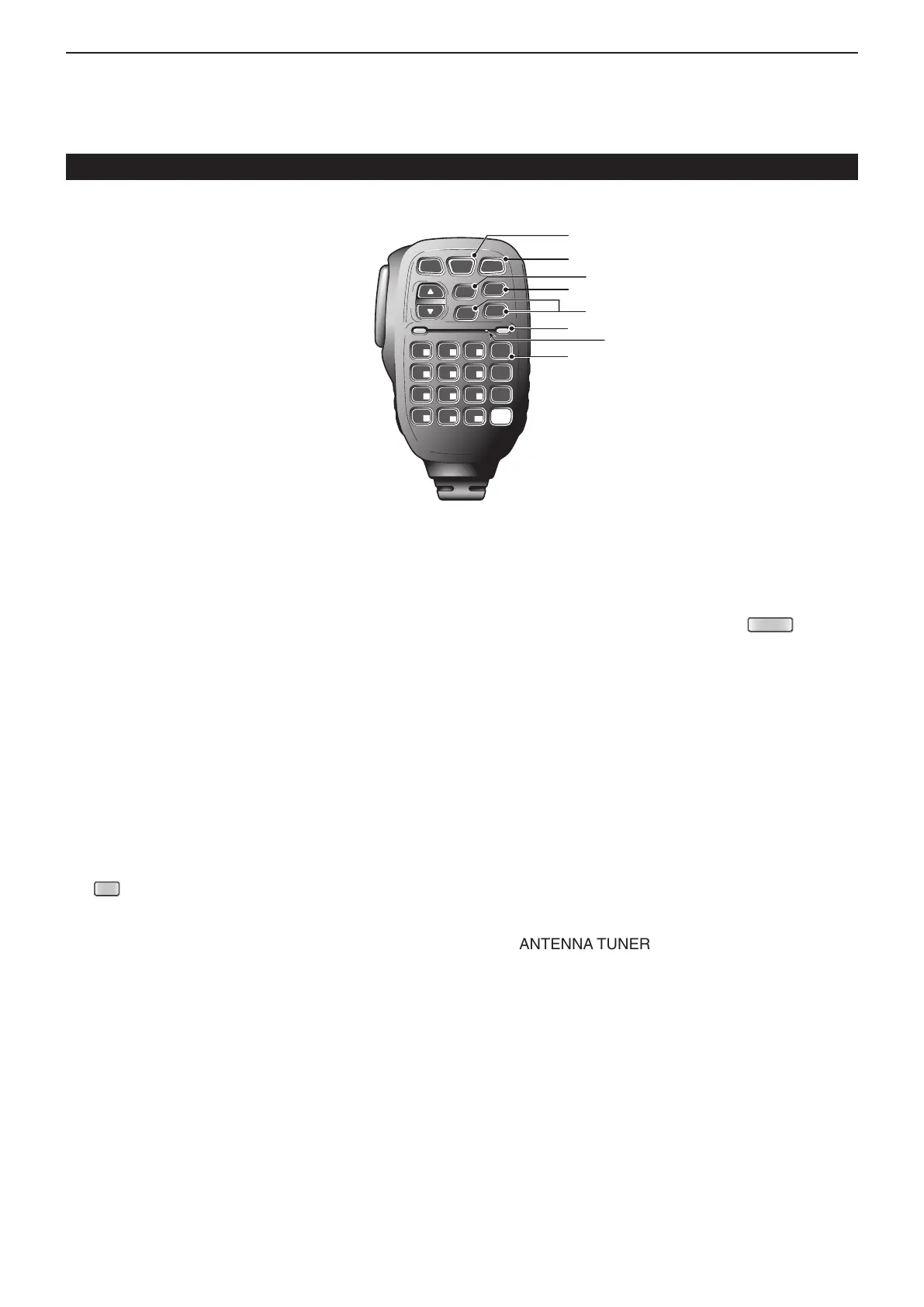

HM-151 (Option) (Continued) D
