Using the 1G/10GbE PHY without the Sequencer
The sequencer brings up channel-based initial datapath and performs parallel
detection. To use the 1G/10GbE PHY without the sequencer, turn off the Enable
automatic speed detection parameter.
Turning off the sequencer results in the following additional ports:
•
rc_busy
•
start_pcs_reconfig
•
mode_1g_10gbar
These ports perform manual reconfiguration. The following figure shows how these
ports are used for 1G and 10G configuration.

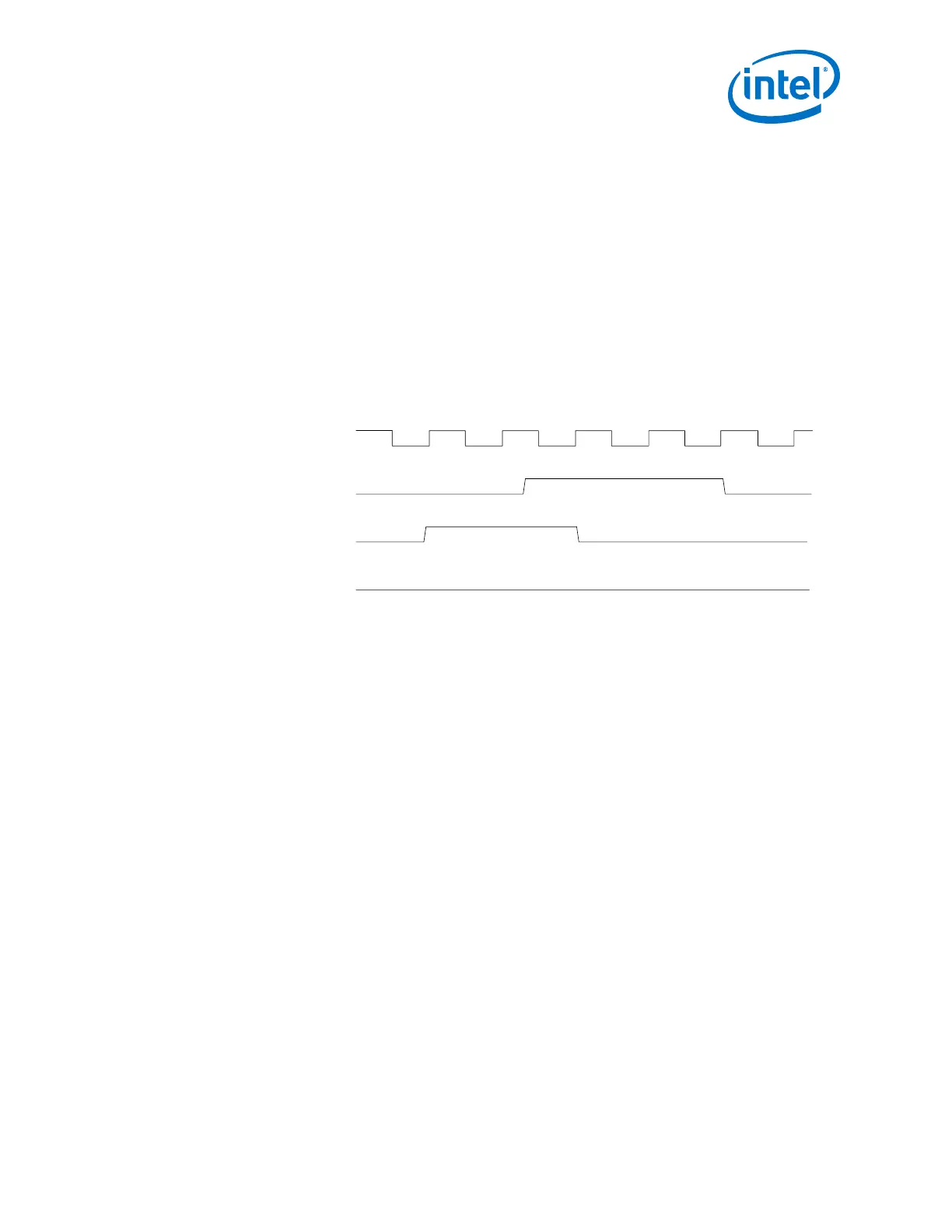

Figure 77. Timing for Reconfiguration without the Sequencer
mgmt_clk
rc_busy
start_pcs_reconfig
mode_1g_10bar
2.6.4.10. Channel Placement Guidelines
The channels of multi-channel 1G/10G designs do not need to be placed contiguously.
However, channels instantiated in different transceiver banks require PLLs in the same
bank.
Related Information
Arria 10 Avalon-MM Interface for PCIe* Solutions
2.6.4.11. Design Example
Intel provides a design example to assist you in integrating your Ethernet PHY IP into
your complete design.
The MAC and PHY design example instantiates the 1G/10GbE PHY IP along with the
1G/10G Ethernet MAC and supporting logic. It is part of the Quartus II software
installation and is located in the <quartus2_install_dir>/ip subdirectory. For more
information about this example design, refer to the 10-Gbps Ethernet MAC IP Function
User Guide.
A design example that instantiates the 1G/10G PHY and its supporting logic is
available on the Intel FPGA wiki. The following figure shows the block diagram of the
1G/10GbE PHY-only design example. The default configuration includes two channels
for backplane Ethernet and two channels for line-side (1G/10G) applications.
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
197
