2.10.1.2. How to Use NativeLink to Run a ModelSim RTL Simulation

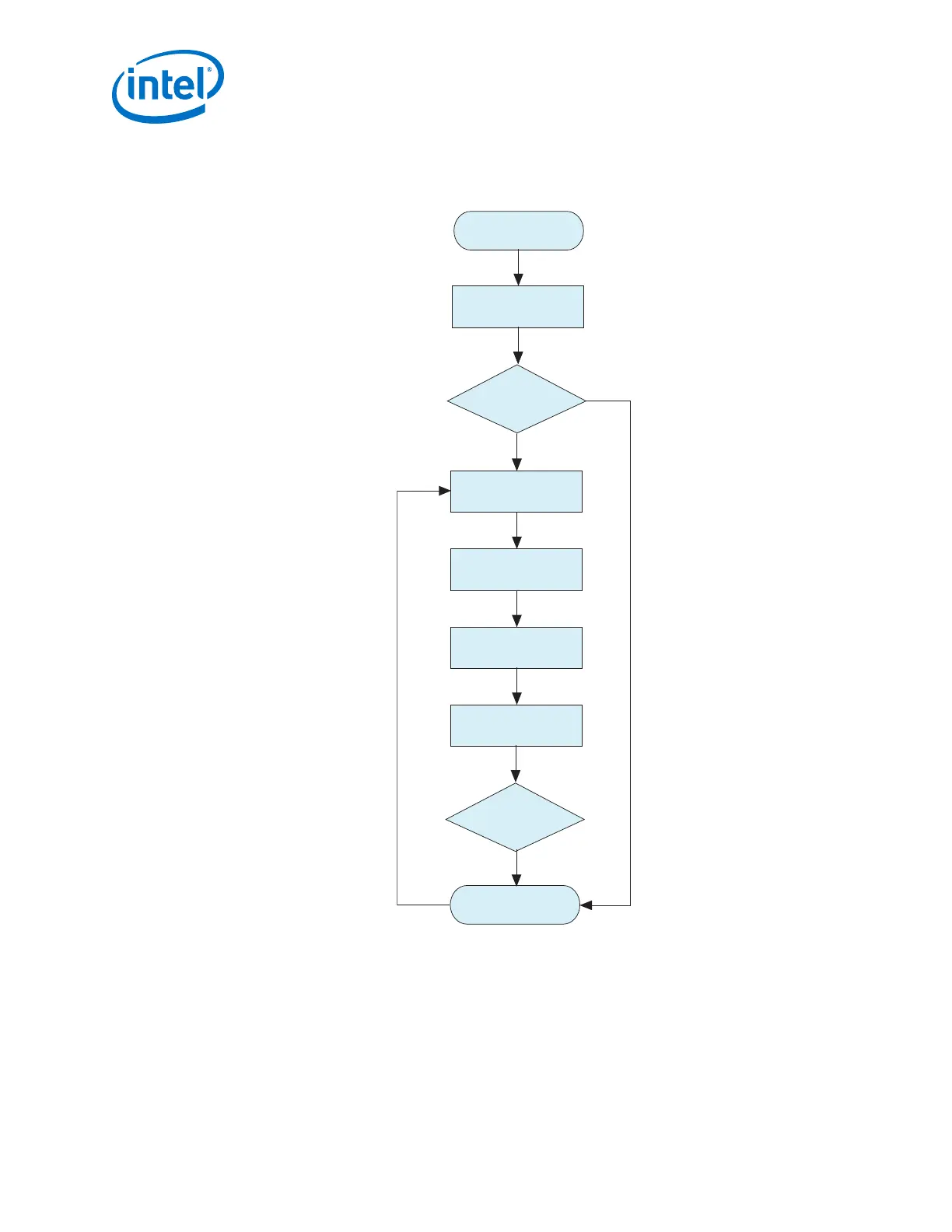

Figure 165. NativeLink Simulation Flow Diagram
Specify EDA Simulator &
Simulator Directory
Run RTL Functional or
Gate-Level Simulation
Debug Design &
Make RTL Changes
Does
Simulation Give
Expected Results?
Yes
Does
Simulation Give
Expected Results?
No
Simulation Complete
No
Run Quartus Prime
Analysis and Elaboration
Define Control Signals Using
In-System Sources & Probes
Run Simulation
Does
Simulation Give
Expected Results?
Yes
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
328

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
