Model Selection and Configuration
Gem-5 User’s Manual 29

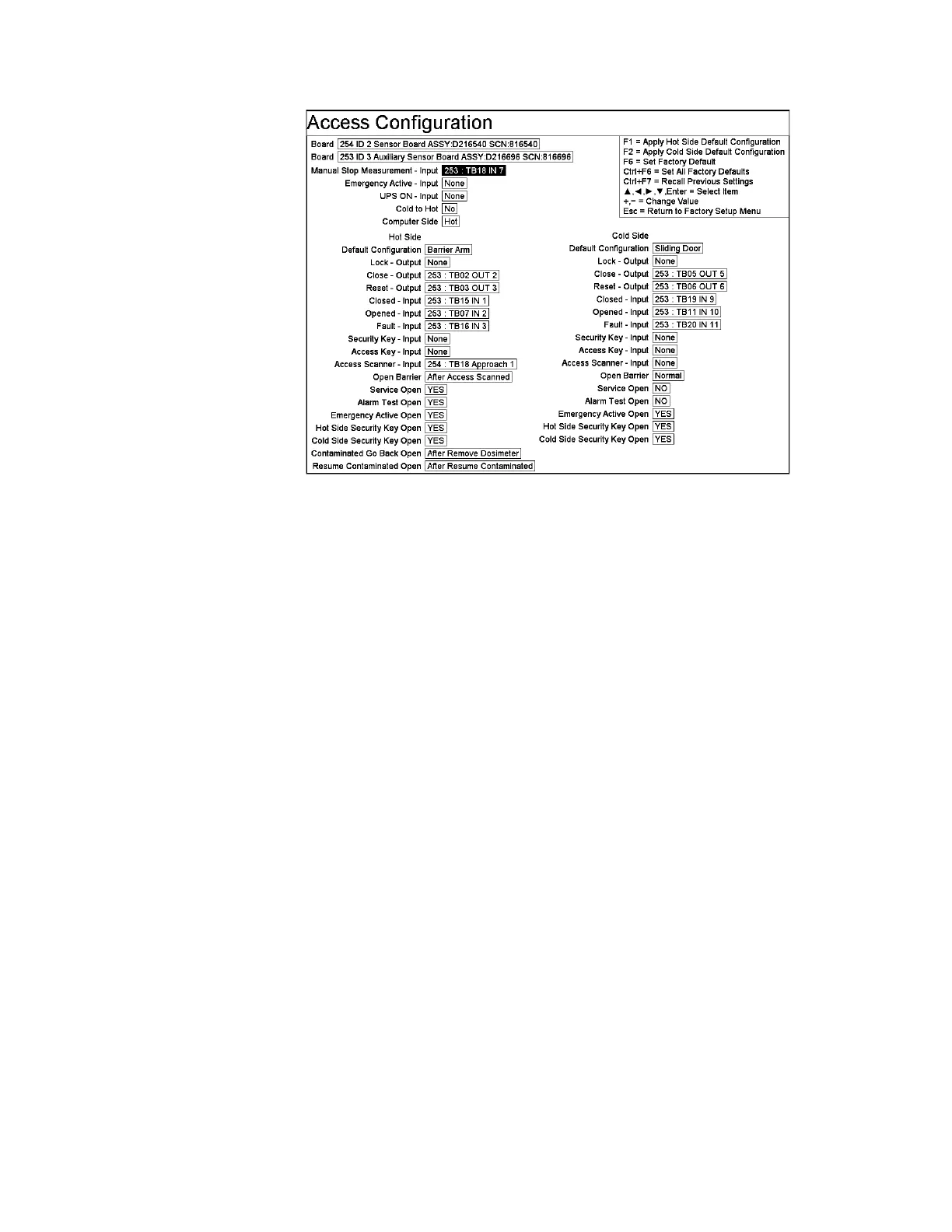

Figure 12 Access Configuration Screen
Non-selectable Line Items
Board:
“254 ID 2 Sensor Board ASSY: D216540 SCN:816540” is the standard board for
Argos-3, Argos-5, GEM-5 and Cronos Serial Bus models.
“253 ID 3 Auxiliary Sensor Board ASSY: D216696 SCN:816696” is the optional
board for Argos-3, Argos-5 and GEM-5 Serial Bus models and is available only if
Auxiliary Sensor Board Enabled is set to “YES” on the Model Selection screen (on
page 18).
Selectable Line Items
General
Manual Stop Measurement - Input: This is intended when there is barrier on both
Hot side and Cold sides. It opens Hot Side door (unless Cold side door is open) and
allows occupant to exit and aborts any monitoring in progress.
Emergency Access - Input: This is intended when there is barrier on both Hot side
and Cold side. It allows supervisory personnel to force both barriers open remotely.
The Hot & Cold Side Security Open setting is used to set which barriers open.
Equivalent setting to Hot & Cold Side Security Key Open setting which is intended
for local control. This can also be used as an Emergency switch input.
UPS ON – Input: Default is “None”. When assigned terminal is active, the words
“UPS ON” is shown across screen (in magenta characters). This requires a UPS unit
with contact closure during battery operation (not a standard option).
