Control Functions 101

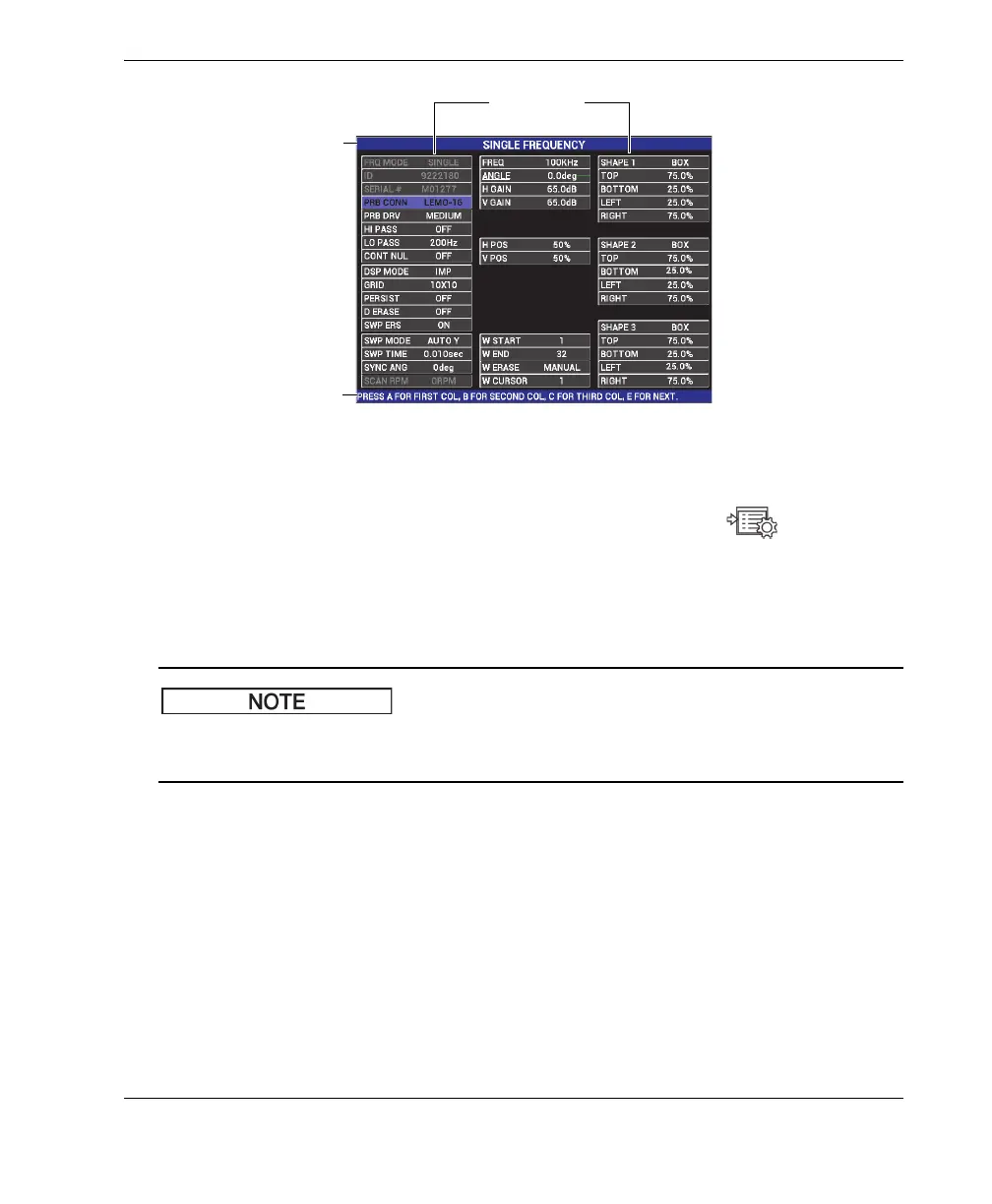

Figure 4‑18 The ALL SETTINGS menu (first of two screens)
To select ALL SETTINGS, press the ADV SETUP menu key ( ), followed by
the B key. To navigate the menu or to go to the next screen, follow the instructions
in the help text at the bottom of the screen. To select a setting to adjust, repeatedly
press the FULL NEXT key until the desired setting is highlighted, and then rotate
the knob until the desired value is shown.
The NORTEC 600 instrument does not use an enter key to save the selection made on
any of its menus. Instead, the selected (displayed) value is automatically saved.
FRQ MODE (frequency mode)
This option, which supplements single frequency operation with dual-frequency
capability, is only available for the N600D model. Parameters that are adjustable
for the second frequency are frequency, gain, and rotation (angle).
The NORTEC 600D instrument includes the following features:
— Two independent frequencies: frequency 1 (F1) and frequency 2 (F2).
— Two independent vertical and horizontal gain settings for F1 and F2.
— Two independent angle settings for F1 and F2.
