To use the impedance plane theory and display
1. Connect the probe and the cable to the PROBE connector on the NORTEC 600.
2. Press the ADV SETUP menu key ( ) once, and then select APPL SELECT
(A key) to open the application selection menu. Select Surface Cracks with the
knob, then press to accept (see Figure 5-73 on page 175).

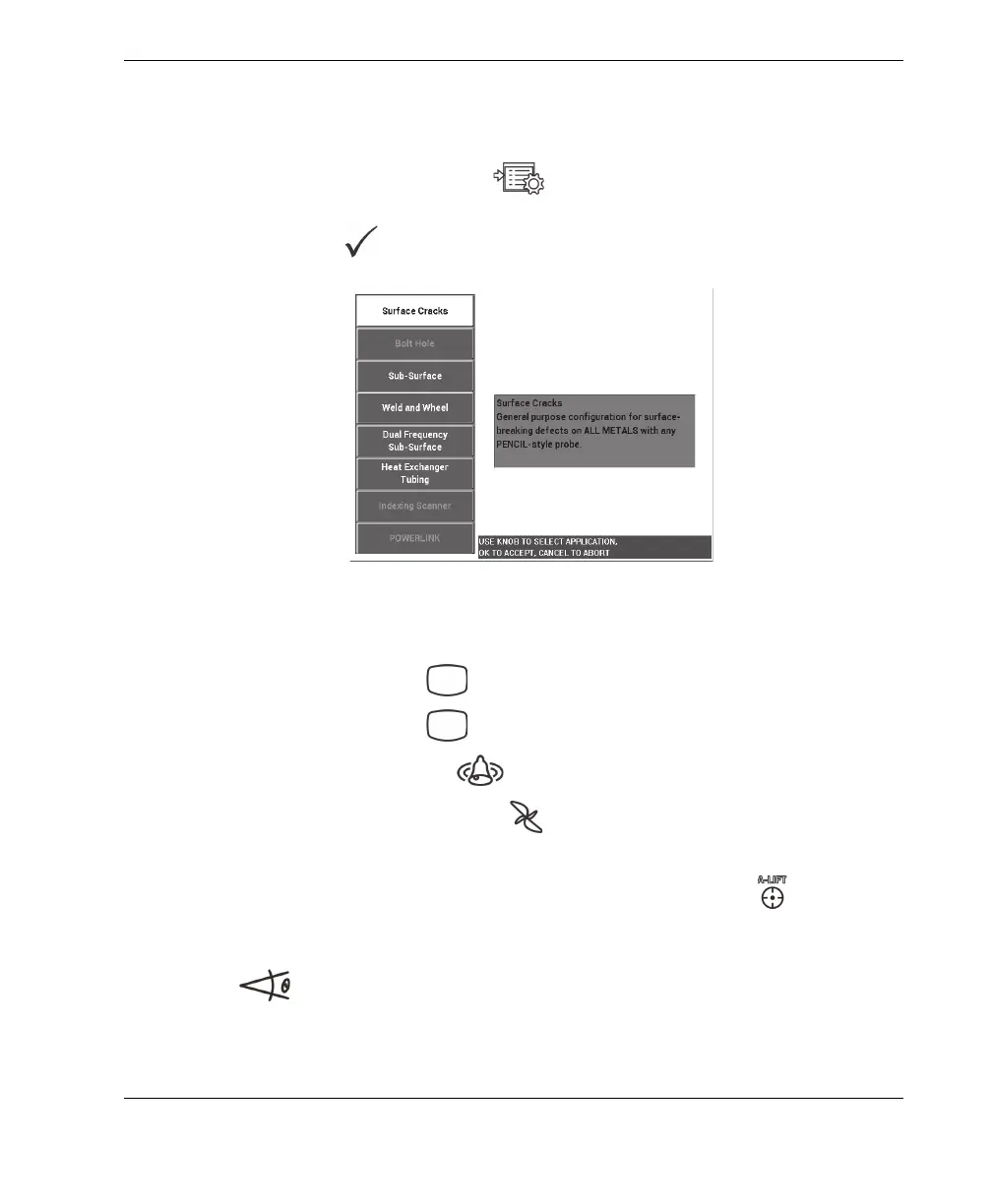

Figure 5‑73 The Surface Cracks application
3. Press the DISP menu key ( ), and set the POSITION (C key) to TOP CNTR.
4. Press the DISP menu key ( ) again, and set the GRID (D key) to OFF.
5. Press the ALARM menu key ( ), and set the ALARM 1 (A key) to OFF.
6. Press the MAIN FILTER menu key ( ), and set the FREQ (A key) to 60 kHz.
7. Set the GAIN (C key) to approximately 40 dB.
8. Hold the probe in the air, and then press the A-LIFT NULL key ( ).
9. Gently touch the ferrite sample with the probe, and continue to repeatedly gently
tap the sample (see Figure 5-74 on page 176). While tapping, press the ANGLE
key ( ) and adjust the ferrite signal angle until it is oriented straight upward
(90°) [see Figure 5-75 on page 176].
