DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 183
and adjust the lift-off angle until it is oriented straight upward (90°) [see
Figure 5-84 on page 182].

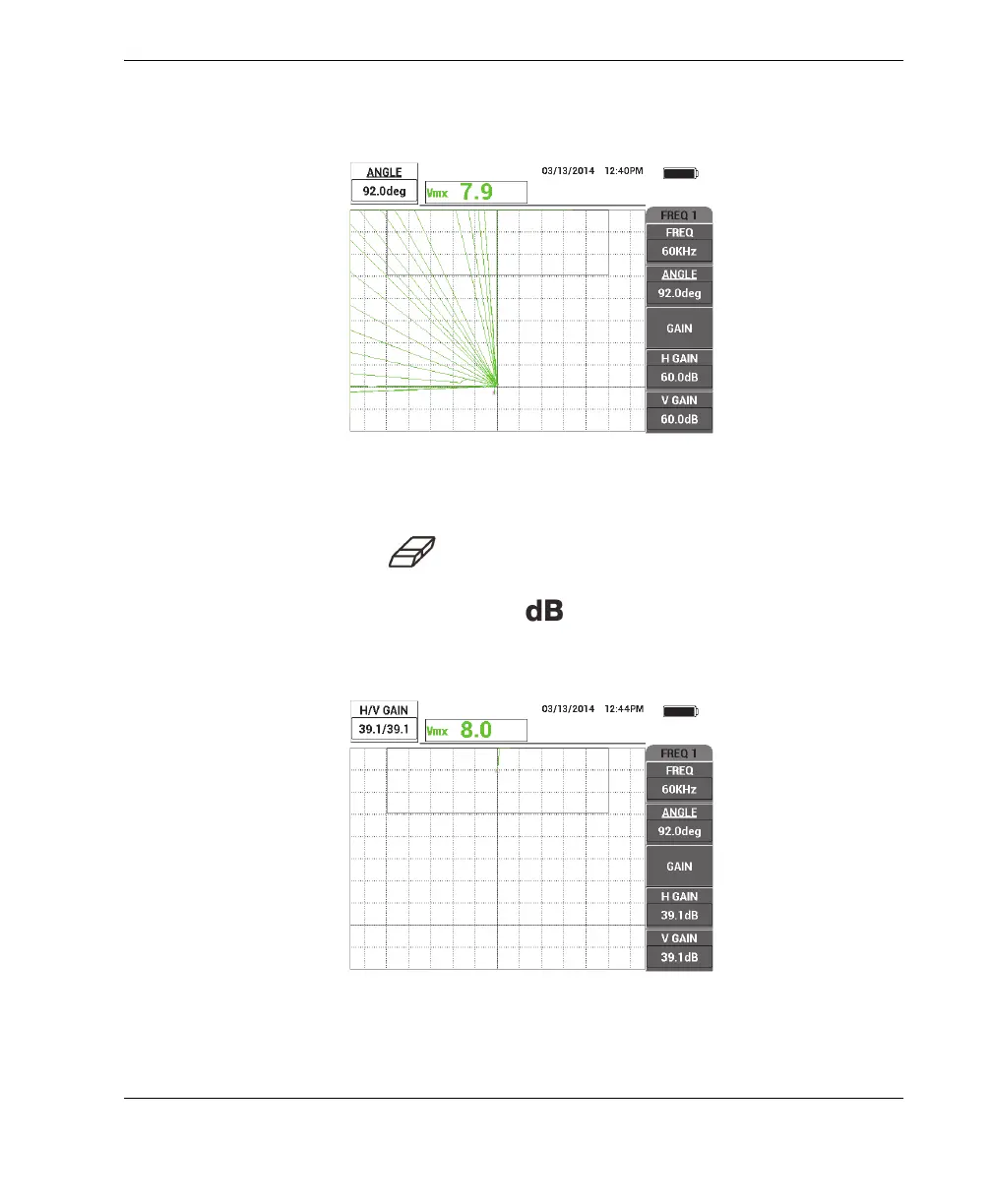

Figure 5‑86 Adjusting the lift‑off angle to 90°
8. Press the ERASE key ( ), place the probe on the sample again (this time use a
larger lift-off or paint thickness value; for example, the thickness of three business
cards), and then press the GAIN key ( ), and decrease the gain until the live
dot is within the screen area and is at about 90 % of the screen height (see
Figure 5-87 on page 183).
Figure 5‑87 Adjusting the gain
