• Tube probe adaptor (differential) including NULL and ERASE foot switch (P/N:
N600-TUBE-FTSW [U8779875]) and auxiliary absolute tube adaptor (P/N: DGL-
AF4-BNC-8 [U8779886])
• Admiralty brass calibration standard (tube): OD 19 mm (0.75 in.), WT (wall
thickness) 1.65 mm (0.065 in.); P/N: CT02-001-D16 [U8779241]
To set the initial NORTEC 600 configuration
1. Connect the probe and the foot-switch adaptor cable to the PROBE connector on
the NORTEC 600.
2. Press the ADV SETUP menu key ( ) once, then select APPL SELECT (A key)
to open the application selection menu. Select Heat Exchanger Tubing with the
knob, then press to accept (see Figure 5-136 on page 217).

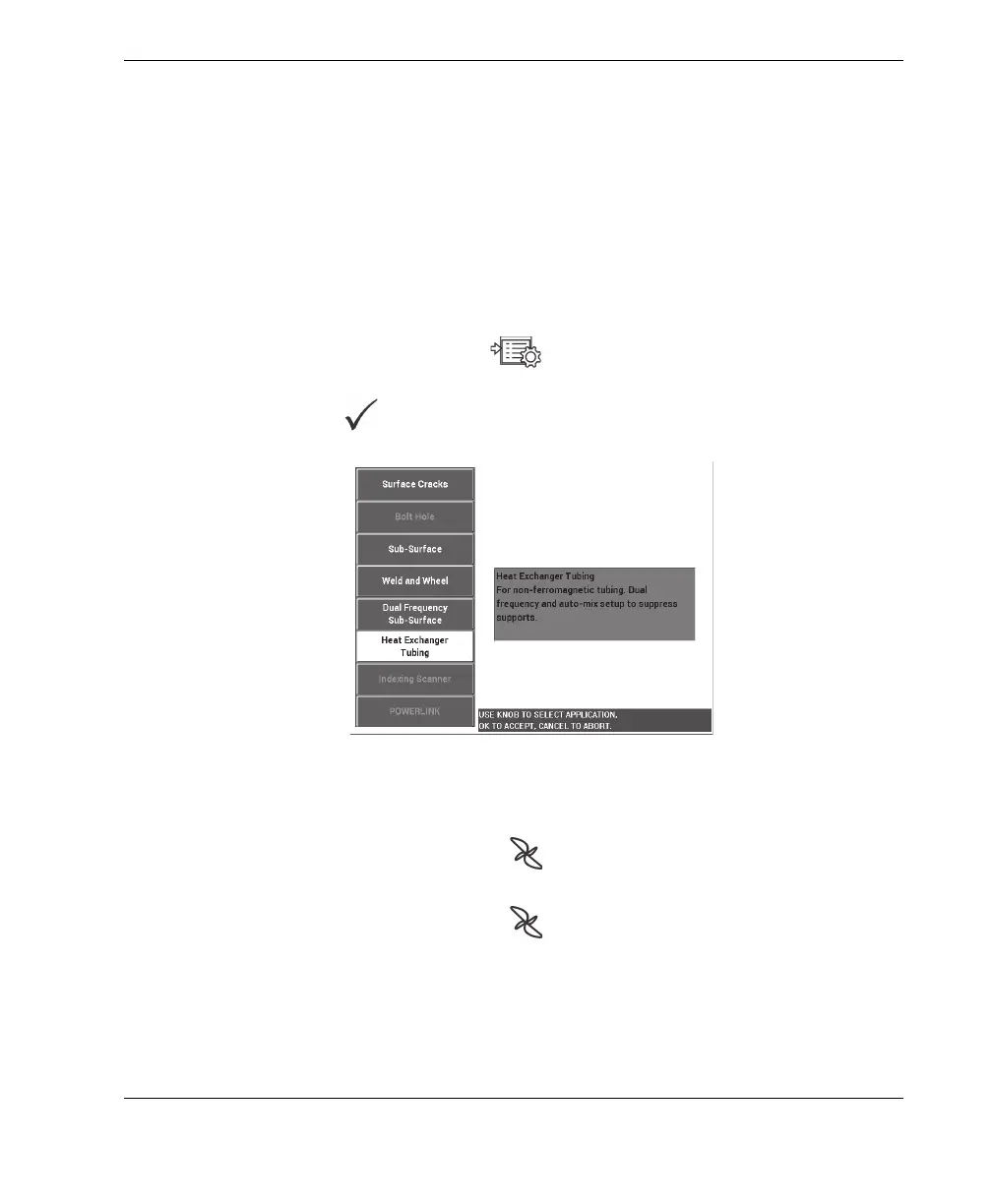

Figure 5‑136 The Heat Exchanger Tubing application
3. Press the MAIN FILTER menu key ( ), and then set the FREQ (A key) to
14 kHz.
4. Press the MAIN FILTER menu key ( ) again, and then set the FREQ 2 (A key)
to 3 kHz.
To calibrate the signals
1. Place the probe in a defect-free zone of the calibration standard, and then press
the NULL foot switch.
