Olympus nortec 600 - Figure 5-122 the Fastener Scan Result; Figure 5-123 Adjusting the Horizontal Amplitude of the Frequency 1 Signal

DMTA-10040-01EN, Rev. E, February 2018
Chapter 5208

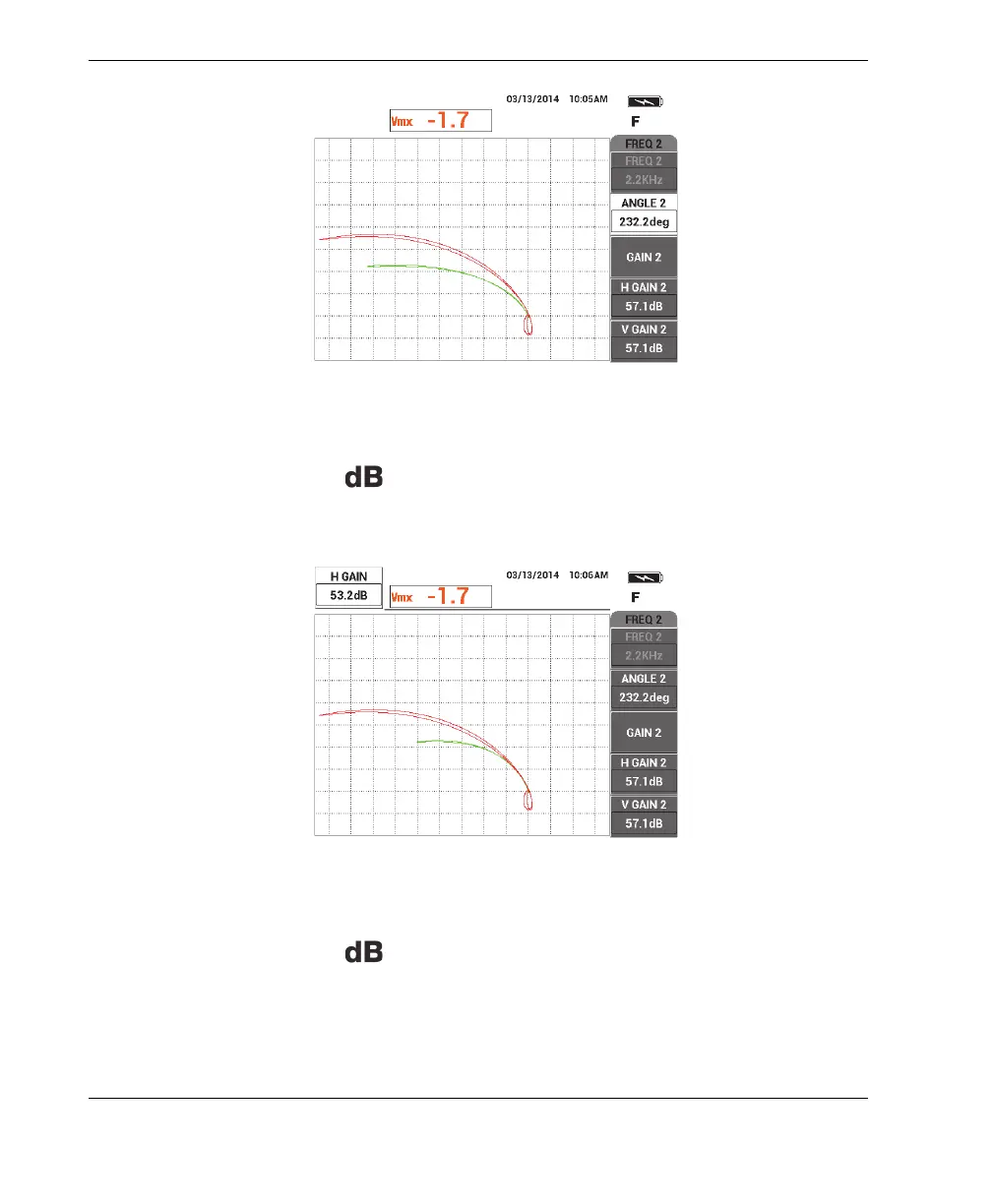

Figure 5‑122 The fastener scan result
13. Press the GAIN key ( ) twice, and then decrease the horizontal amplitude of
the frequency 1 signal (green) until it extends exactly 5 divisions to the left of the
null point (see Figure 5-123 on page 208).
Figure 5‑123 Adjusting the horizontal amplitude of the frequency 1 signal
14. Press the GAIN key ( ) again, and then increase the vertical amplitude of the
frequency 1 signal (green) until it extends exactly 4 divisions above the null point
(see Figure 5-124 on page 209).
