DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 209

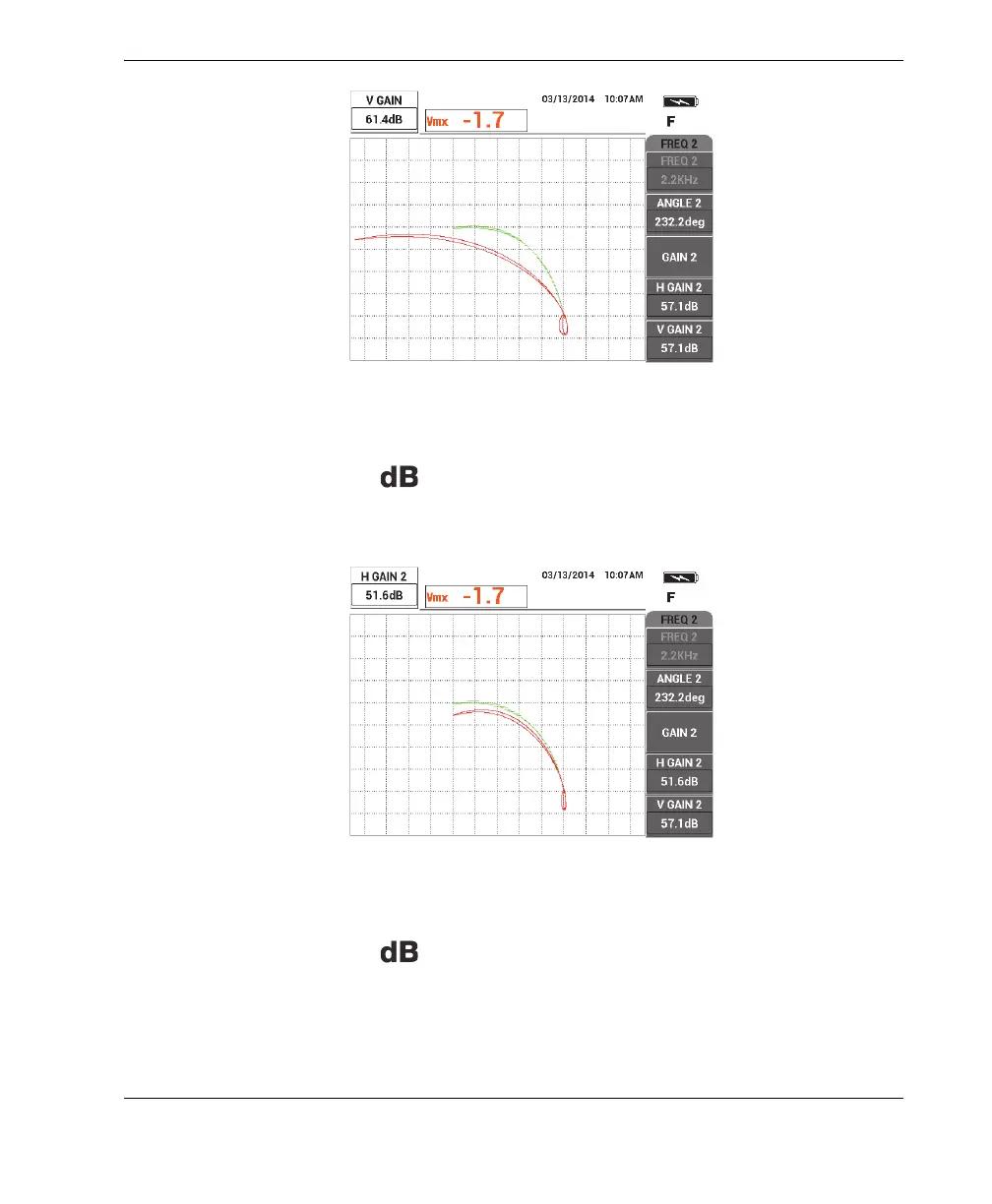

Figure 5‑124 Adjusting the vertical amplitude of the frequency 1 signal
15. Press the GAIN key ( ) twice again, and then decrease the horizontal
amplitude of the frequency 2 signal (red) until it extends exactly 5 divisions to the
left of the null point (see Figure 5-125 on page 209).
Figure 5‑125 Adjusting the horizontal amplitude of the frequency 2 signal
16. Press the GAIN key ( ) again, and then increase the vertical amplitude of the
frequency 2 signal (red) until it extends exactly 4 divisions above the null point
(see Figure 5-126 on page 210).
