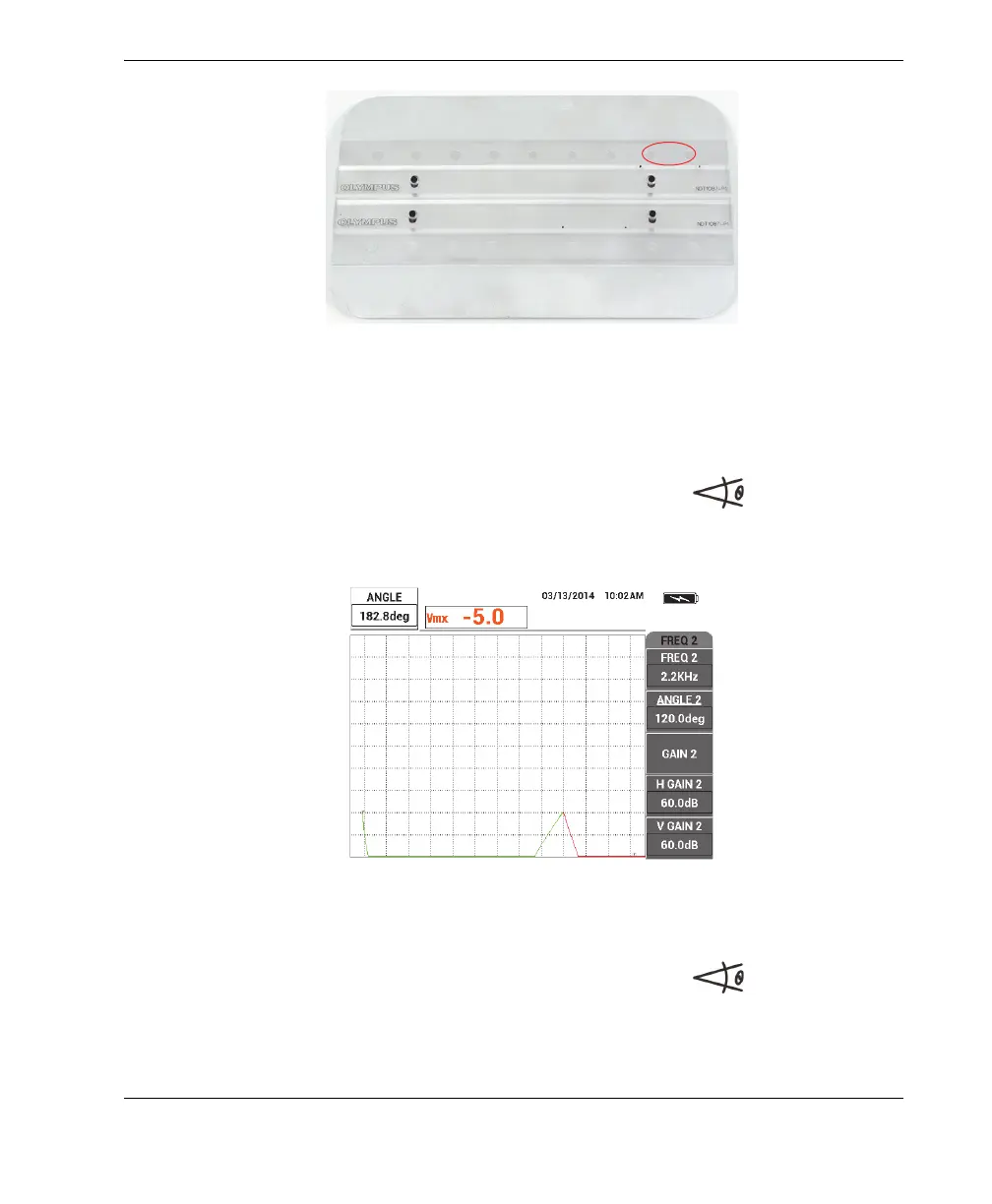

Figure 5‑117 Position 1 on the standard
4. While holding the probe on position 1, insert two shims (business cards) under
the probe.
5. While holding the probe in place, press the ANGLE key ( ), and then adjust
the ANGLE until the signal is as horizontal as possible (20 % vertical) [see
Figure 5-118 on page 205].
Figure 5‑118 Adjusting the ANGLE value
6. While holding the probe in place, press the ANGLE key ( ) again, and then
adjust the ANGLE 2 so that it is also as horizontal as possible (see Figure 5-119 on
page 206).
