DMTA-10040-01EN, Rev. E, February 2018
Chapter 5236

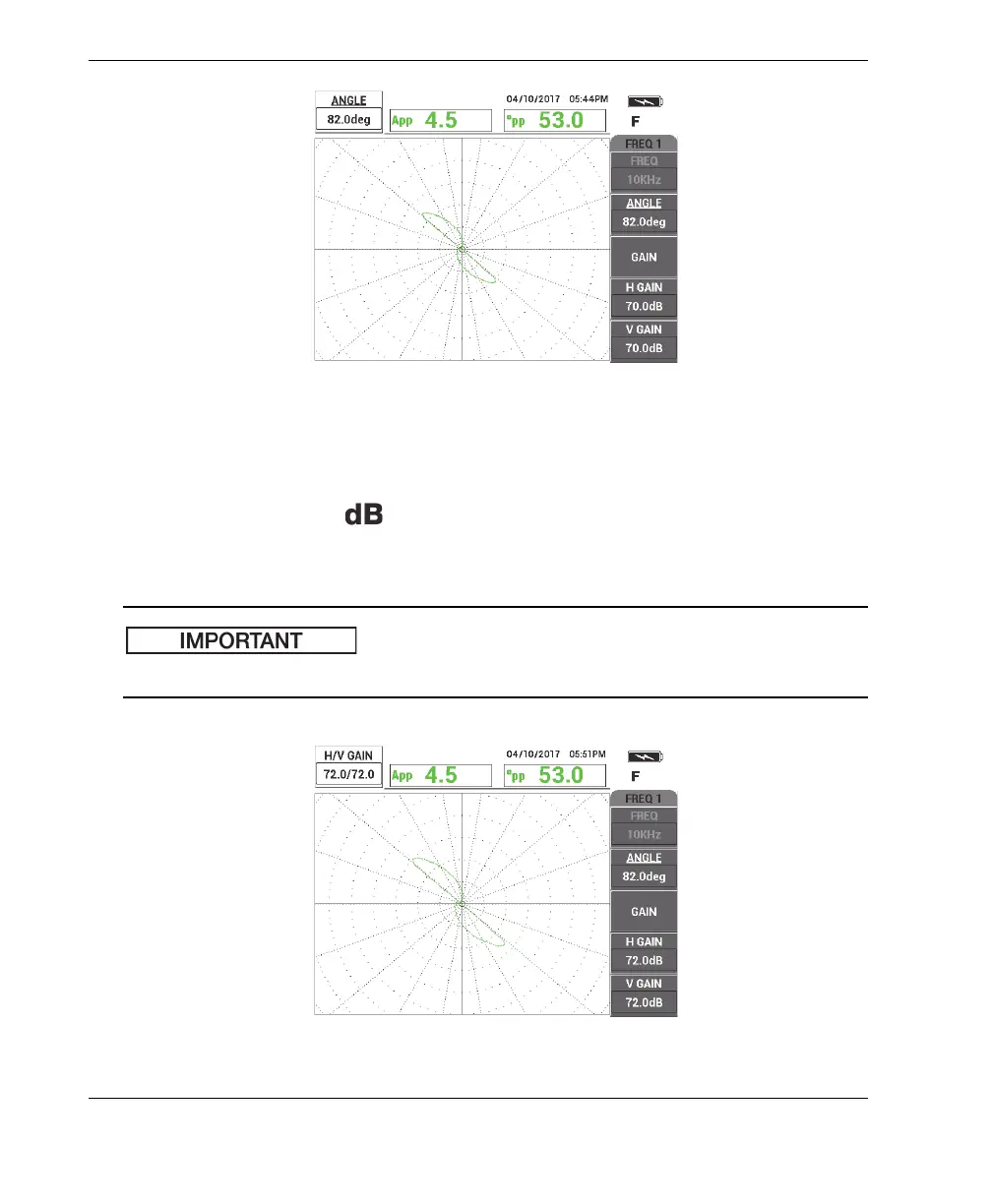

Figure 5‑161 Adjusting the signal
Adjusting the frequency 1 signal phase
4. Press the GAIN key ( ), and then increase the frequency 1 gain until the hole
signal reaches about 6 vertical divisions in height (see Figure 5-162 on page 236).
If necessary, adjust the ANGLE after you have increased the gain.
Always use combined horizontal and vertical gain (H/V GAIN).
Figure 5‑162 Adjusting the frequency 1 gain
