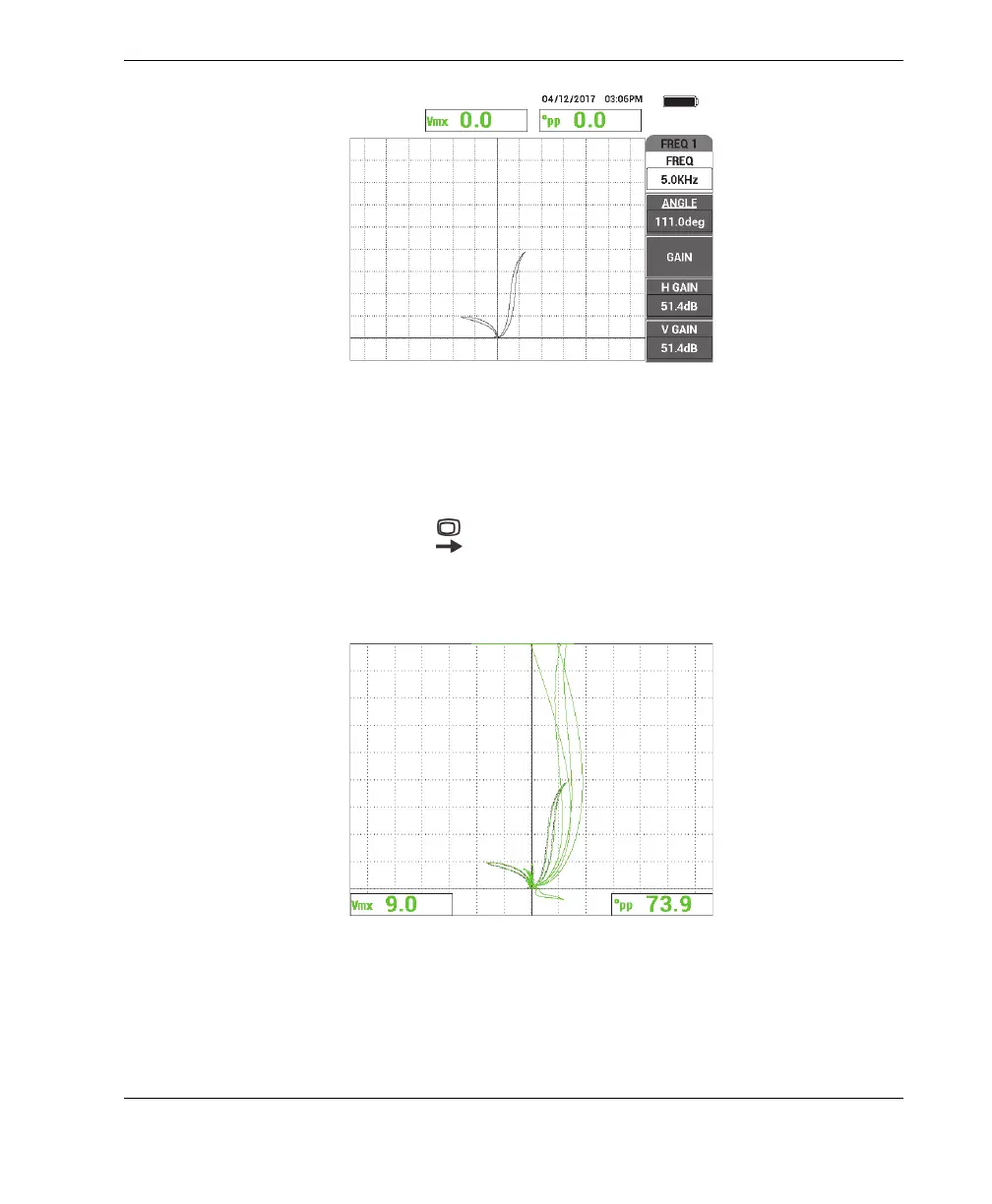

Figure 5‑187 The 10 % ID and 20 % OD flaws set as a reference image
9. Place the probe in a defect-free area of the calibration standard near the 10 % ID
flaw, and then press the NULL foot switch.
10. Press the FULL NEXT key ( ).
11. Scan the entire length of the tubing.
The scan result is shown in Figure 5-188 on page 255.
Figure 5‑188 The tube scan result
