DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 155
• Conductivity standard block with 2 coupons (29.85 % and 59.39 %); P/N: 9522103
[U8880111]
• 4 mil shim samples: 0.1 mm (0.004 in.) thick, set of two; P/N: 0320806 [U8840160]
To set the initial NORTEC 600 configuration
1. Connect the conductivity probe cable to the NORTEC 600 instrument’s PROBE
connector to access the conductivity function (see Figure 5-48 on page 155).

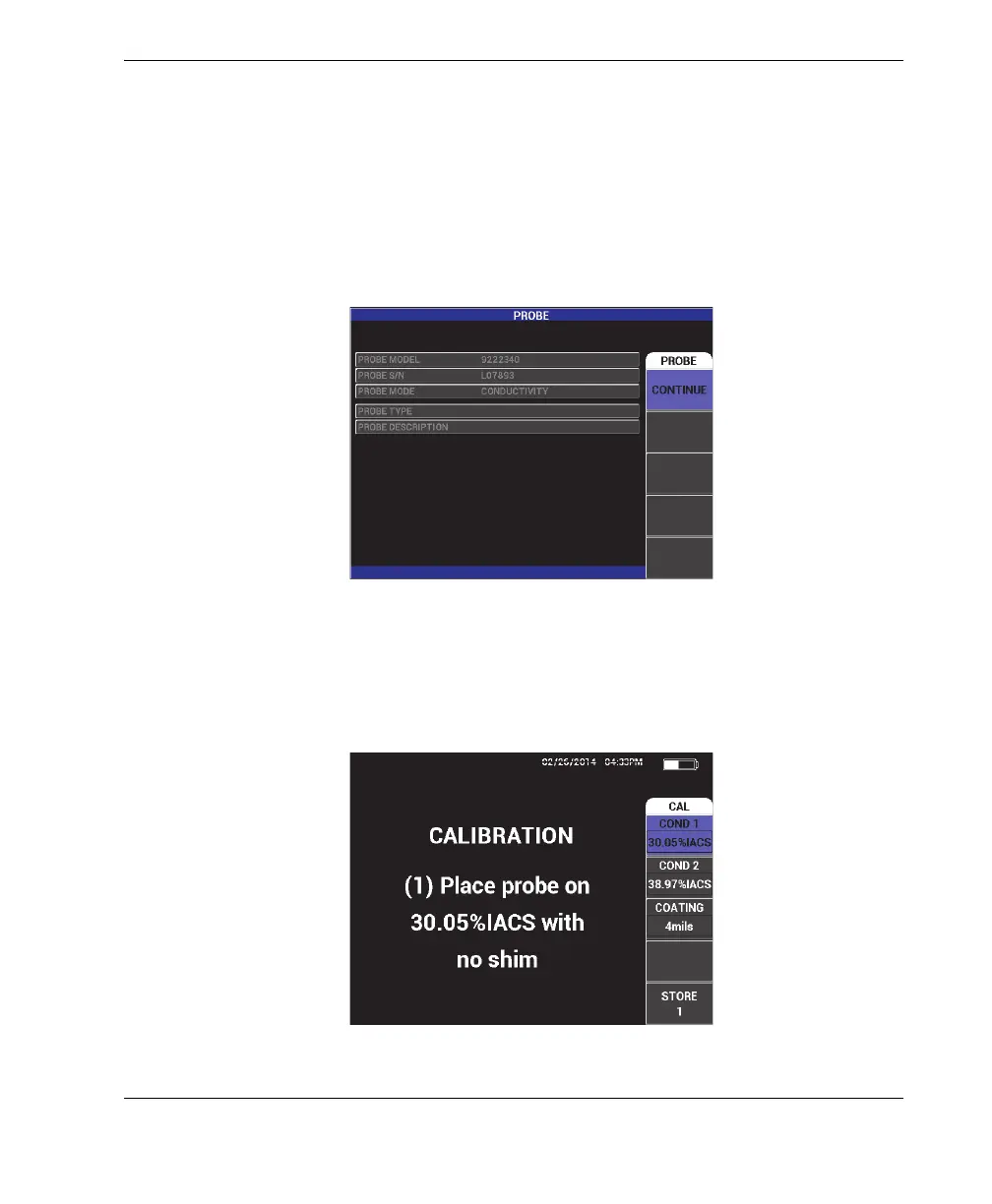

Figure 5‑48 Accessing the Conductivity function
2. When prompted, select CONTINUE (A key) to accept the PowerLink information
(see Figure 5-49 on page 155).
Figure 5‑49 The displayed instruction (1) after PowerLink acceptance
