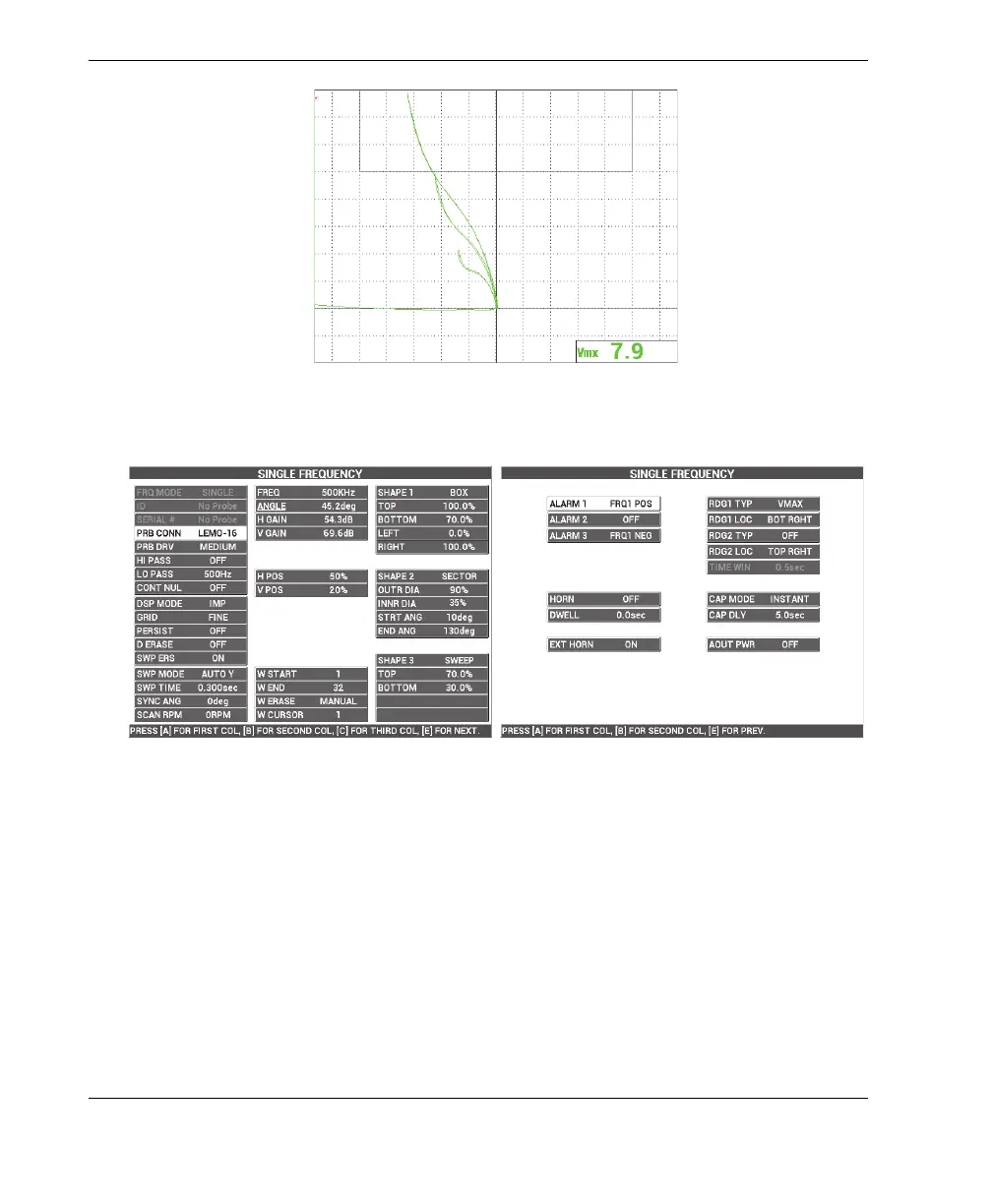

Figure 5‑8 The full‑screen mode for fine‑tuning the settings
Figure 5‑9 The list of all parameters
5.1.2 Inspecting Fastener Holes with a Rotating Scanner — NORTEC 600S
and NORTEC 600D Models
This procedure is intended for the general-purpose inspection of aircraft fastener
holes in aluminum material, and has been prepared for a 12.70 mm (0.50 in.) diameter
hole. At the end of this section, more details are provided for ferromagnetic (steel)
material hole inspection as well as the new NORTEC 600’s Figure 6 versus Figure 8
filter response.
Inspection materials are shown in Figure 5-10 on page 127.
