DMTA-10040-01EN, Rev. E, February 2018
Chapter 6300
4. After all files have been transferred, click Finish to exit the Wizard (see Figure 6-5
on page 300)

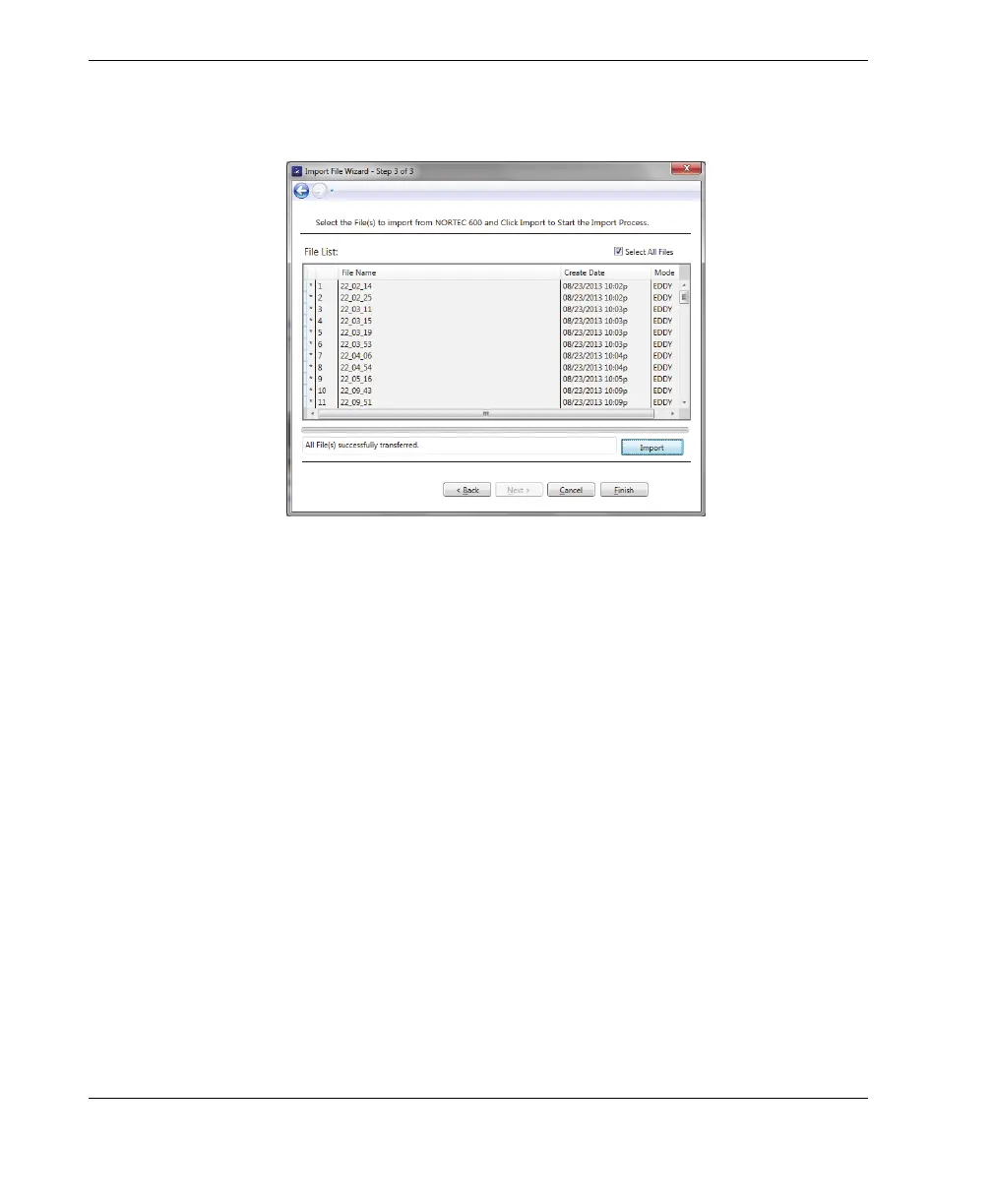

Figure 6‑5 The Import File Wizard transfer process completion
6.2 Capturing a Screen Image Using NORTEC PC
The NORTEC PC software allows you to capture screen images while operating the
NORTEC 600 instrument. For details about screen captures performed without
NORTEC PC, see “Hidden Function — Screen Capture” on page 78.
To capture a screen image using the NORTEC PC software
1. Start the NORTEC PC software.
2. Connect the PC to the instrument using a USB cable.
3. On the Device menu, select Capture Screen (see Figure 6-6 on page 301).
The Capture Screen dialog box opens (see Figure 6-7 on page 301).
