DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 193

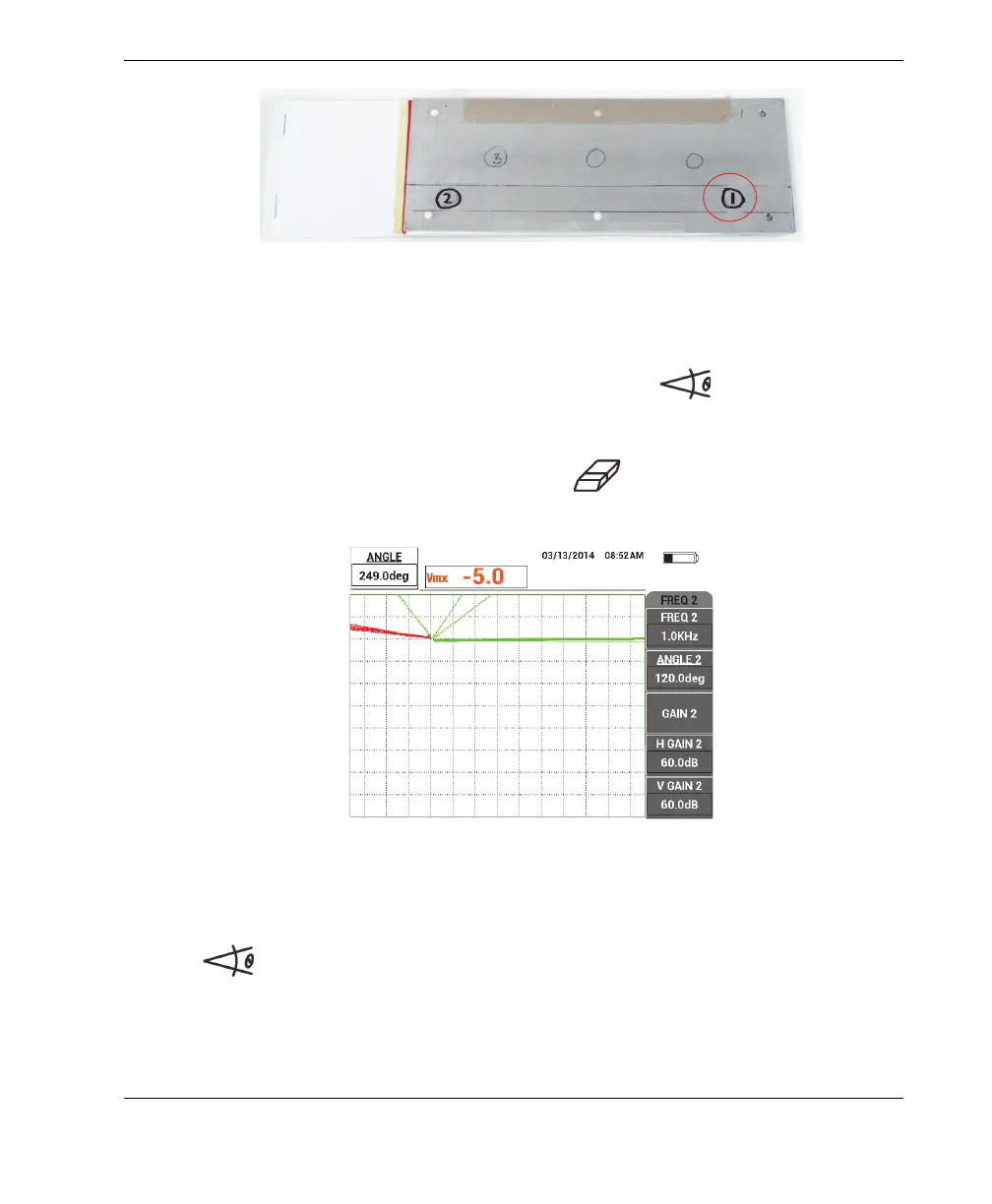

Figure 5‑100 Position 1 of the standard
4. Lift the probe into the air, then begin to gently tap the probe on position 1 of the
standard, and, while tapping, press the ANGLE key ( ), and then adjust the
ANGLE (for frequency 1) until the lift-off signal is oriented towards the right side
of the screen (the green signal in Figure 5-101 on page 193).
If necessary, you can press the ERASE key ( ) to clear screen, which may
make it easier to adjust the ANGLE value.
Figure 5‑101 Adjusting the angle of the frequency 1 lift‑off signal
5. While continuing to gently tap the probe on position 1, press the ANGLE key
( ) twice to open the ANGLE 2 parameter, and then adjust the angle of the
frequency 2 lift-off signal until it also is oriented towards the right side of the
screen, superposed on the frequency 1 signal (see Figure 5-102 on page 194).
