DMTA-10040-01EN, Rev. E, February 2018
NORTEC PC Software 305

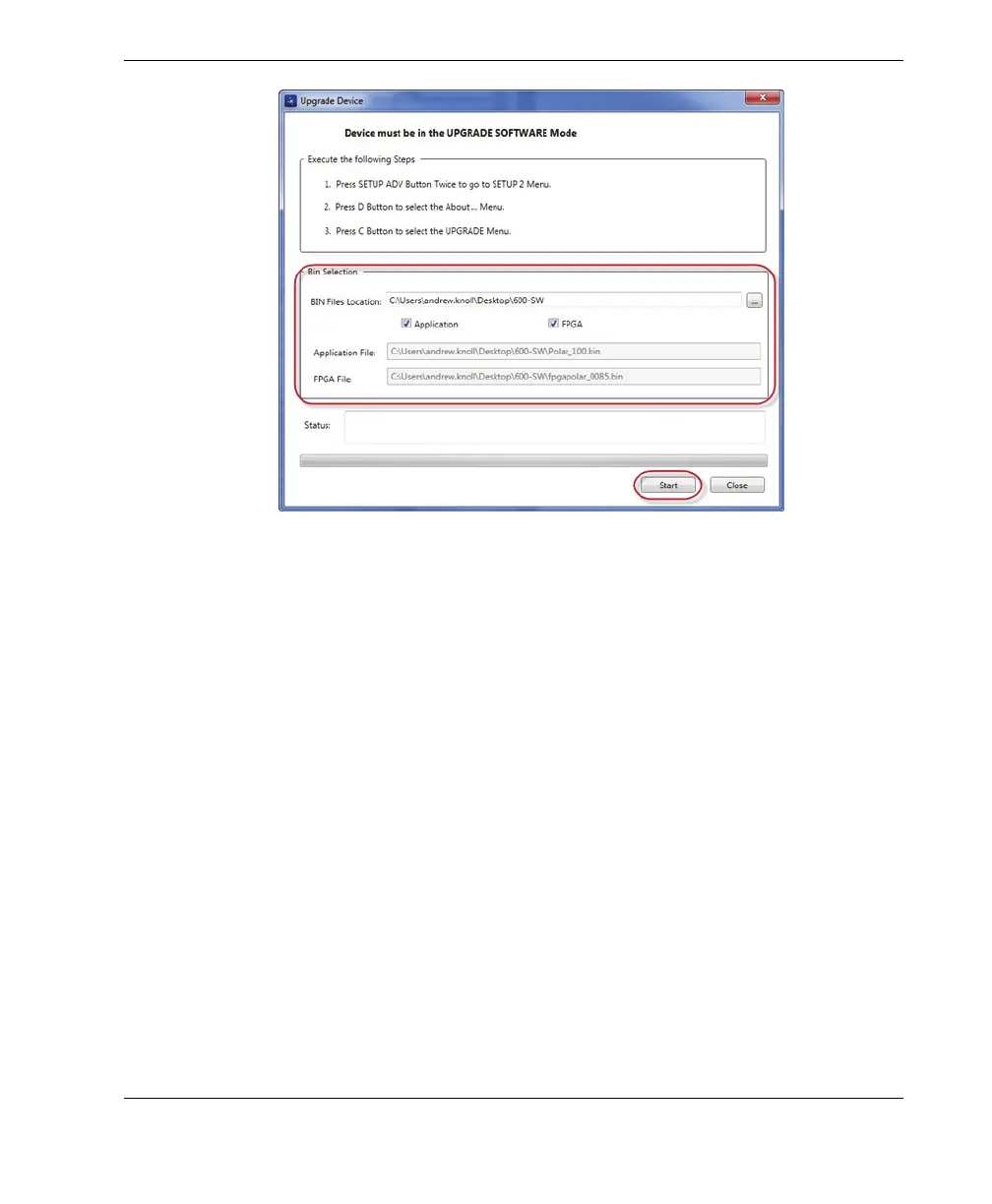

Figure 6‑13 The Upgrade Device dialog box
7. Under Bin Selection in the Upgrade Device dialog box, choose the location of the
NORTEC 600 update software, and then select the Application and FPGA check
boxes (see Figure 6-13 on page 305).
8. Click Start to begin the update.
9. When the software update process has been completed, turn off the NORTEC 600
instrument, and then turn it back on again to activate the upgrade.
6.4 Upgrading the Instrument Software without NORTEC PC
If you are using NORTEC 600 software version 1.10 or higher, it is possible to
upgrade the NORTEC 600 software by copying the upgrade files onto the
microSD card. This way, NORTEC PC is not required. An upgrade using the
microSD card is considerably faster than an upgrade using NORTEC PC.
To upgrade the NORTEC 600 software
1. Ensure that your NORTEC 600 instrument is turned off.
