DMTA-10040-01EN, Rev. E, February 2018
Chapter 5166

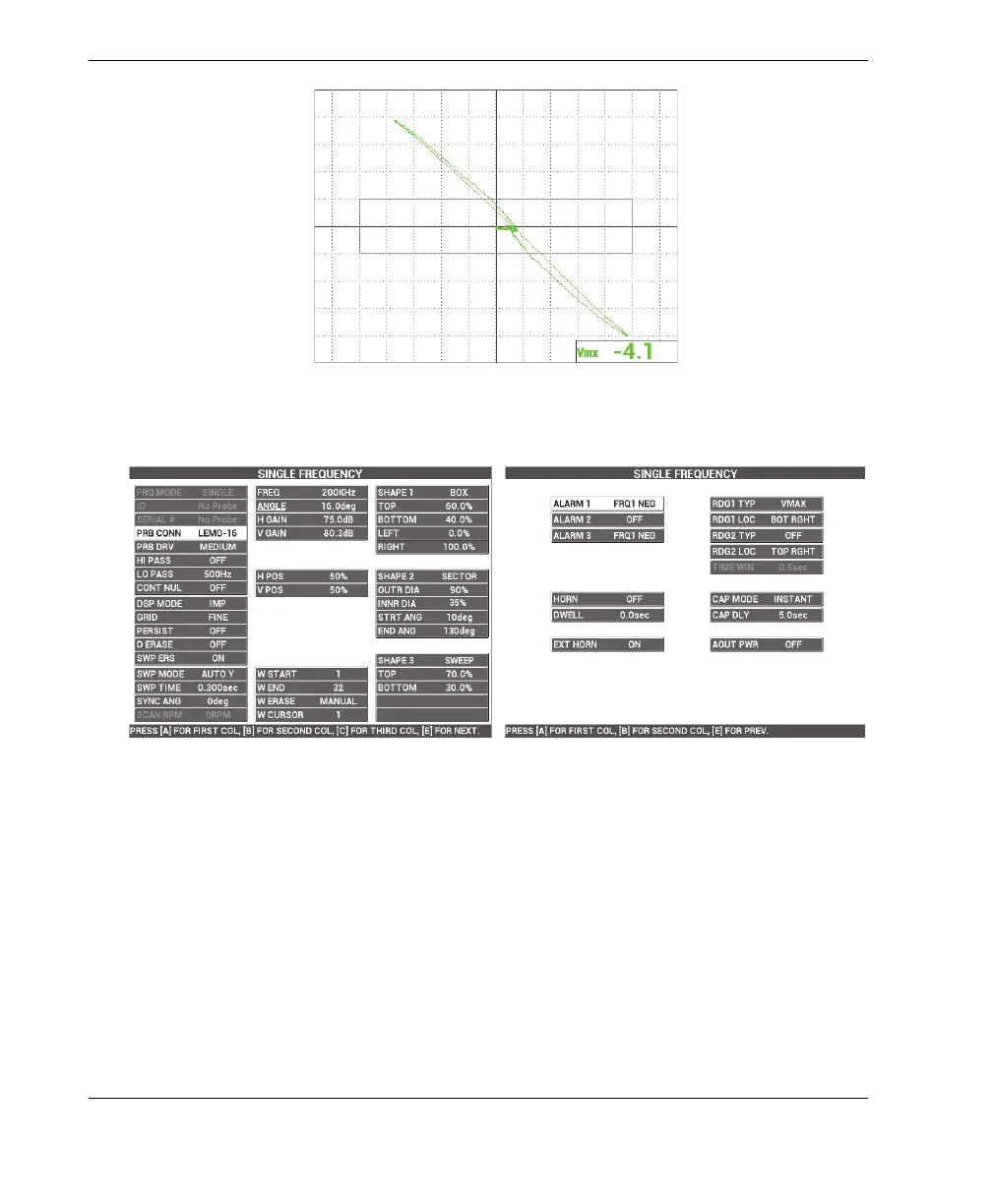

Figure 5‑61 The signal after fine tuning
Figure 5‑62 The list of all parameters
5.1.8 Inspecting Critical Fastener Holes with a Controlled Translation
(Indexing) Scanner — NORTEC 600S and NORTEC 600D Models
This section contains a procedure for inspecting critical fastener holes using Olympus
indexing rotating scanner model PS5-AL. The NORTEC 600 includes a very useful
waterfall cursor function, which enables you to easily estimate the location of defects
in aircraft skin assemblies.
The following products are used in this procedure:
