1.6.2 Connectors
The NORTEC 600 instrument contains several types of connectors for hardware
components.
1.6.2.1 Probe and BNC Connectors
The NORTEC 600 instrument is supplied with a 16-pin LEMO (PROBE) connector
and a BNC connector.
The PROBE (LEMO) and BNC connectors are located at the top of the instrument, on
the left-hand side. The two connectors are easily accessible from the front of the
instrument (see Figure 1-21 on page 42).

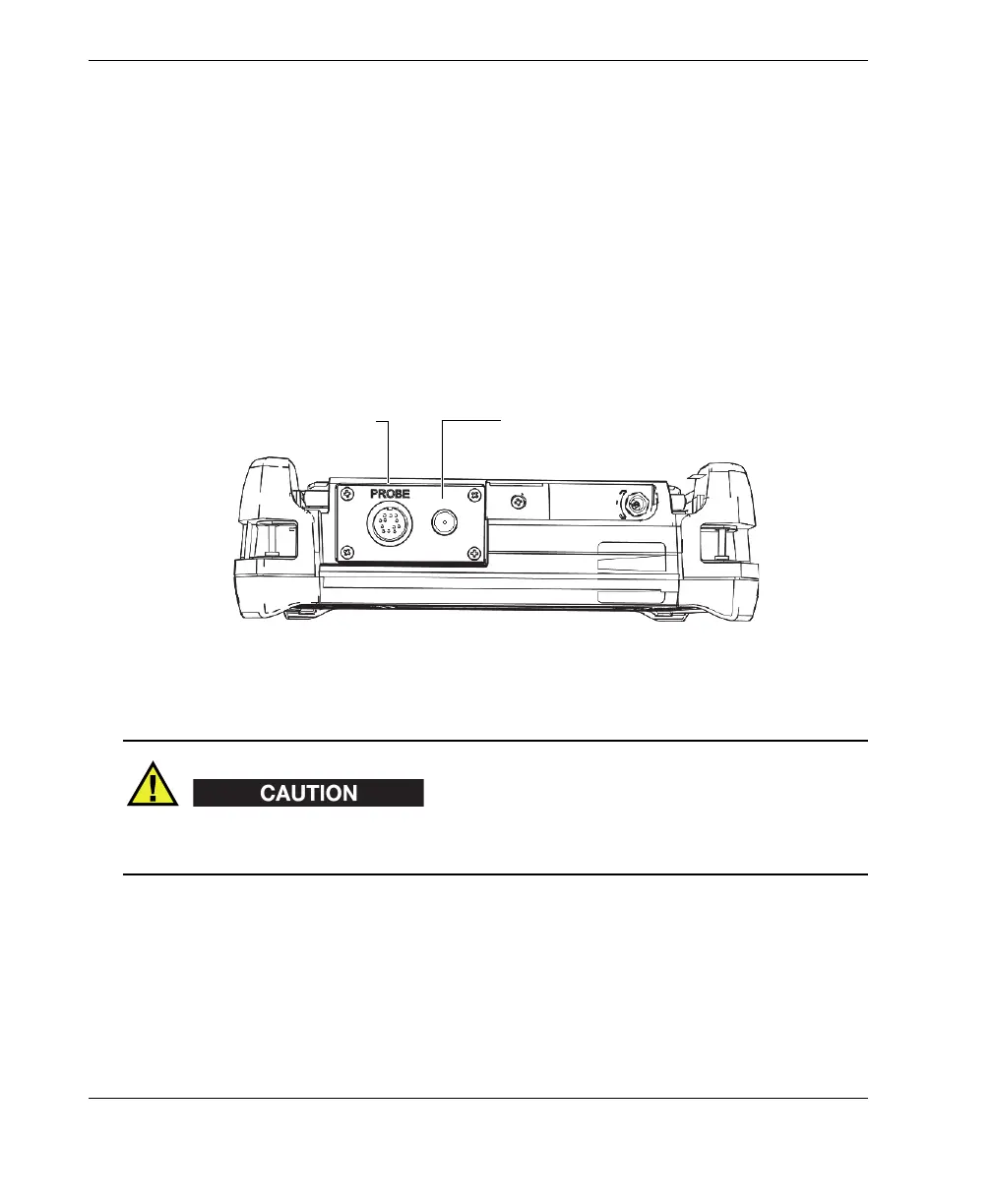

Figure 1‑21 Location of the PROBE (LEMO) and BNC connectors
Do not allow metallic or foreign objects to enter the device through connectors or any
other openings. Otherwise, an electric shock or malfunction may result.
1.6.2.2 Input/Output (I/O) and VGA OUT Connectors
The I/O and the VGA OUT connectors are located at the back of the instrument, in the
upper section (see Figure 1-22 on page 43). A rubber cover protects each connector.
BNC connector
PROBE connector
