Olympus nortec 600 - Figure 5-226 Example of Lower Signal Lobe When Pulling the Probe over a Flaw; Figure 5-227 the Scan Signal of the Thru-Wall Hole

DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 283

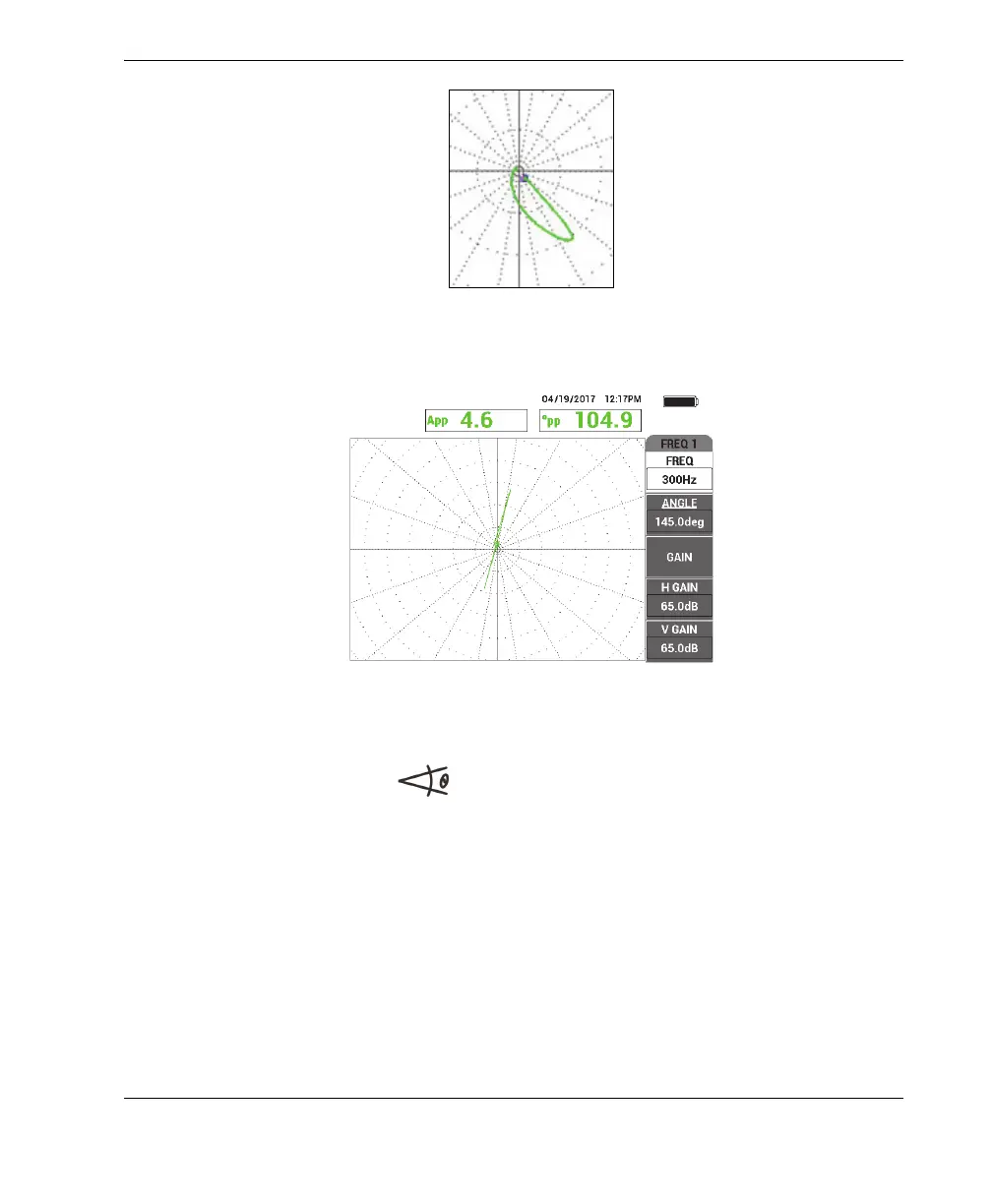

Figure 5‑226 Example of lower signal lobe when pulling the probe over a flaw
Figure 5‑227 The scan signal of the thru‑wall hole
3. Press the ANGLE key ( ), and then rotate the signal until the hole signal is
vertical (see Figure 5-228 on page 284).
