DMTA-10040-01EN, Rev. E, February 2018
Chapter 5134

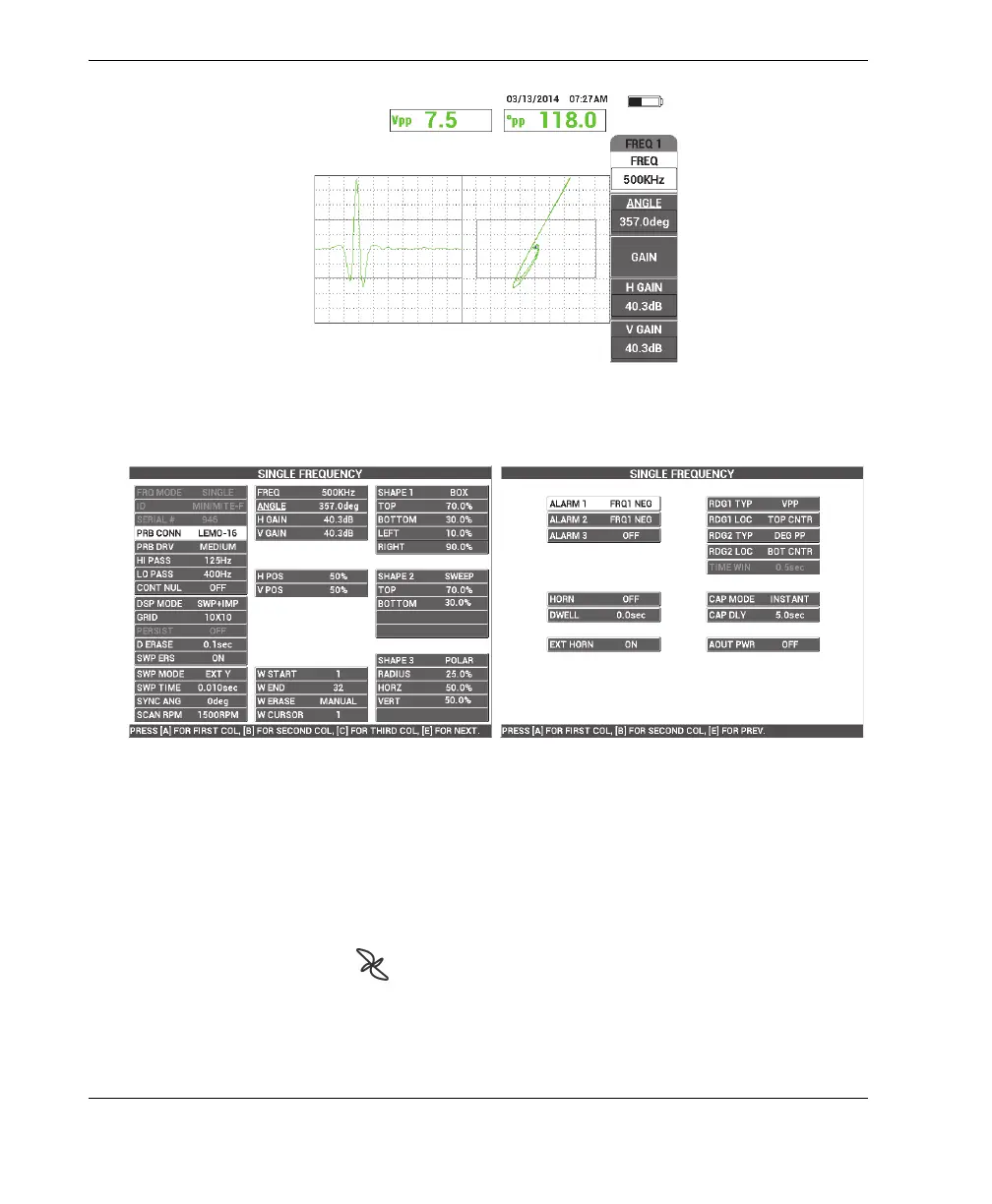

Figure 5‑19 An example display for a steel hole
Figure 5‑20 The list of all parameters in ferromagnetic material
Filter Type — Figure 6 or Figure 8 Signals
The most recent digital filtering technology used on the NORTEC 600 includes
improvements to the filter system. The NORTEC 600 features a new parameter,
named FILT TYP (filter type), which is accessed using the C key—after pressing the
MAIN FILTER menu key ( ) three times. This parameter determines the way the
signal is distorted (or not distorted) in the impedance plane.
