DMTA-10040-01EN, Rev. E, February 2018
Instrument Overview 43

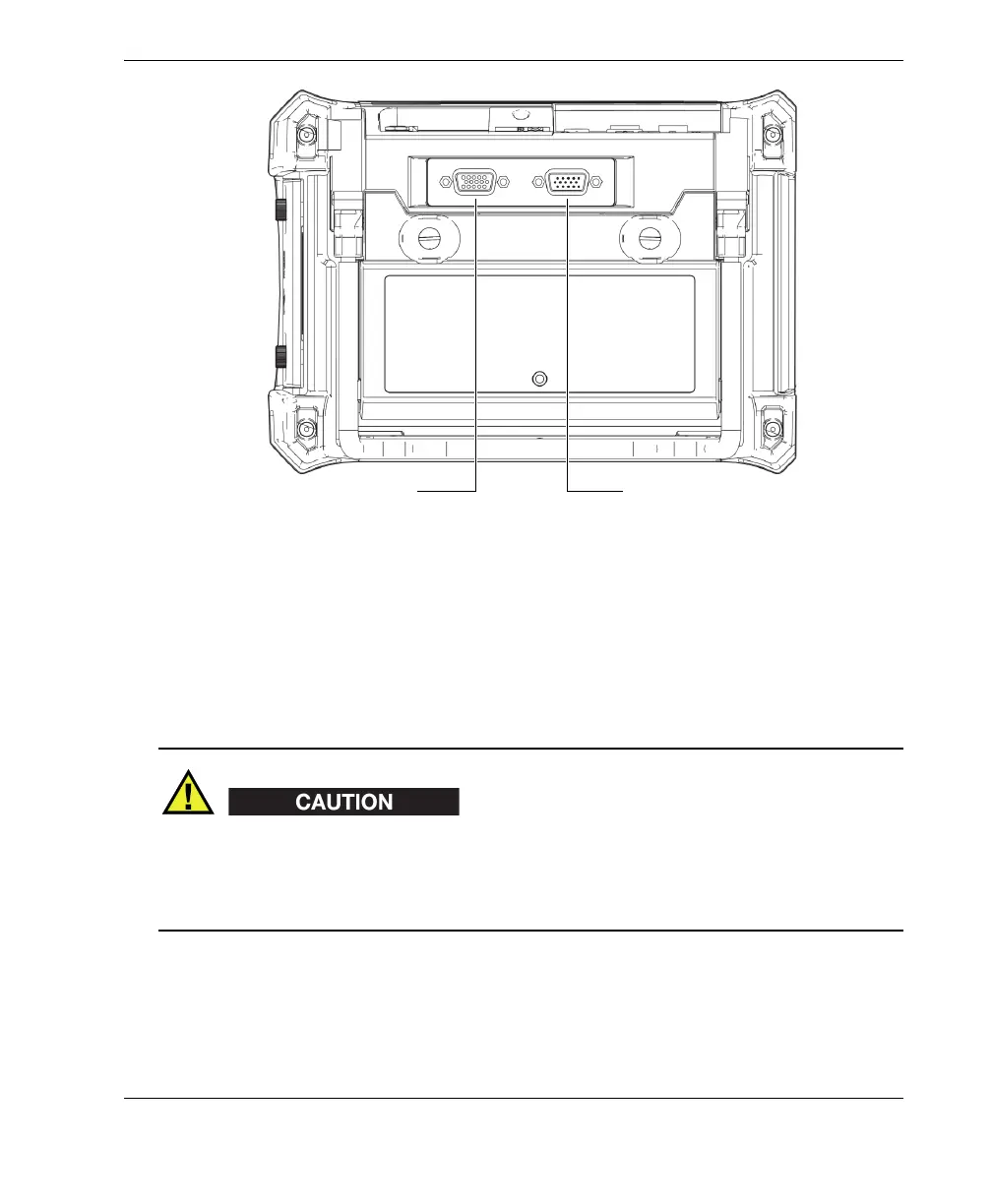

Figure 1‑22 The VGA OUT and I/O connectors
The VGA OUT connector allows the user to connect the instrument to a standard
analog computer monitor. The I/O connector is used to connect an external horn or, if
necessary, to connect an external control for integrating the NORTEC 600 into a
system. For PC communication details, see “microSD and USB Port” on page 44.
Do not expose the instrument to harsh and wet environments while the I/O or the
VGA OUT connectors are not protected by their rubber covers. To prevent connector
corrosion and damage to the instrument, keep the rubber protective covers on the
connectors when no cable is connected.
VGA OUT connector
I/O connector
