To calibrate the signals
1. Place the probe between two notches on the standard, position the longest face of
the probe tip (see Figure 5-32 on page 143) perpendicularly to the notches, and
then press the A-LIFT NULL key ( ).

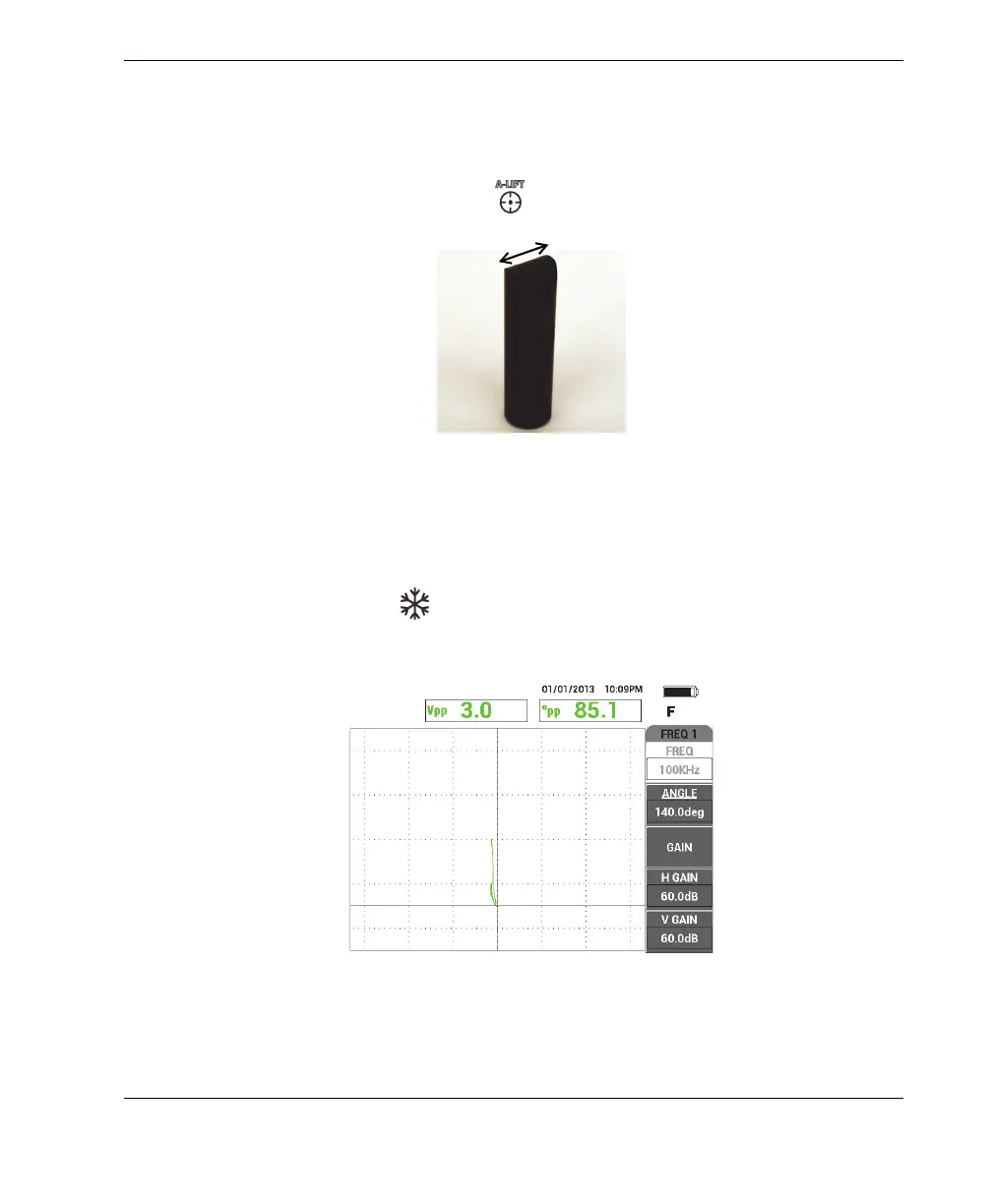

Figure 5‑32 The longest face of the probe tip
2. With the longest face of the probe tip oriented perpendicular to the notches,
inspect the 1.0 mm (0.04 in.) notch.
3. Press the FREEZE key ( ).
The resulting signal is shown in Figure 5-33 on page 143.
Figure 5‑33 The signal on the notch
