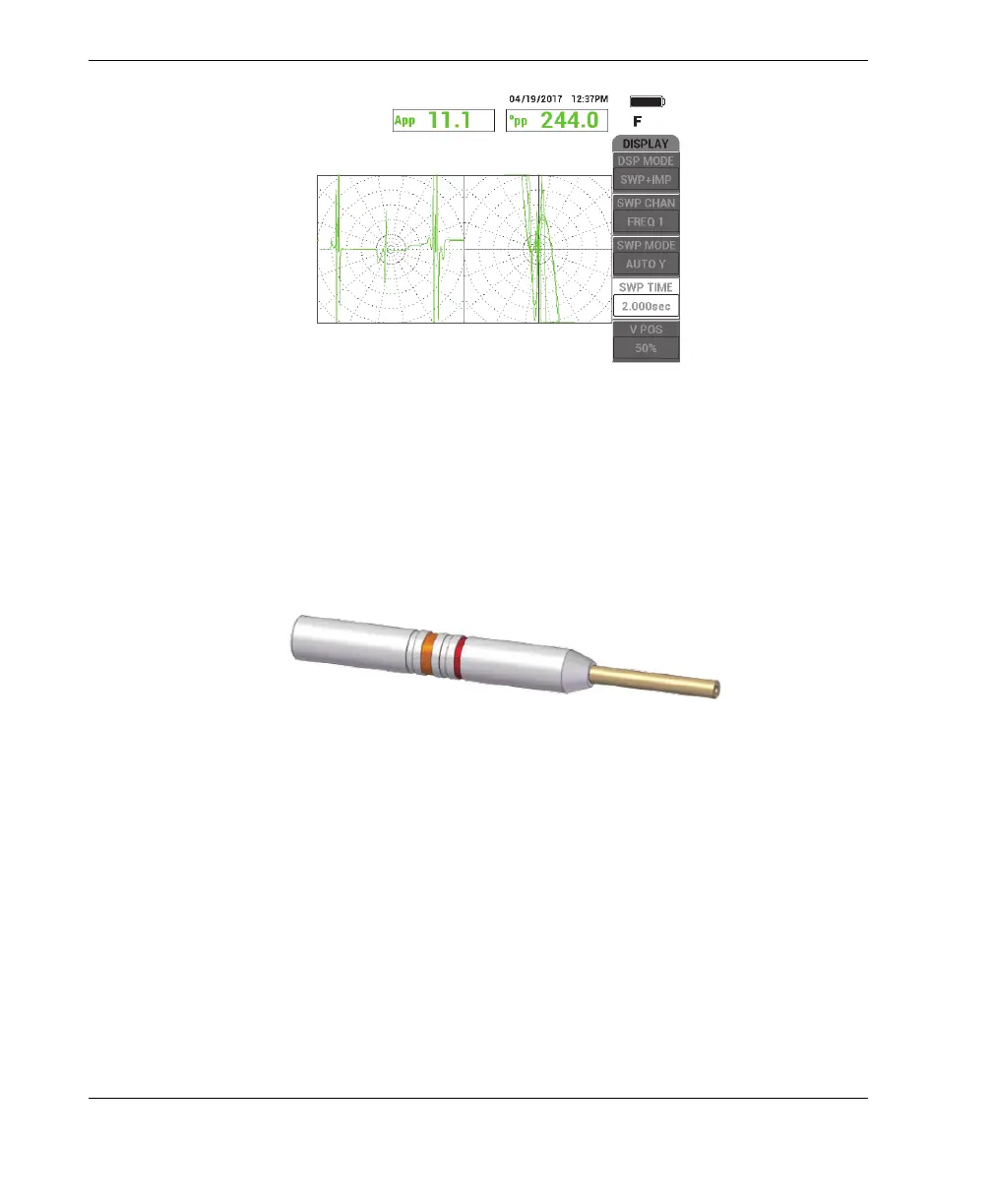

Figure 5‑231 The SWP + IMP display after inspecting the entire tube
5.4.6 NFT Erosion and Corrosion (Absolute) — NORTEC 600D Model
In this near-field testing (NFT) application, an absolute configuration is used to
identify volumetric or gradual internal defects such as erosion and corrosion in finned
air-cooler tubing. An example NFT probe is shown in Figure 5-232 on page 286.
Figure 5‑232 An NFT probe with an absolute exciter‑pickup configuration
The absolute configuration helps quantify the amount (depth) of internal wall loss in
tubing (see Figure 5-233 on page 287). The NORTEC 600 simply measures the
corresponding amplitude of the absolute liftoff signal using the divisions of the
impedance plane grid.
