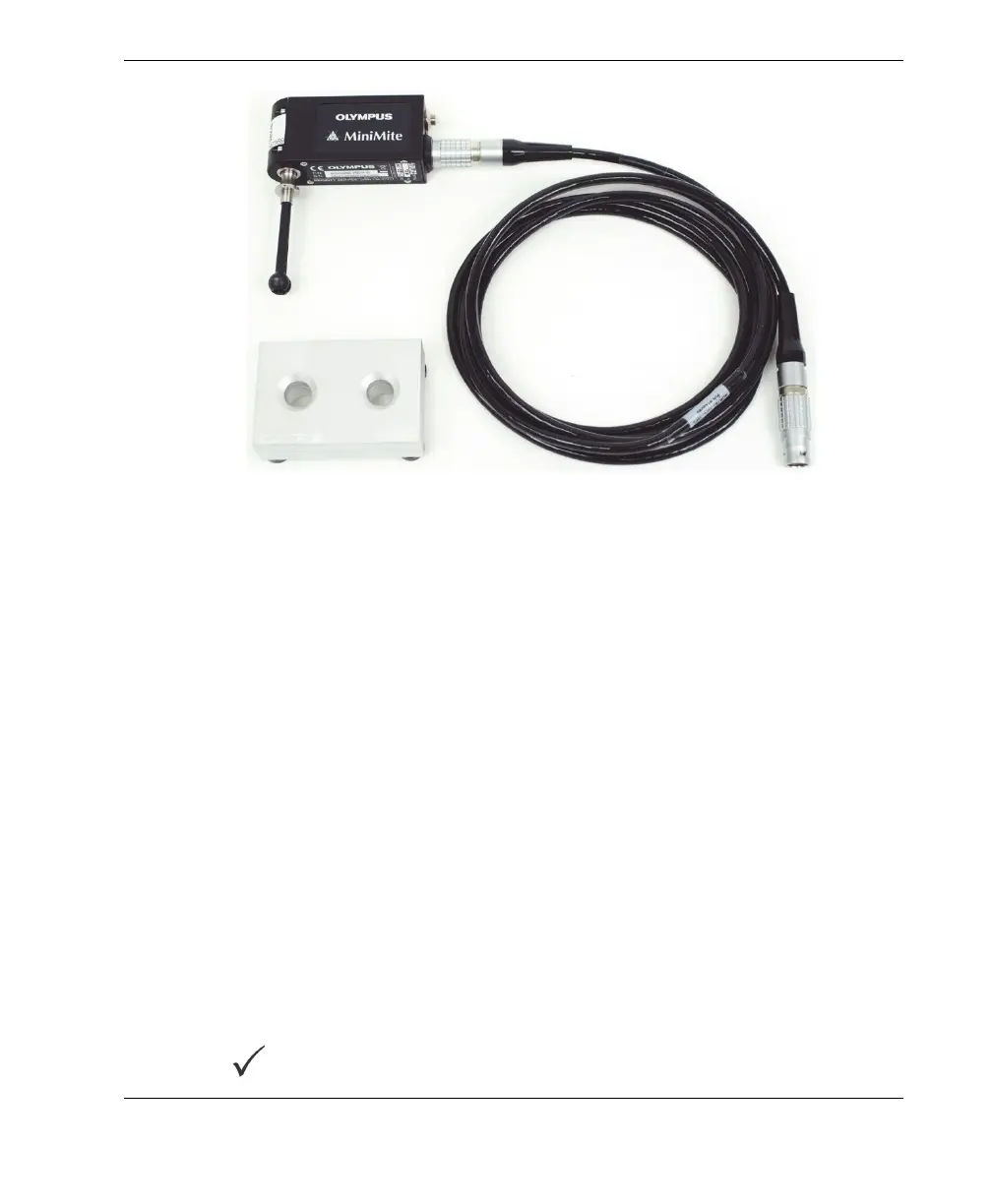

Figure 5‑10 Materials—fastener holes with rotating scanner
The following products are used in this procedure:
• MiniMite Fischer rotating scanner; P/N: 9744738 [U8750012]
• Rotary-hole probe: self-adjusting, Universal type, with Bell backshell, 12.70 mm
(0.500 in.) diameter, self-expanding, 50.8 mm (2 in.) working length; operating
frequency 200 kHz to 3 MHz, Fischer 4-pin connector, reflection differential coil
configuration; P/N: SUB-28-32 [U8600488]
• Eddy current hole standard for demonstration purposes (not certified); P/N:
RSTD-10135 [U8863213]
To set the initial NORTEC 600 configuration
1. Connect the probe to the rotating scanner (align the red marks on the connectors),
and connect the scanner cable to both the rotating scanner and the NORTEC 600
PROBE connector.
2. When prompted, select CONTINUE (A key) to accept the PowerLink settings.
3. Select the application:
If you are using software version 1.09 or higher, the application selection
menu automatically opens. Select Bolt Hole with the knob, and then press
to accept.
