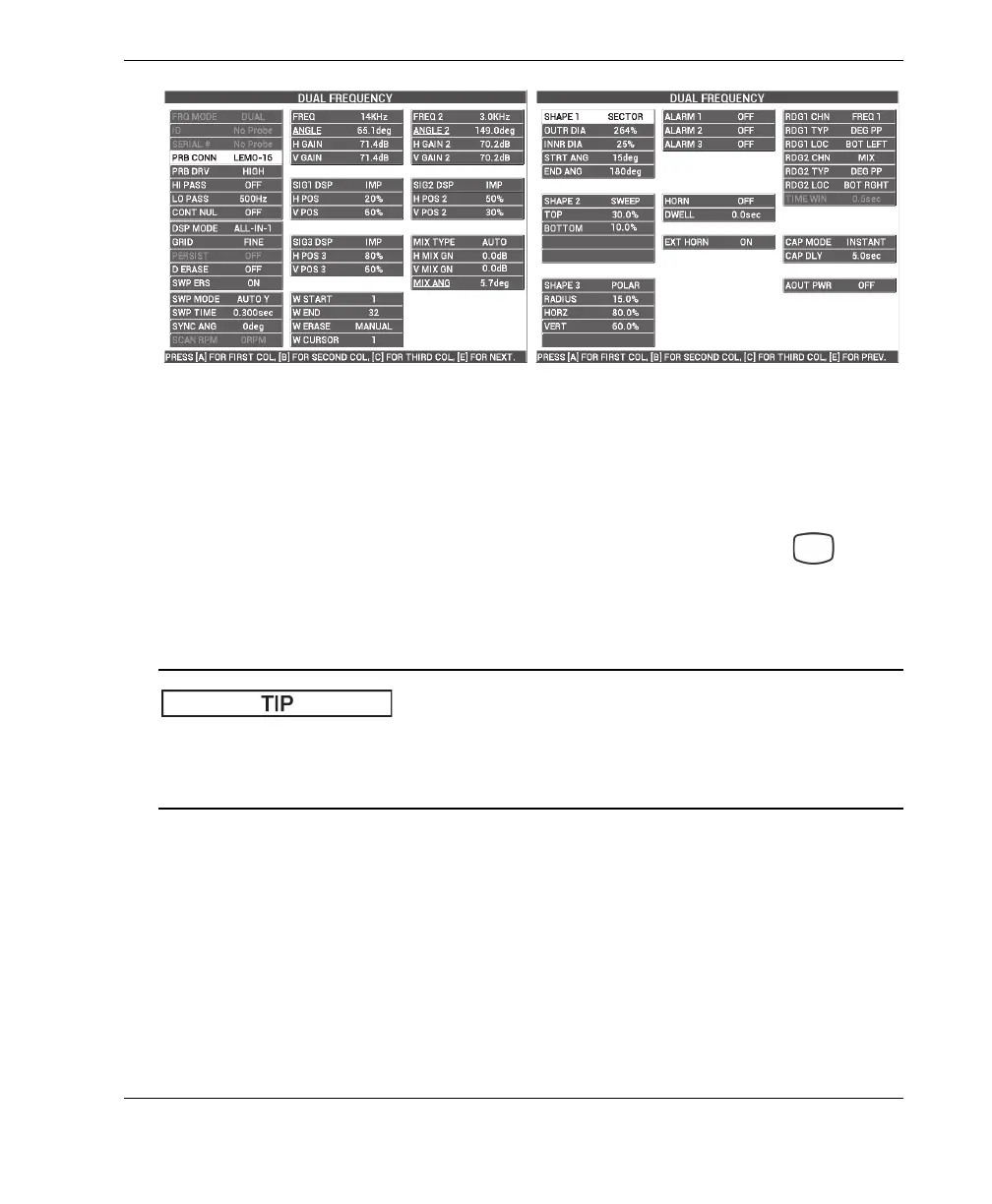

Figure 5‑149 The list of all parameters
To activate alternate displays
1. Depending on your requirements, change the display parameters to display the
frequency 2 as a strip chart (sweep) by pressing the DISP menu key ( ) three
times and setting the FRQ2 DSP (A key) to AUTO Y (see Figure 5-150 on
page 226).
If necessary, adjust the SWP TIME (C Key) to display a longer sweep length.
Display the full tube length so that you can count the tube supports, and set the
VPOS 2 (E key) as desired; for example, you can separate the signals so that they do
not interfere with each other.
