DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 163
To achieve an adequate fine ANGLE adjustment, it may be necessary to switch to
the fine-adjustment mode by pressing the Enter key ( ) while adjusting the
ANGLE.

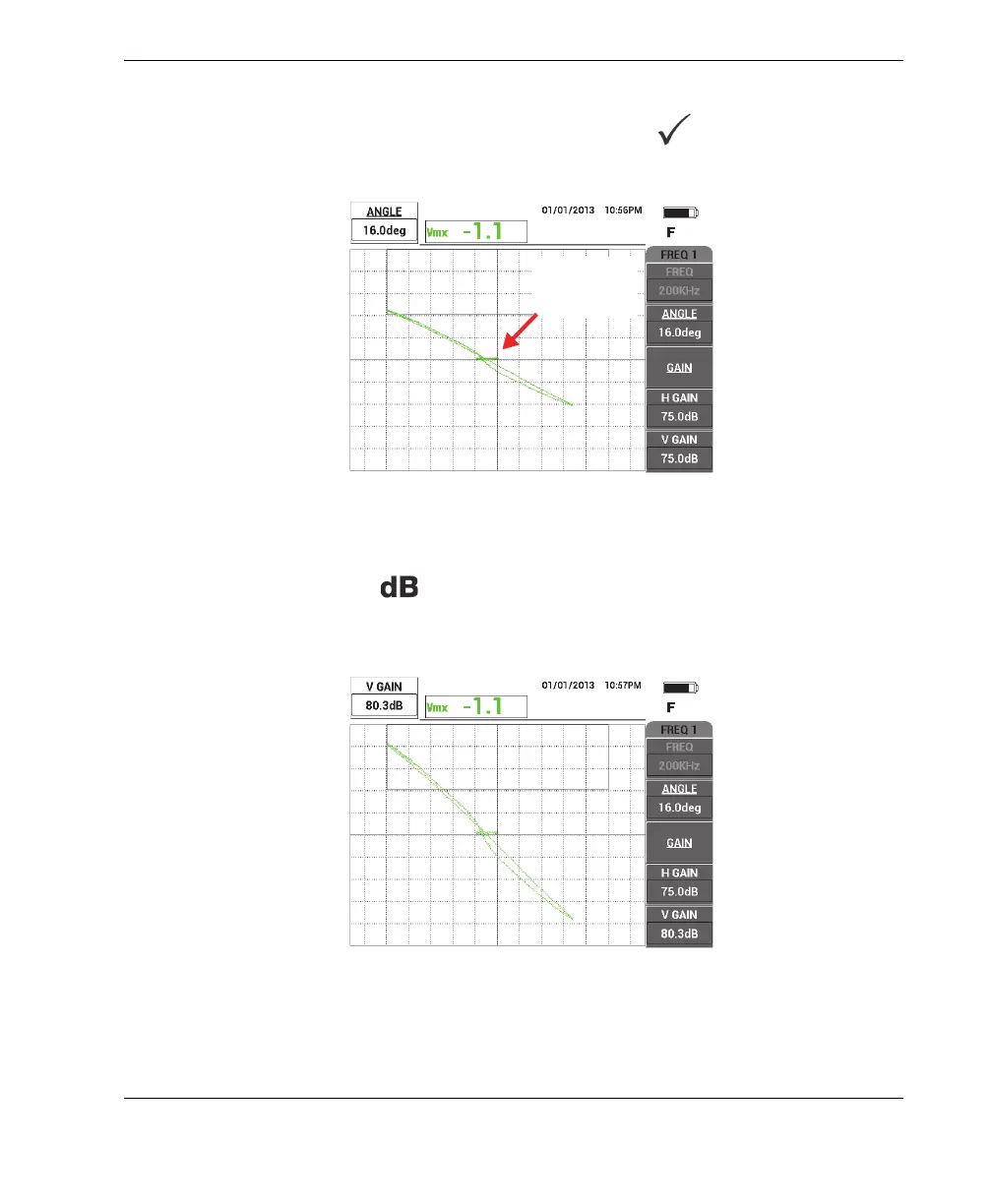

Figure 5‑57 Setting the signal as close as possible to horizontal
7. Press the GAIN key ( ) 3 times to access the V GAIN parameter, and then
increase the vertical gain with the knob until the signals reach about 80 % of the
screen height (see Figure 5-58 on page 163).
Figure 5‑58 The signals extending vertically across the screen
Lift-off after
horizontal
adjustment
