Olympus nortec 600 - Figure 5-110 Adjusting the H MIX GN Value; Figure 5-111 Adjusting the V MIX GN Value

DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 199

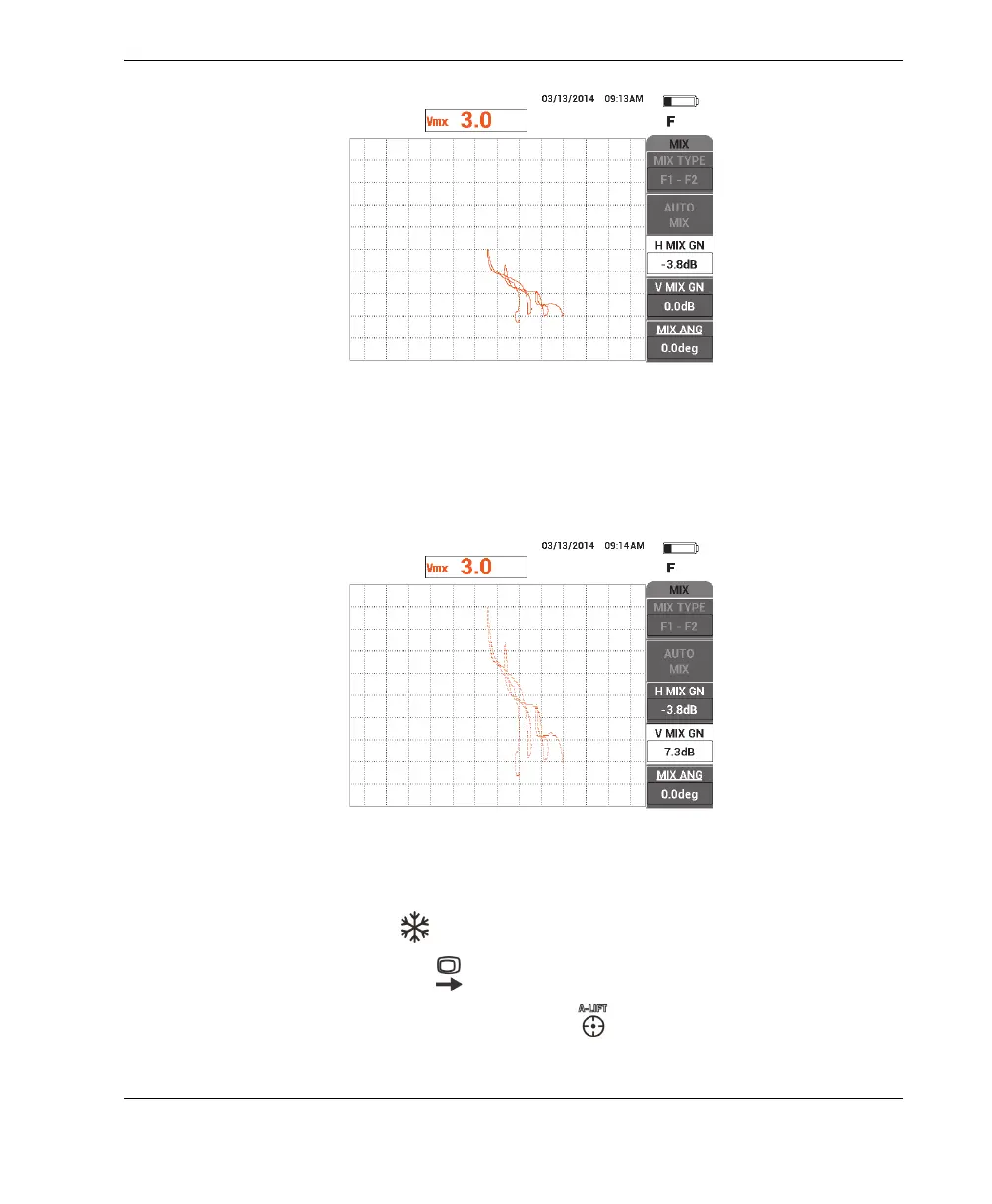

Figure 5‑110 Adjusting the H MIX GN value
21. Increase the V MIX GN (D key) until the signal’s maximum amplitude reaches
80 % of the screen height (see Figure 5-111 on page 199).
Figure 5‑111 Adjusting the V MIX GN value
22. Press the FREEZE key ( ) to unfreeze the acquisition.
23. Press the FULL NEXT key ( ) to toggle to the full-screen mode.
24. Null the probe with the A-LIFT NULL key ( ) on position 1, and then scan the
three corrosion defects.
