• HPP — Maximum horizontal voltage, peak-to-peak
• VMAX — Maximum vertical voltage from extended null line
• HMAX — Maximum horizontal voltage from extended null line
• DEG PP — Angle of VMAX, peak-to-peak

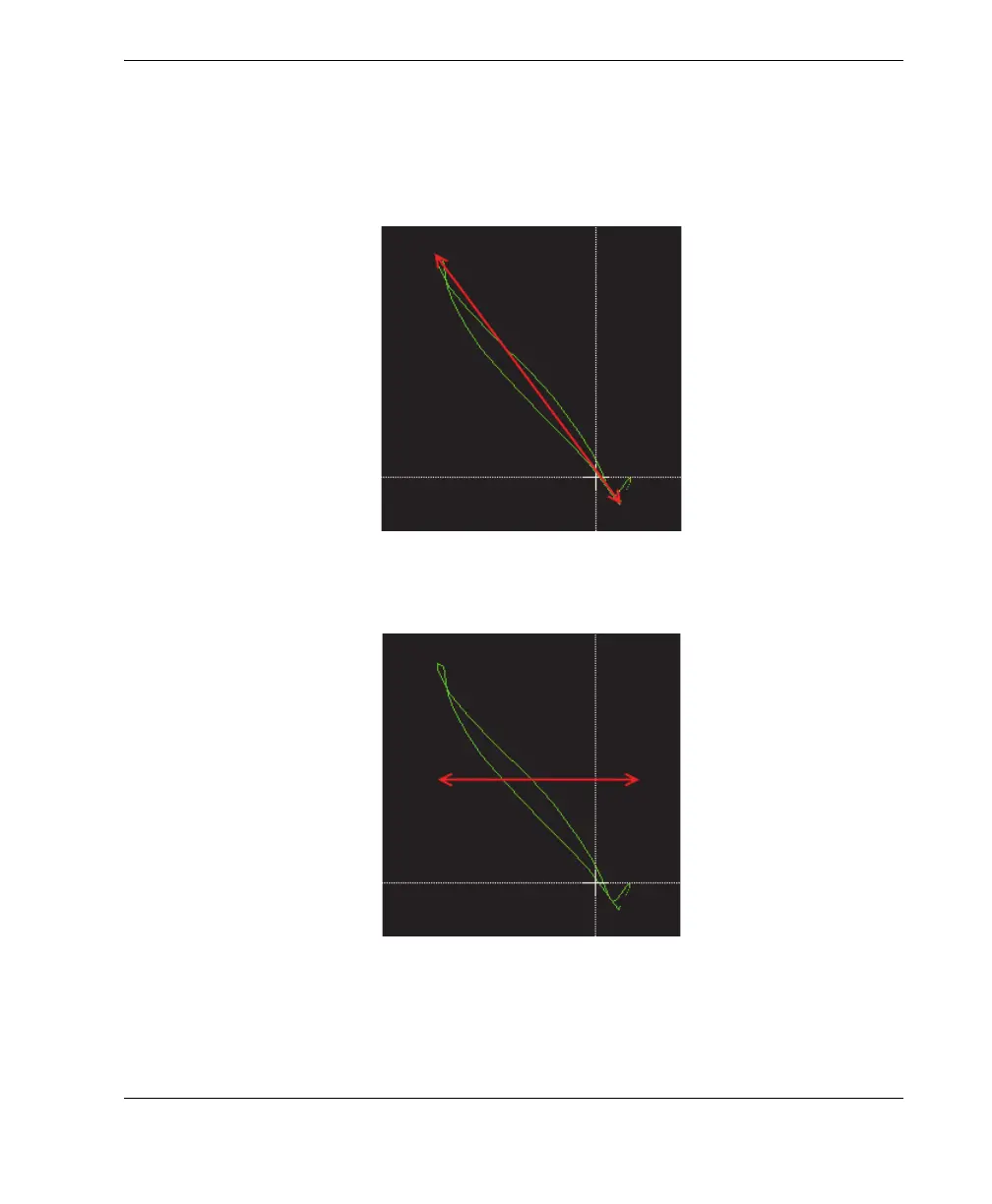

Figure 2‑7 Example of VPP and DEG PP
Figure 2‑8 Example of HPP
Volts P-P
and
Angle P-P
Volts P-P Horz.
