DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 203
Make sure that the guides are properly adjusted for both fastener rows. Failure to
properly center the probe will lead to a very difficult calibration and possibly an
unusable setup.
To set the initial NORTEC 600 configuration
1. Connect the probe and the cable to the PROBE connector on the NORTEC 600.
2. Press the ADV SETUP menu key ( ) once, and select APPL SELECT (A key)
to open the application selection menu. Select Dual Frequency Sub‑Surface with
the knob, then press to accept (see Figure 5-115 on page 203).

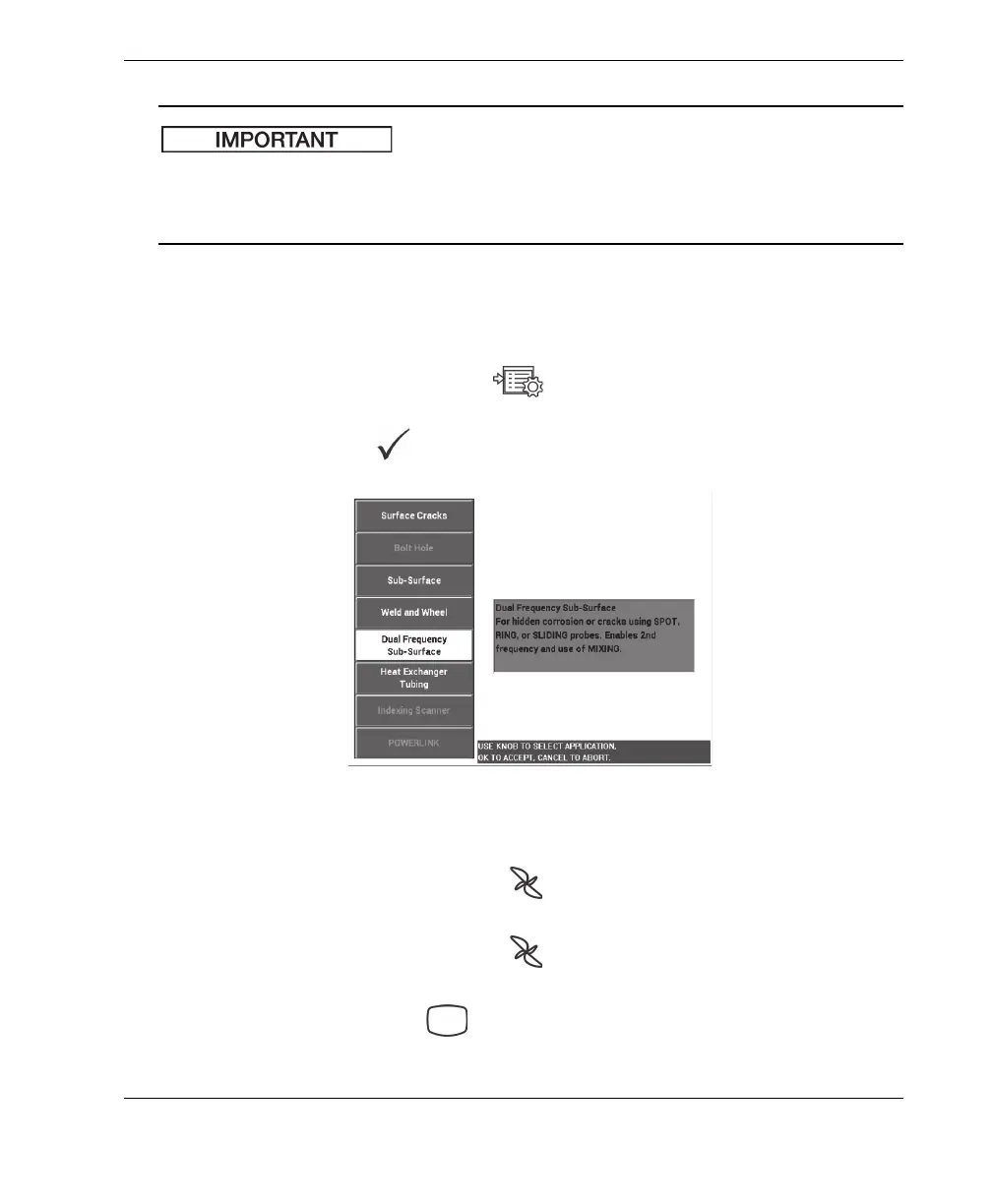

Figure 5‑115 The Dual Frequency Sub‑Surface application
3. Press the MAIN FILTER menu key ( ) four times, and then set the LO PASS
(B key) to 50 Hz using the knob.
4. Press the MAIN FILTER menu key ( ) again, and then set the PRB DRV
(A key) to HIGH.
5. Press the DISP menu key ( ) twice, and then set the POSITION (C key) to
BOT RGHT.
