4. Press the ANGLE key ( ), and then rotate the knob until the notch signal is
oriented vertically (see Figure 5-34 on page 144).

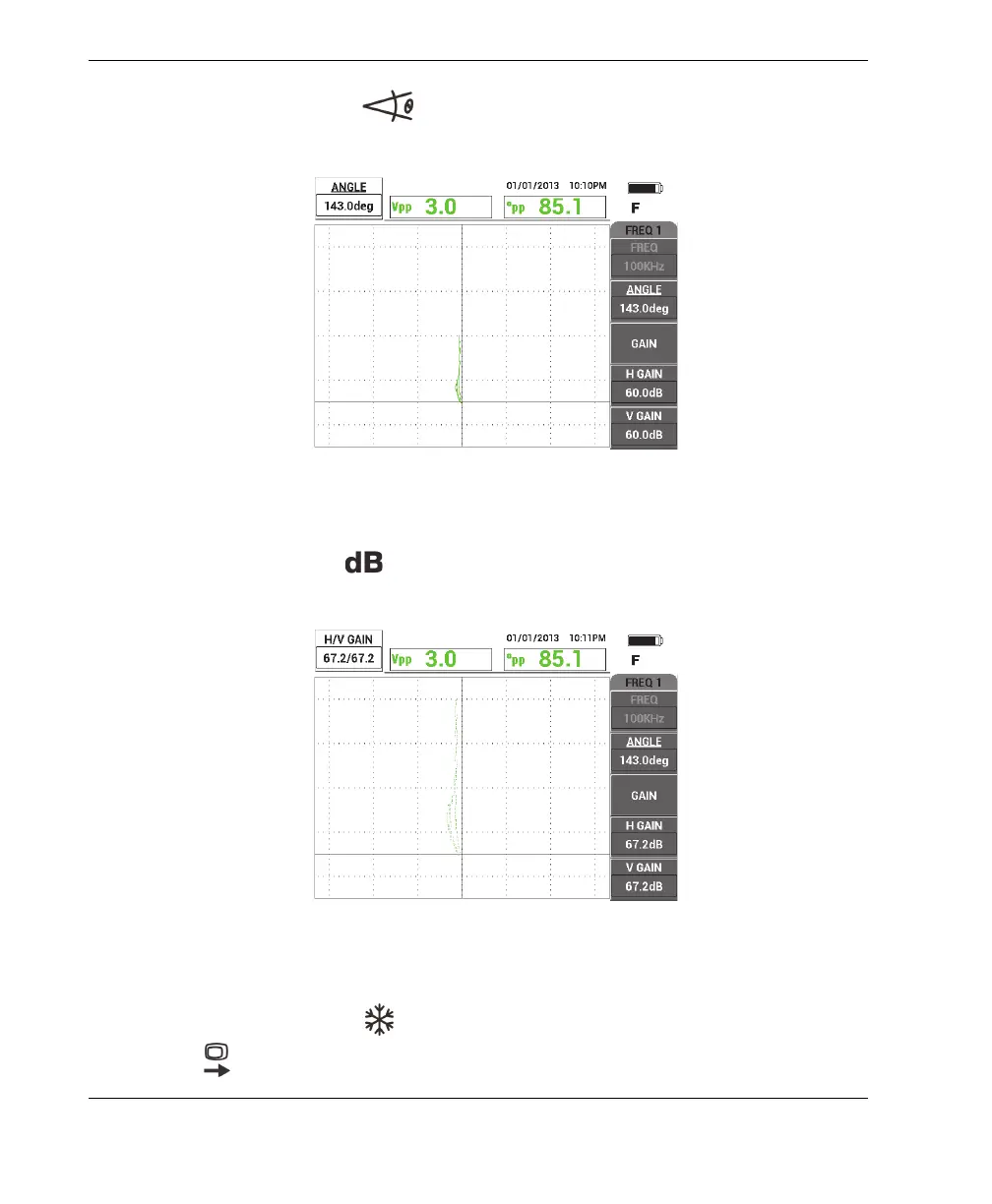

Figure 5‑34 The notch signal oriented vertically
5. Press the GAIN key ( ) once, and adjust the H/V GAIN until the notch signal
reaches about 90 % of the screen height (see Figure 5-35 on page 144).
Figure 5‑35 Adjusting the vertical gain
6. Press the FREEZE key ( ) to unfreeze the acquisition, press the FULL NEXT
key ( ) to toggle to the full-screen mode, place the probe on the standard (the
