Olympus nortec 600 - Figure 5-104 the Frozen Signals; Figure 5-105 Adjusting the Gain for Frequency 1

DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 195

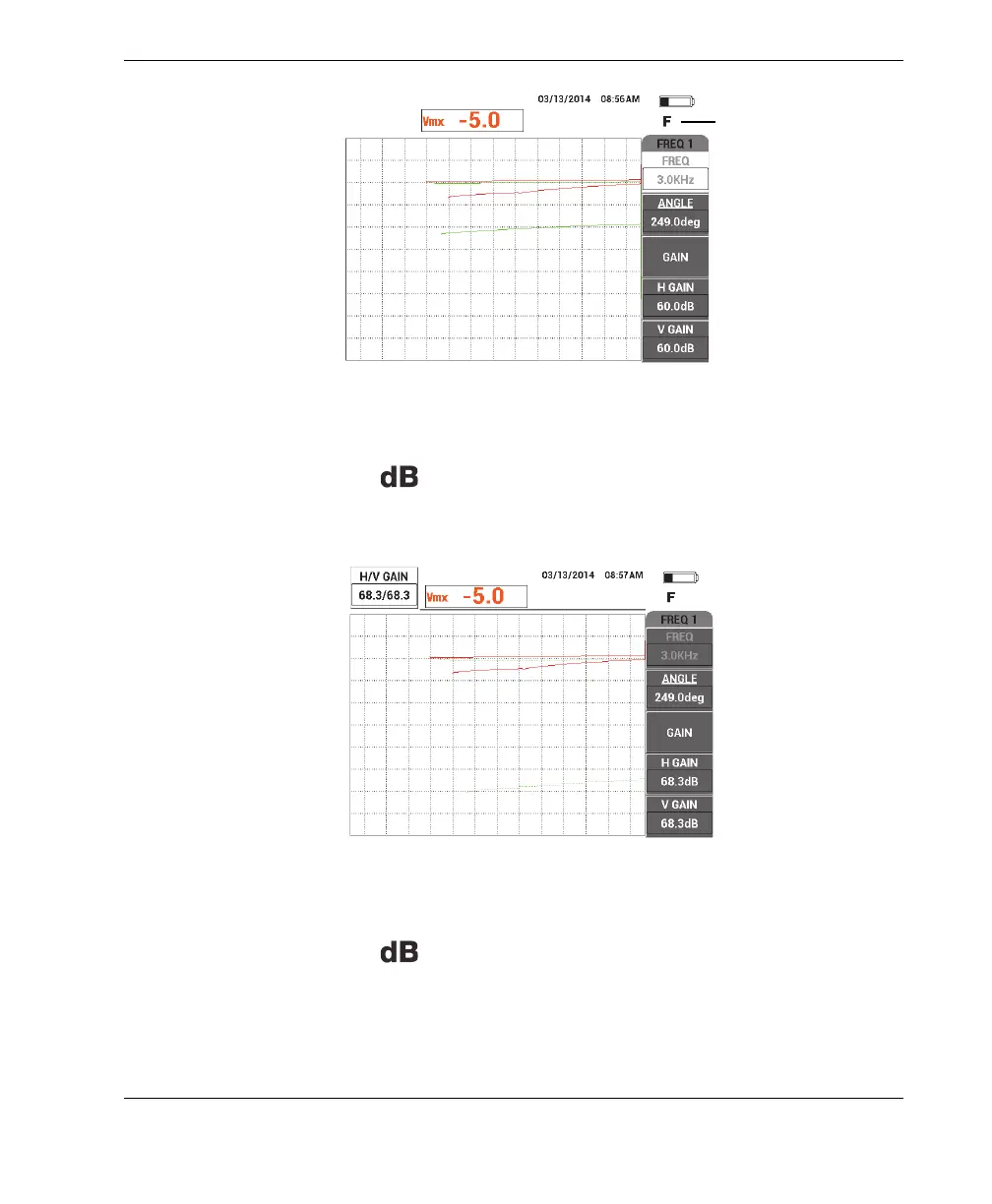

Figure 5‑104 The frozen signals
8. Press the GAIN key ( ), and then increase the frequency 1 gain until the
frequency 1 signal at position 2 is at 20 % of the screen height (see Figure 5-105 on
page 195).
Figure 5‑105 Adjusting the gain for frequency 1
9. Press the GAIN key ( ) three more times, and then increase the frequency 2
gain until the frequency 2 signal at position 2 is also at 20 % of the screen height
(see Figure 5-106 on page 196).
Frozen signal
indication
