Olympus nortec 600 - Figure 5-74 the Section of the Standard Used for Impedance Plane Theory; Figure 5-75 Adjusting the Signal Angle to 90

DMTA-10040-01EN, Rev. E, February 2018
Chapter 5176

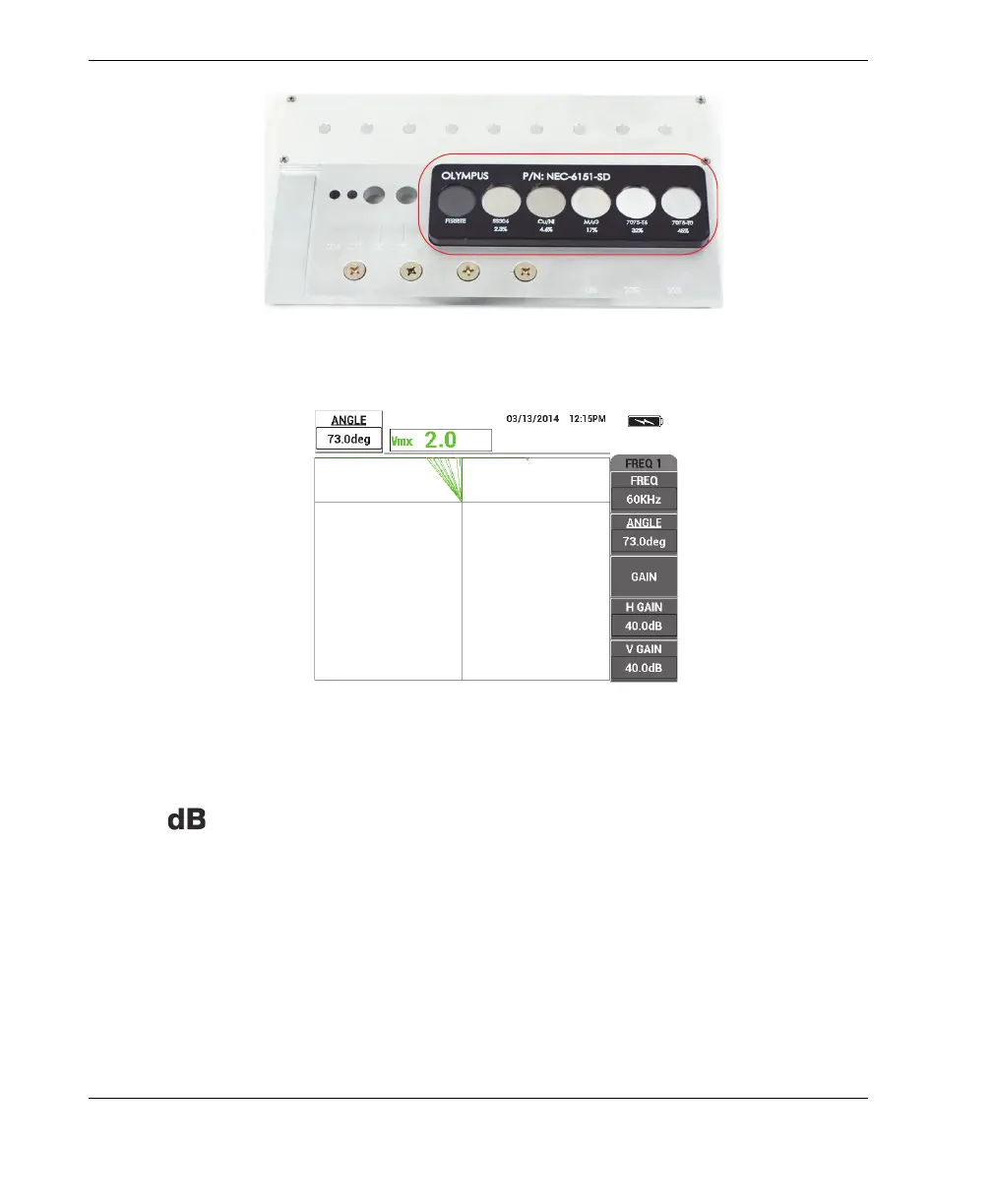

Figure 5‑74 The section of the standard used for impedance plane theory
Figure 5‑75 Adjusting the signal angle to 90°
10. Place the probe on the 45 % conductivity sample, and then press the GAIN key
( ) and decrease the gain until the live dot is within screen area (see
Figure 5-76 on page 177).
