Using the Instrument 295

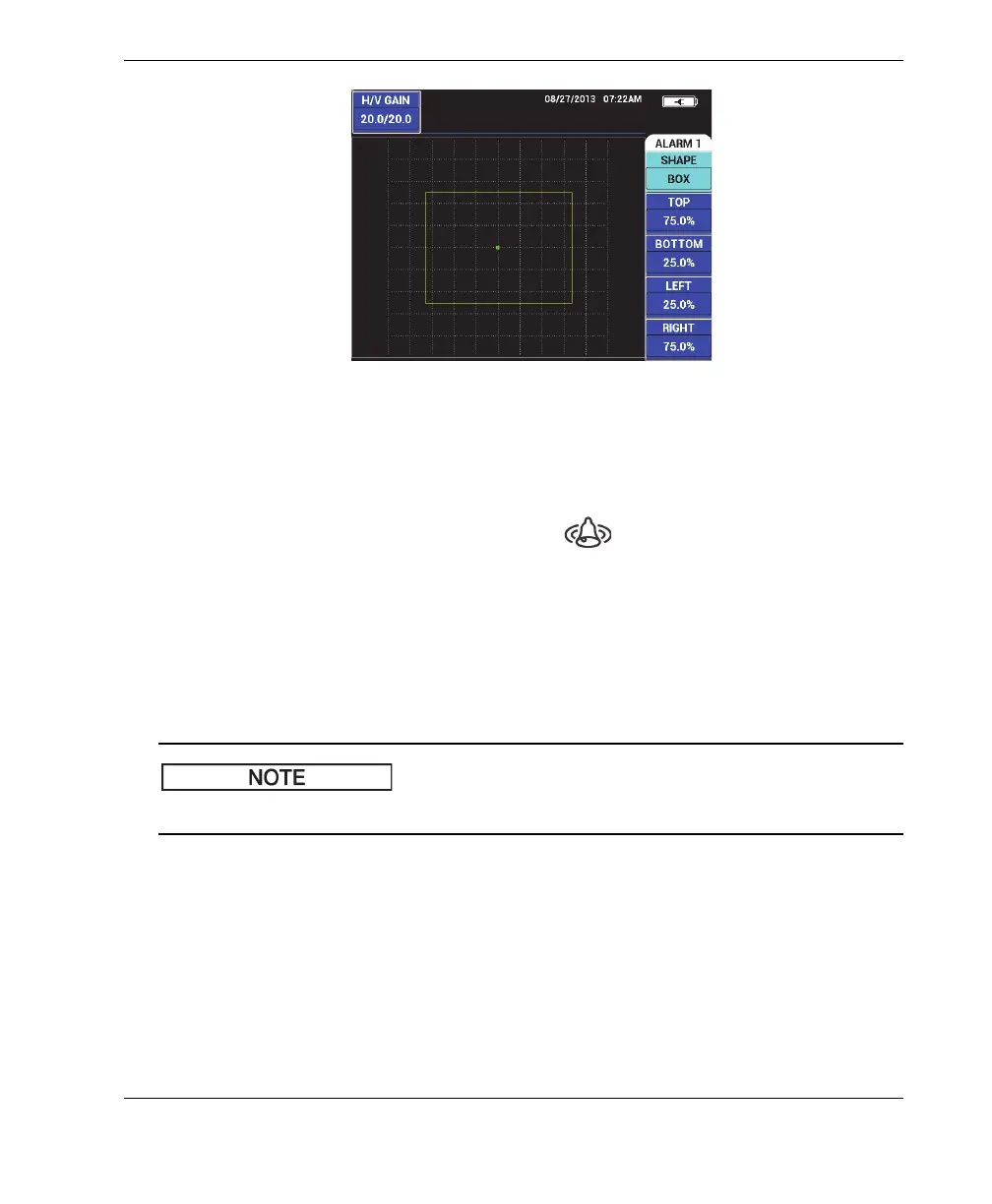

Figure 5‑242 Alarm menu
3. Use the B, C, D, and E keys (as required) to select the position and change the
shape (and size) of the alarm.
4. If necessary, press the ALARM menu key ( ) to access ALARM 2 or ALARM
3, and then change the shape and position by repeating steps 1 through 3.
5.5.3 SWEEP alarm
The sweep alarm’s position can be adjusted vertically and horizontally, but only if the
sweep function is enabled.
The following procedure assumes that ALARM 1 is being used as the sweep alarm.
To adjust the position for the sweep alarm
1. Press the A key, and then use the knob to select the alarm polarity. After the
polarity is selected, a box is displayed on the screen (see Figure 5-243 on
page 296).
