DMTA-10040-01EN, Rev. E, February 2018
Chapter 5210

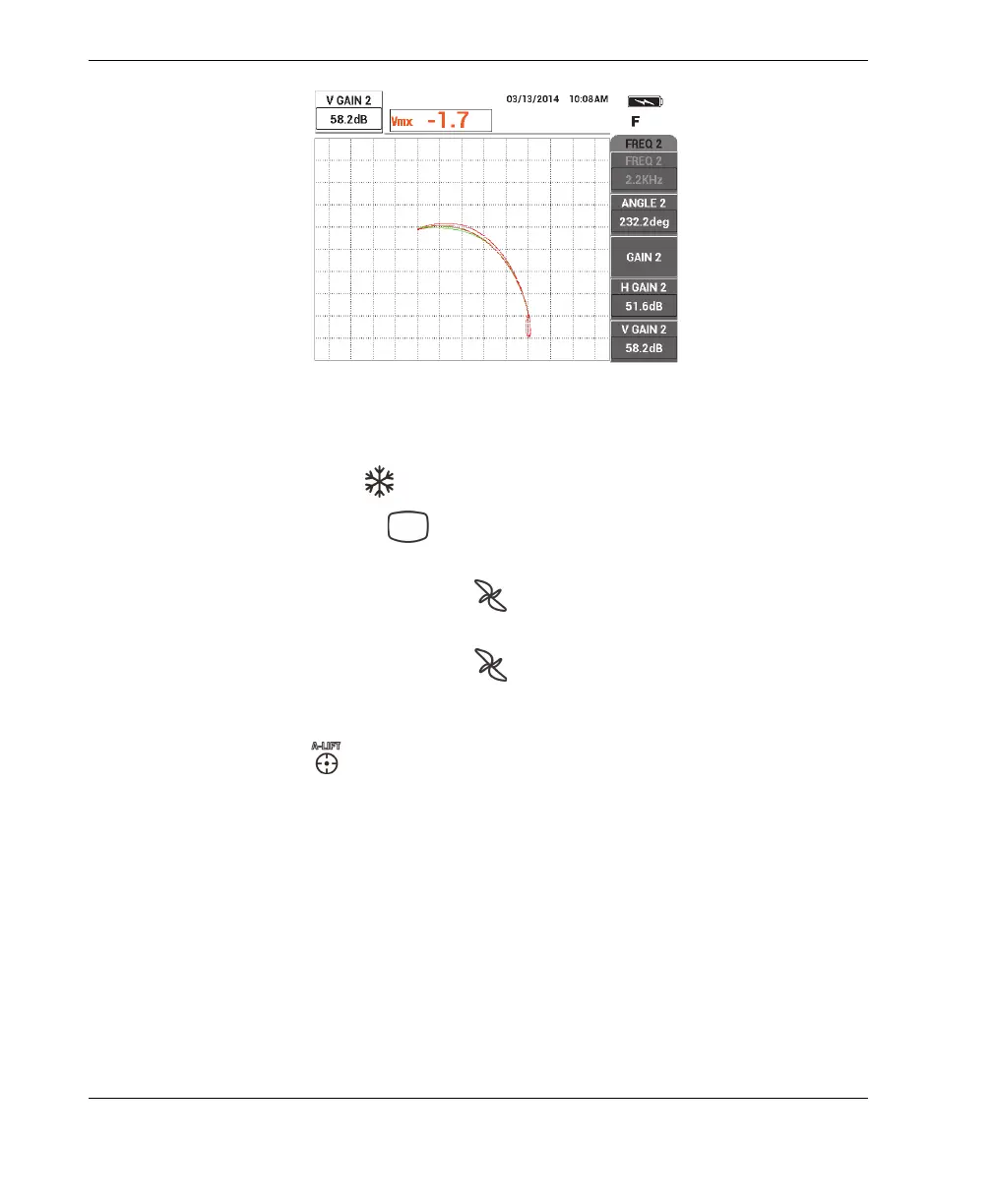

Figure 5‑126 Adjusting the vertical amplitude of the frequency 2 signal
17. Press the FREEZE key ( ) to unfreeze the acquisition.
18. Press the DISP menu key ( ), and then set the DSP MODE (A key) to IMP, the
CHANNEL (B key) to MIX, and the POSITION (C key) to BOT RGHT.
19. Press the MAIN FILTER menu key ( ) three times, and then set the MIX ANG
(E key) to 180deg.
20. Press the MAIN FILTER menu key ( ) repeatedly until the FREQ 2 page is
displayed.
21. Place the probe on position 3 (see Figure 5-127 on page 211), and then press the A-
LIFT NULL key ( ).
