DMTA-10040-01EN, Rev. E, February 2018
Chapter 5206

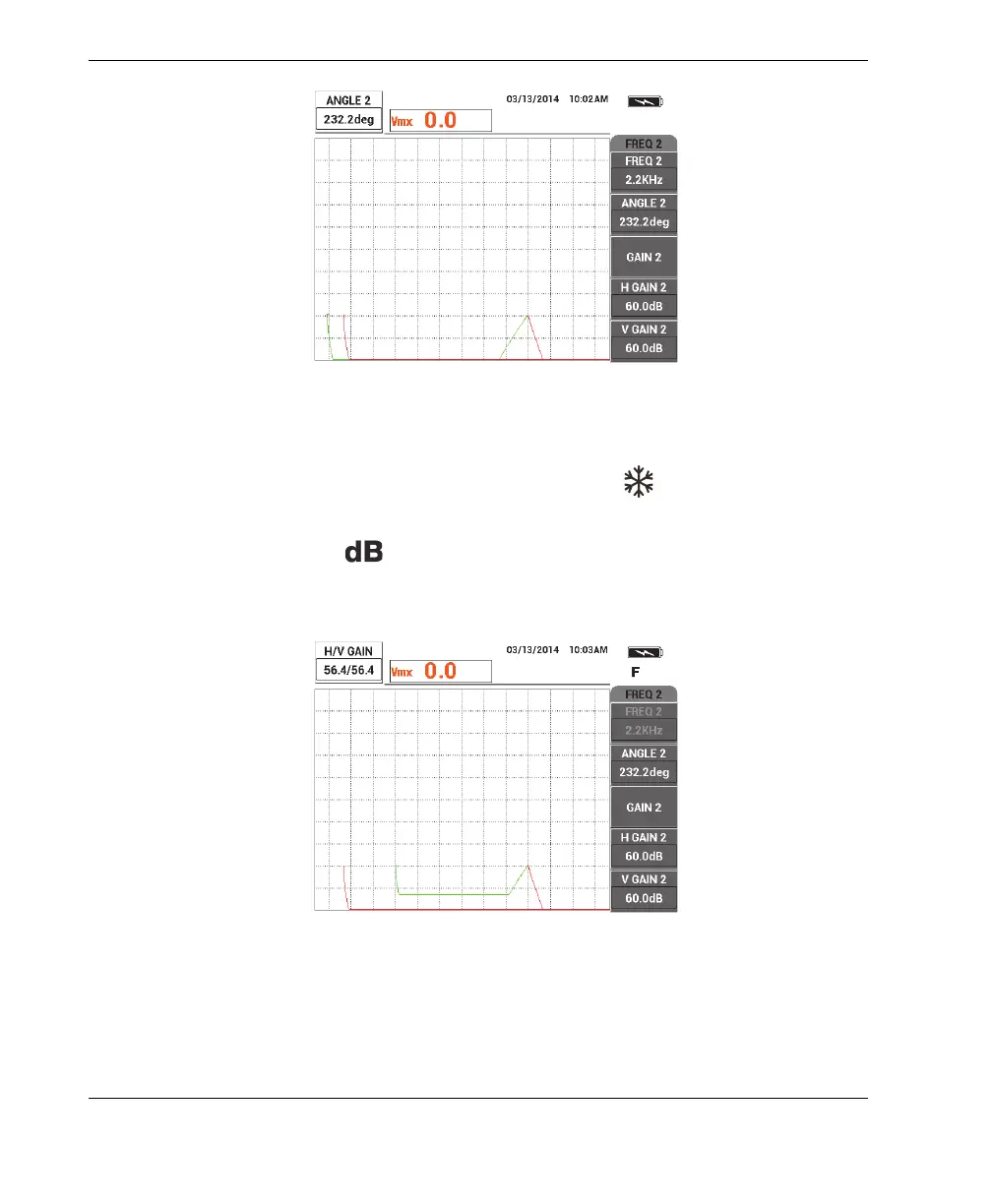

Figure 5‑119 Adjusting the ANGLE 2 value
7. While still holding the probe, press the FREEZE key ( ).
The probe and business cards can now be put aside.
8. Press the GAIN key ( ), and then adjust the amplitude of the frequency 1
signal so that it is exactly 6 divisions away from the null point (on the left side)
[see Figure 5-120 on page 206].
Figure 5‑120 Adjusting the amplitude of the frequency 1 signal
