DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 141

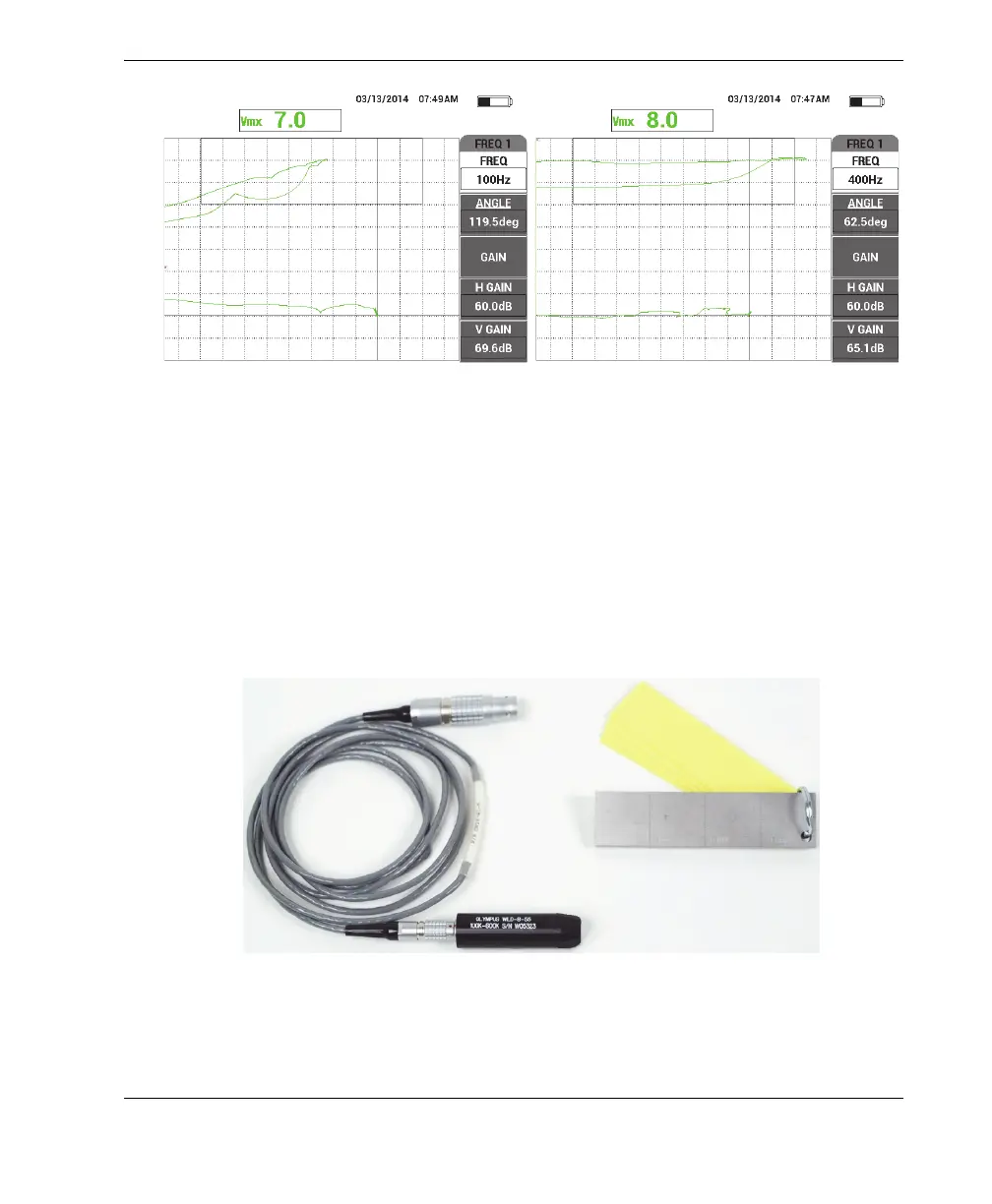

Figure 5‑29 Calibration with frequency too low (left) or too high (right)
5.1.4 Inspecting Welds on Ferromagnetic Materials — All NORTEC 600
Models
The procedure in this section is the easiest and most efficient way to perform a
general-purpose weld inspection on ferromagnetic material (such as carbon steel)
using the NORTEC 600.
Inspection materials are shown in Figure 5-30 on page 141.
Figure 5‑30 Materials—welds on ferromagnetic material
The following products are used in this procedure:
