DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 249

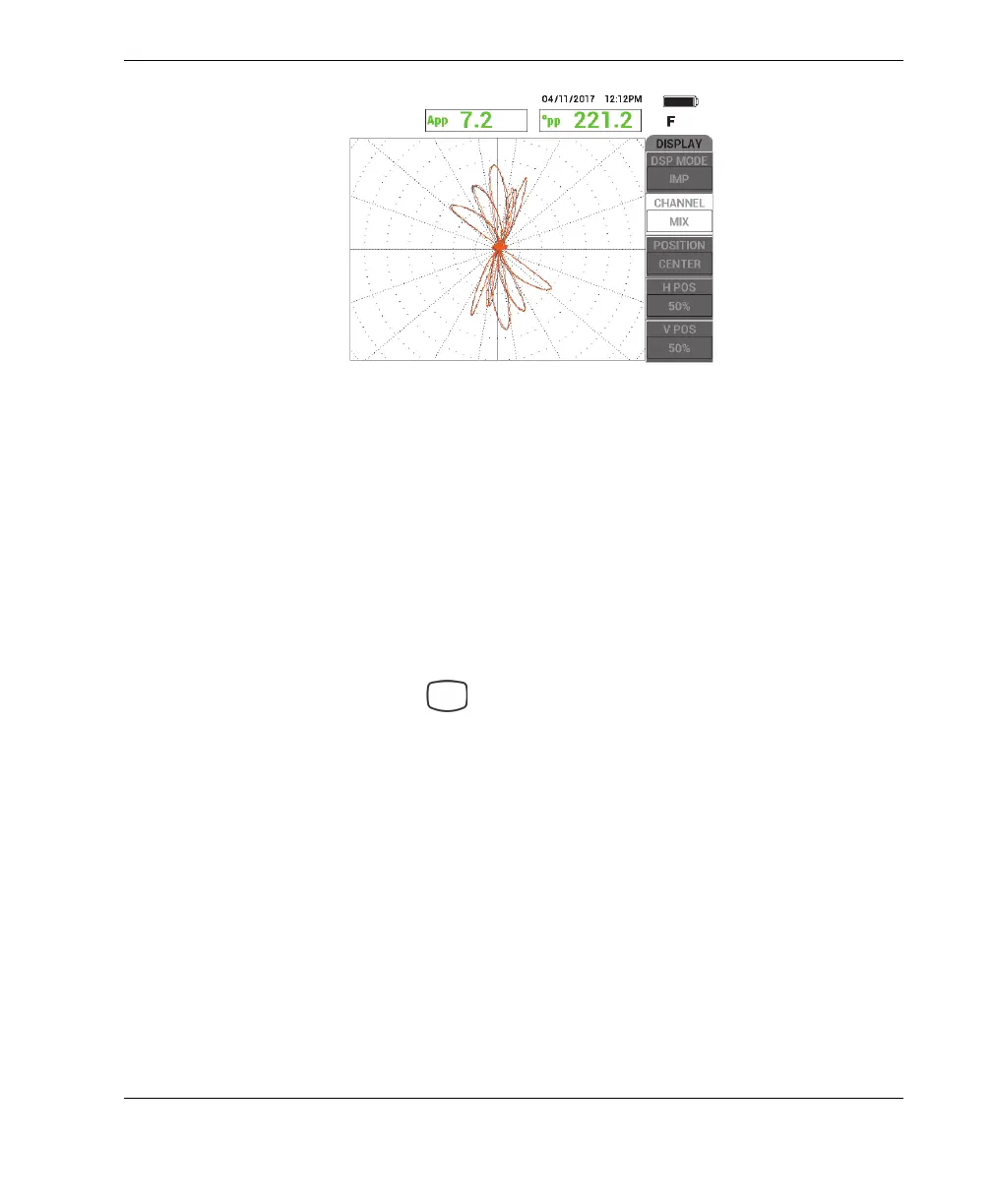

Figure 5‑179 Tube scan display with reference image (gray) and live signal (orange)
5.4.1.3 Using the ALL-IN-1 (Strip Chart) Display
The ALL‑IN‑1 function can be used with frequency 2 to create a “strip chart” type of
display that represents the tube inspection history. This section’s setup uses settings
from the previous section. Alternatively, the saved file can be recalled from memory.
To use the ALL-IN-1 display
1. Press DISP MODE (A key), and rotate the knob until ALL‑IN‑1 is displayed.
2. Press the DISP menu key ( ) twice to display the FRQ2 DSP menu (see
Figure 5-180 on page 250).
