DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 149

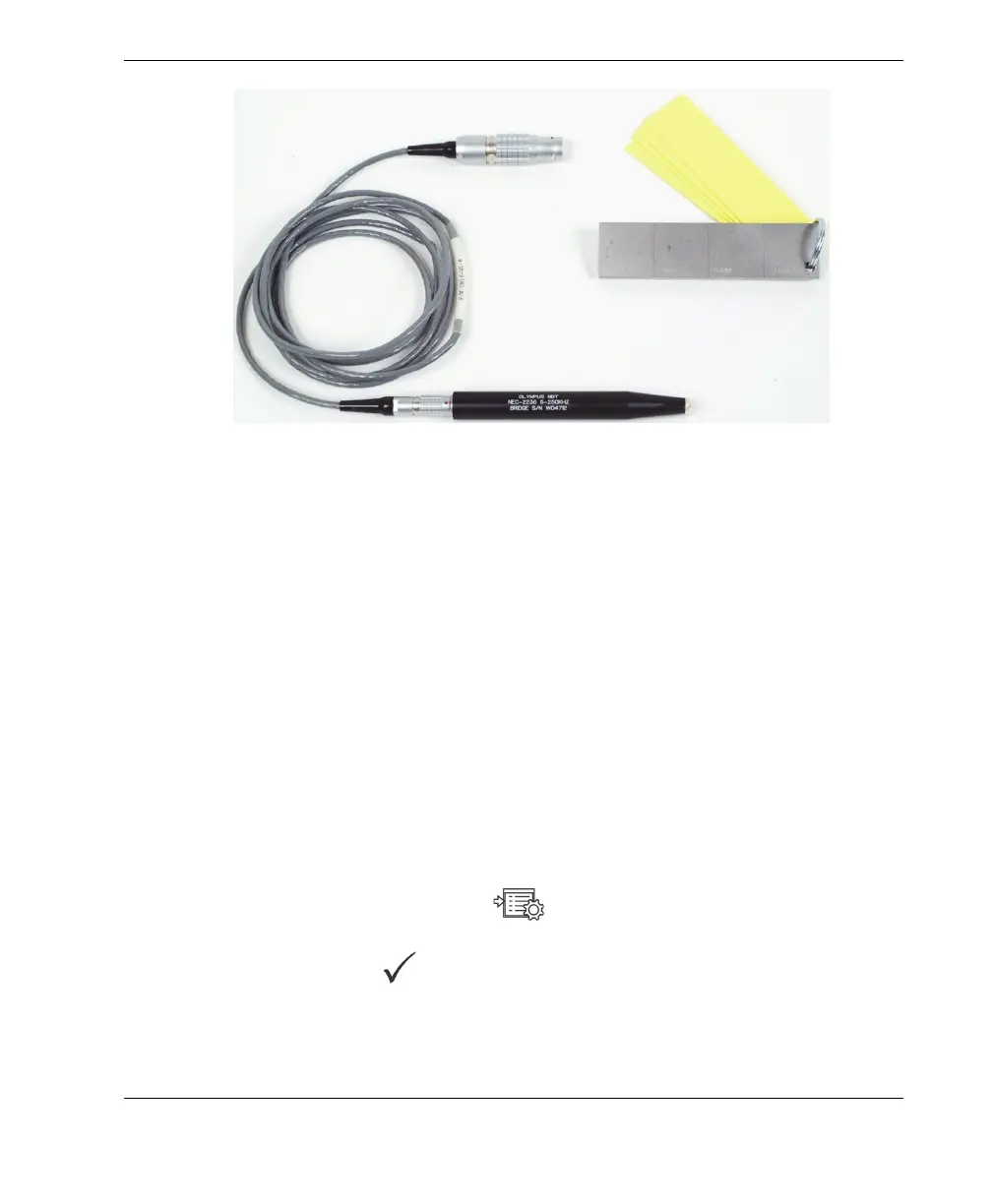

Figure 5‑40 Materials—paint thickness on ferromagnetic material
The following products are used in this procedure:
• Paint thickness probe; P/N: NEC-2236 5-250KHZ-2M-4L [U8629568]
• Cable: 1.83 m (6 ft) length, NORTEC 500, 600, 1000, and 2000 series instruments
(16 pin LEMO) to 4 pin LEMO for weld probe (4 pin LEMO). P/N: CN16-4L-6
[U8800276]
• Weld surface reference standard with certifications: steel with EDM notch depths
of 0.5 mm, 1.0 mm, and 2.0 mm (0.02 in, 0.04 in., and 0.08 in.); block overall
dimensions 25.4 mm × 101.6 mm × 6.4 mm (1 in. × 4 in. × 0.25 in.) with four
0.5 mm (0.0197 in.) nonconductive shims to simulate paint thickness; P/N: SRSM-
51020S-WLD [U8860571]
To set the initial NORTEC 600 configuration
1. Connect the probe and the cable to the PROBE connector on the NORTEC 600.
2. Press the ADV SETUP menu key ( ) once, and then select APPL SELECT
(A key) to open the application selection menu. Select Surface Cracks with the
knob, and then press to accept (see Figure 5-41 on page 150).
