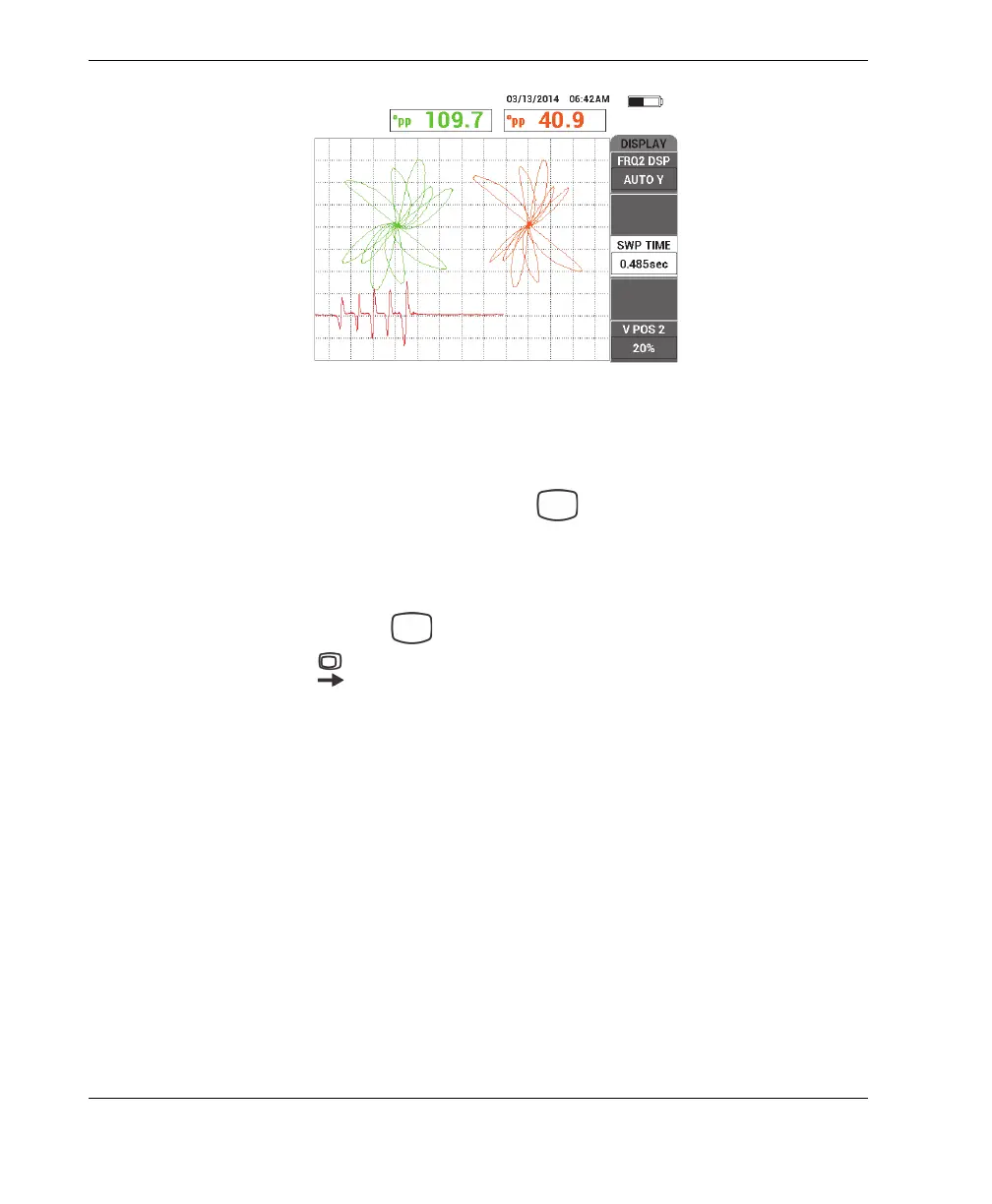

Figure 5‑150 The strip chart display
2. Depending on your requirements, switch to the MIX channel (alone) with the
WEB grid by pressing the DISP menu key ( ) repeatedly until the DISPLAY
page is shown and then setting the DSP MODE (A key) to IMP.
3. Set the CHANNEL (B key) to MIX, and then set the POSITION (C key) to
CENTER.
4. Press the DISP menu key ( ) again, set the GRID (D key) to WEB, press the
FULL NEXT key ( ) to toggle to the full-screen mode, and then scan the tube.
The web grid helps you quickly visualize the signal angle (see Figure 5-151 on
page 227).
