5.1.6 Measuring Conductivity and Nonconductive Coating Thickness —
NORTEC 600C, NORTEC 600S, and NORTEC 600D Models
The instrument function for measuring conductivity and nonconductive coatings can
only be activated by connecting a NORTEC conductivity probe to one of the following
NORTEC 600 models: 600C, 600S, and 600D.
The NORTEC 600 instrument automatically detects a PowerLink conductivity probe
(16-pin LEMO, 60 kHz, or 480 kHz) when it is connected to the instrument. With this
probe type, the instrument reconfigures the operating parameters to permit
conductivity measurements. In this operating mode, only the conductivity is
displayed. The eddy current signal is not displayed.
Inspection materials are shown in Figure 5-47 on page 154.

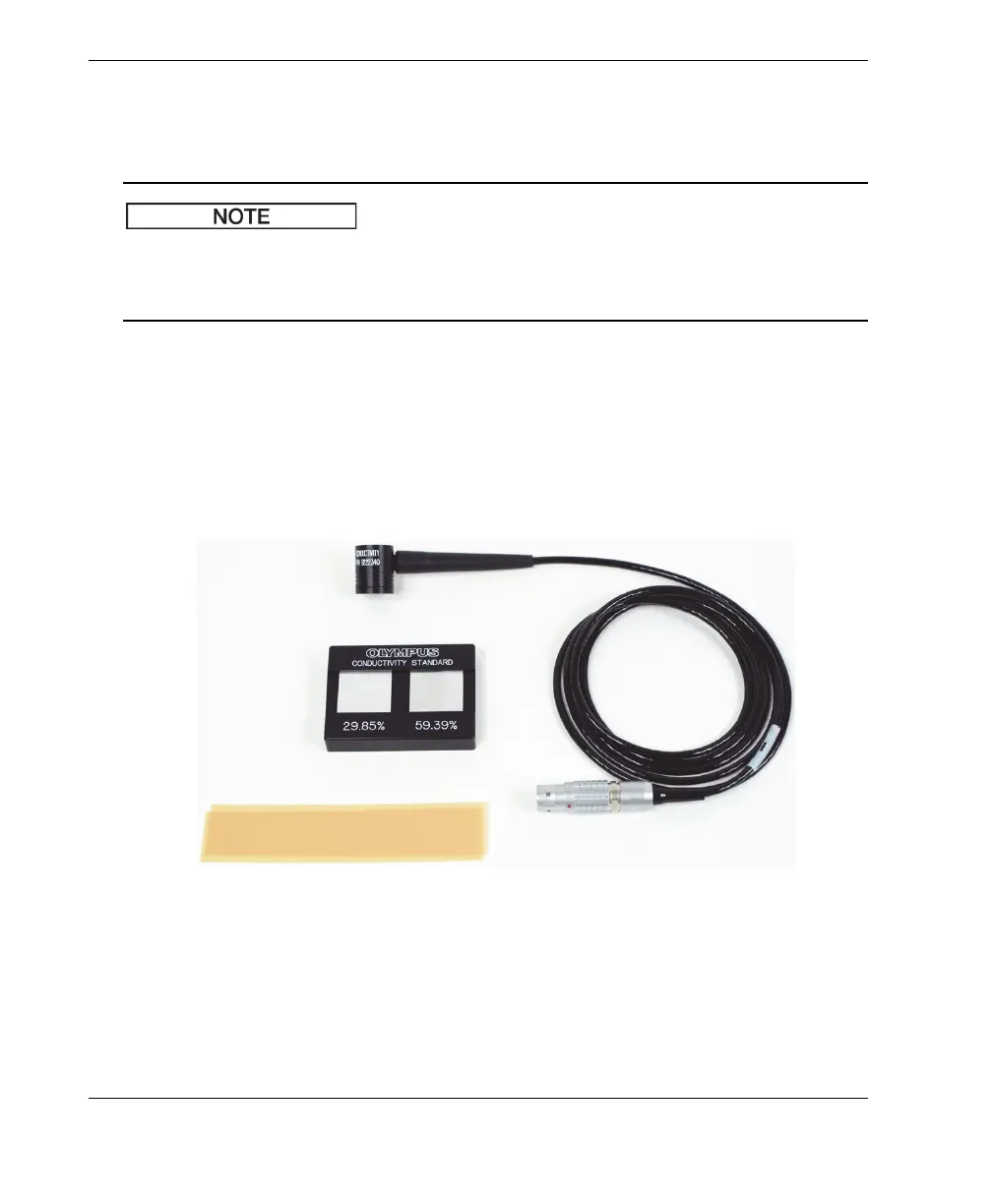

Figure 5‑47 Materials—conductivity and non‑conductive coating thickness
The following products are used in this procedure:
• Conductivity probe: 60 kHz, right-angle probe, 20 mm (0.750 in.) tip diameter,
25.4 mm (1.00 in.) length, 16-pin LEMO connector, Alarm LED included;
P/N: 9222340 [U8690027]
NOTE
