DMTA-10040-01EN, Rev. E, February 2018
Using the Instrument 197

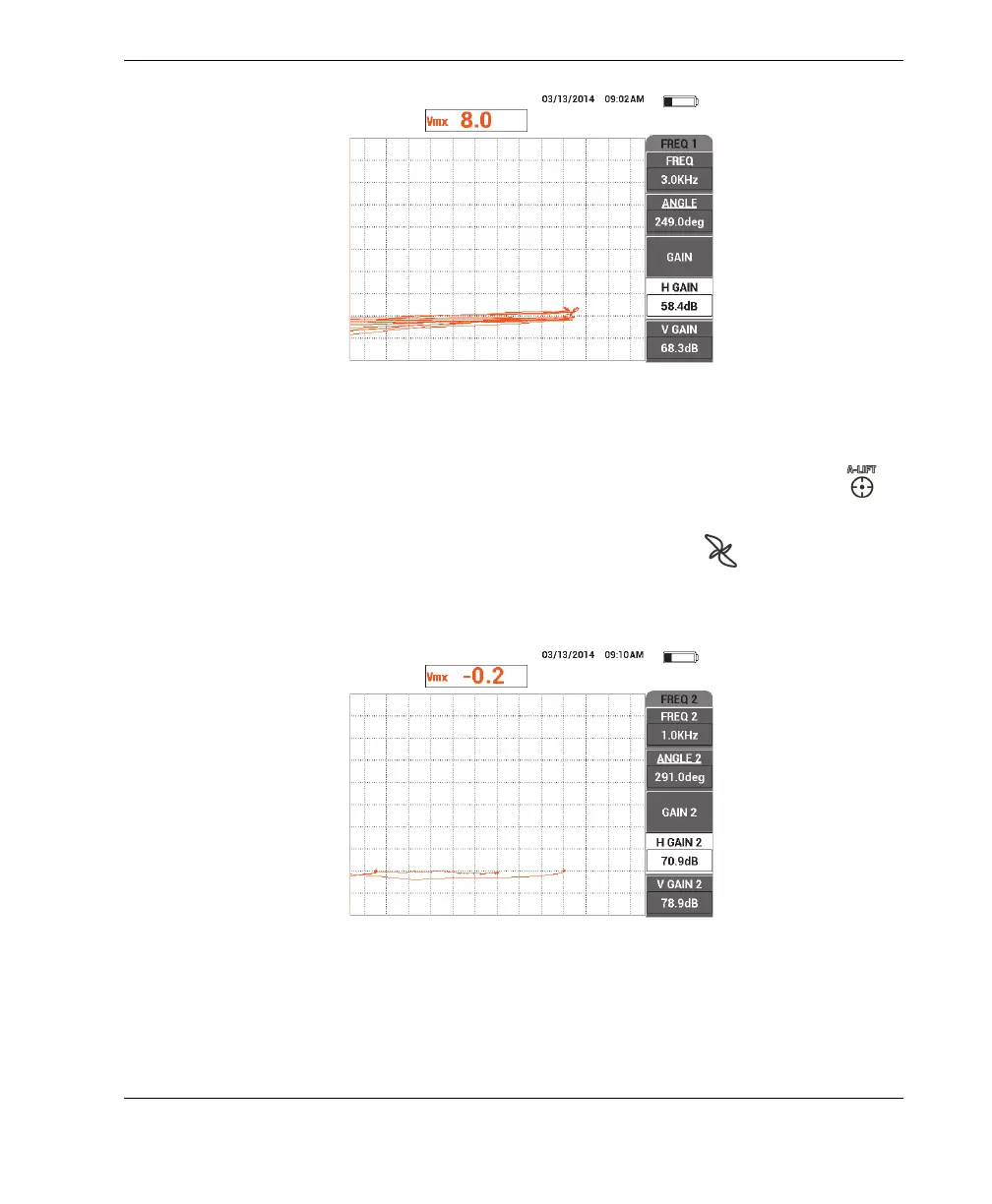

Figure 5‑107 Adjusting the H GAIN for frequency 1
14. Place the probe on position 1 again, and then press the A-LIFT NULL key ( ).
15. While firmly pressing the probe at position 2 on the standard, observe the MIX
signal point, and then press the MAIN FILTER menu key ( ) and decrease the
HGAIN2 (D key) until the MIX signal operating point does not extend more
than 3 divisions to the left of the null point (see Figure 5-108 on page 197).
Figure 5‑108 Adjusting the H GAIN 2 value
